2.6.3
Wiring Examples
The following illustrate how to connect power to single and dual power supplies.

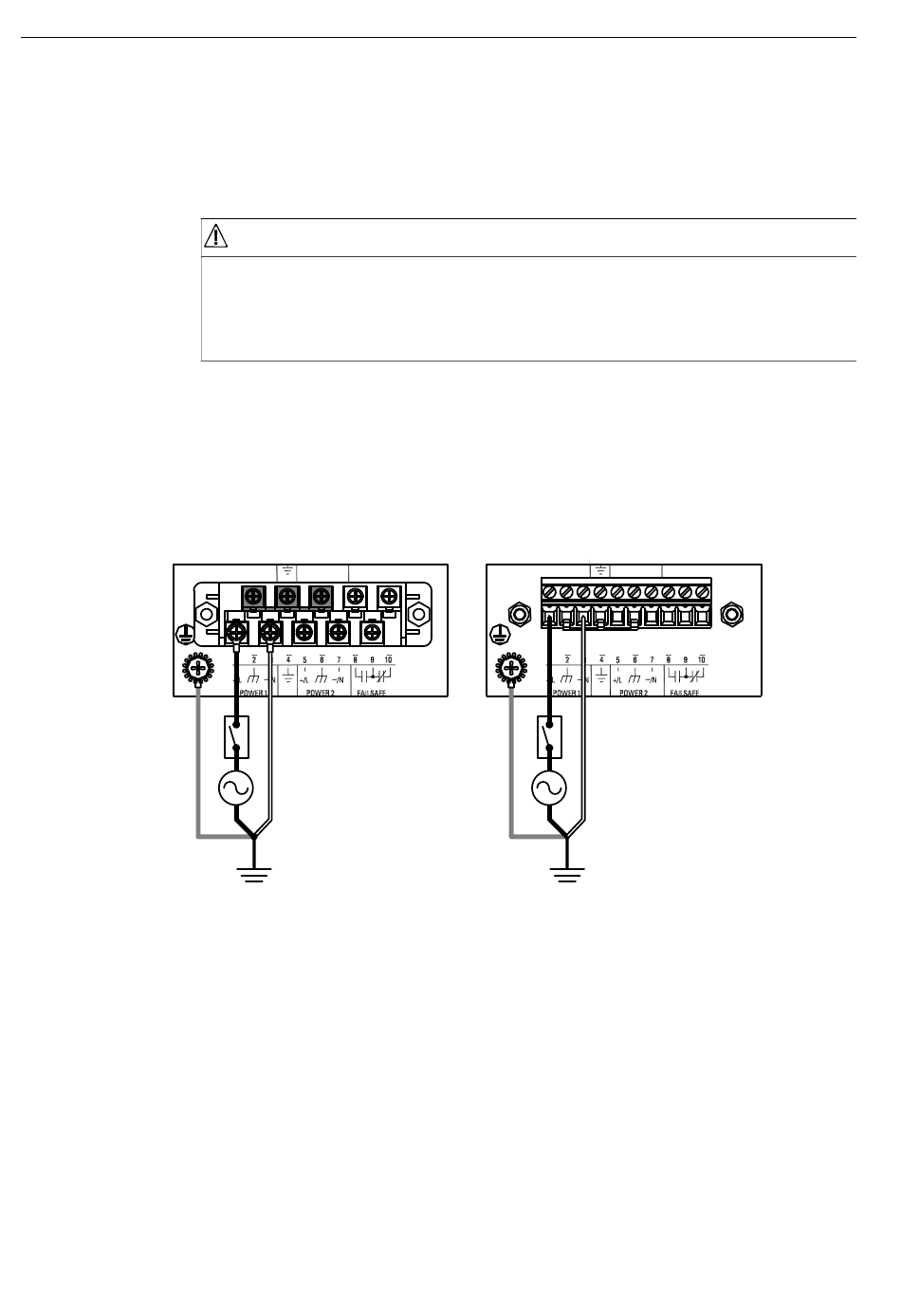

Figure 2.8
RUGGEDCOM RS416PF
Equipment Manual, 10/2023, C79000-G8976-1355-07
Connect the negative wire from the power source to terminal 7 (-/N) on the
terminal block.
If the external PoE power supply features a chassis ground connection, connect
the ground terminal on the power supply to terminal 4 on the terminal block.
DANGER
Electrocution hazard – risk of death, serious personal injury and/or damage
to the device
Make sure the supplied terminal block cover is always installed before the
device is powered.
Install the terminal block cover.
Single AC Power Supply
Installing Device
2.6.3 Wiring Examples
19
