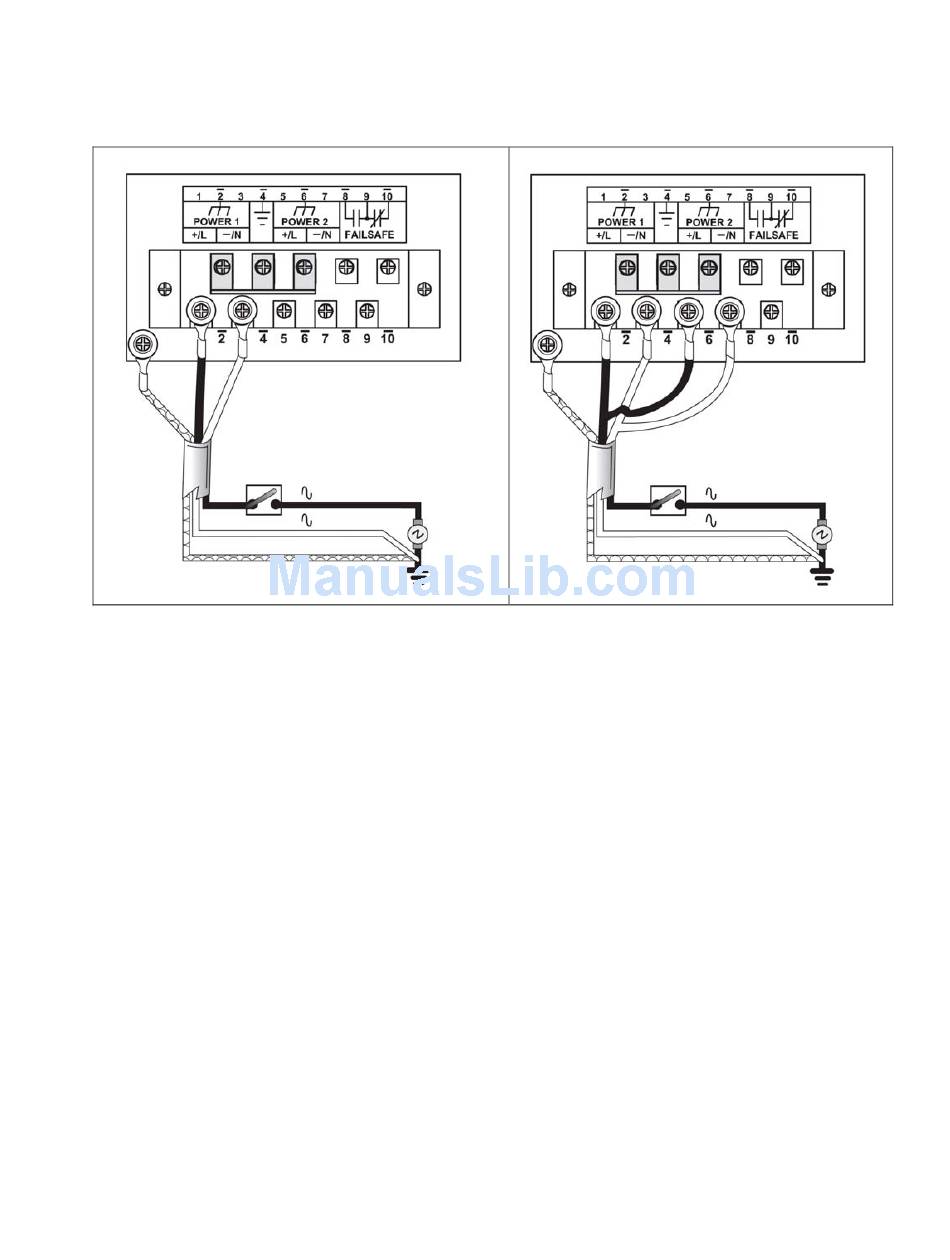

4.2.1 AC Power Supply Wiring Examples

NOTES:

1. 100-240VAC rated equipment: A 250VAC appropriately rated circuit breaker must be

installed within 3m of unit.

2. Equipment must be installed according to the applicable country wiring codes.

3. When equipped with two HI voltage power supplies, independent AC sources can be used

to power the product for greater redundancy.
