Novus LogBox LTE User Manual page 9

SCREEN

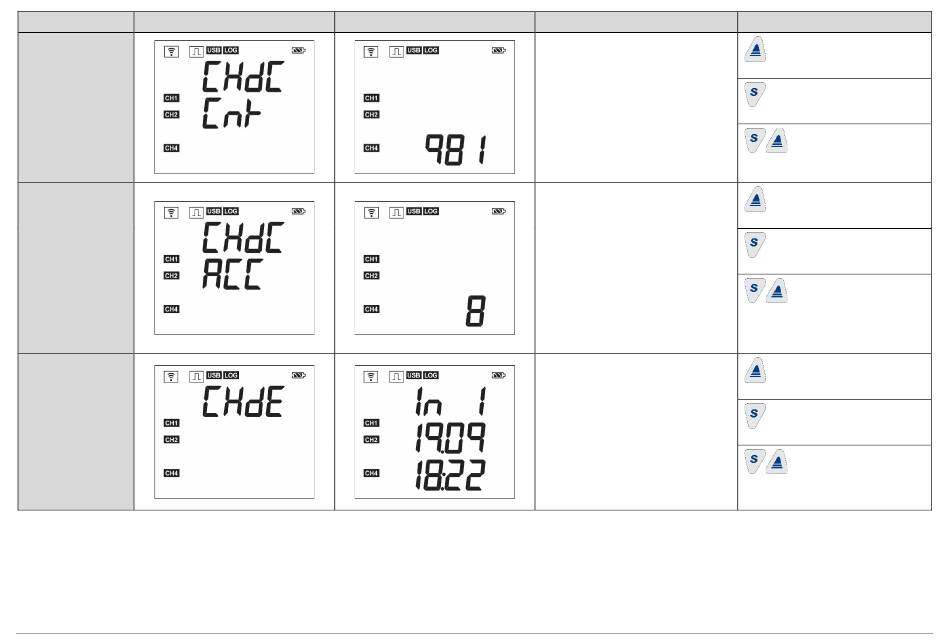

4) Digital Input
b) Pulse Count:
Count
5) Digital Input
c) Pulse Count:
Accumulator
6) Digital Input
d) Event Log or
Log Control
NOVUS PRODUTOS ELETRÔNICOS LTDA.
MNEMONIC INFORMATION
When enabled and set to Pulse Count mode
and then configured with Acquisition
Interval Counting (Application parameter /
Count function), it displays the registered
count within the configured log interval.
If it is not configured, this screen will not be
displayed.
Uses the third line of the display to display the
registered count.
When enabled and set to Pulse Count mode
and then configured with Volume since Last
Reset (Application parameter / Flow Rate
function) or with Accumulated Count Since
Last Reset (Application parameter / Count
function), displays the volume or count
accumulated since the last digital channel
reset.
If it is not configured, this screen will not be
displayed.
Uses the third line of the display to display the
registered count.
When enabled and set to Event Log or Log
Control modes, it displays the last event
detected at the digital input.
Line 1: Edge detected in the event:
0 → Falling edge
1 → Rising edge
Line 2: Day.Month of the event (if the 24-hour
format is selected); Month.Day of the event (if
the AM/PM format is selected).
Line 3: Hour:Minute of the event.
DESCRIPTION
Key held down or long touch: Informs
the maximum flow rate.
Key held down or long touch: Informs
the minimum flow rate.
minimum and maximum values reached by
each channel.
Key held down or long touch: No
action.
Key held down or long touch: No
action.
Key held down or long touch: No
action.
Key held down or long touch: No
action.
KEYS FUNCTION
Both keys held down: Clears the
Both keys held down: No action.
Both keys held down: No action.
9/75
