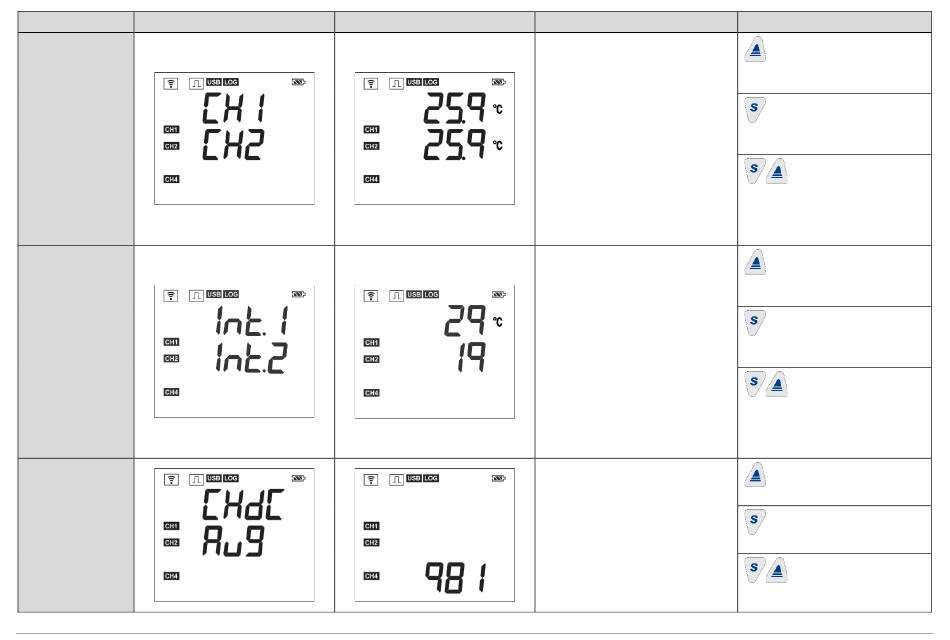

SCREEN
1) Analog inputs
2) Internal channels
3) Digital Input
a) Pulse Count:
Flow Rate
NOVUS PRODUTOS ELETRÔNICOS LTDA.
MNEMONIC INFORMATION
Displays the value of the analog channels and
allows you to view the maximums and
minimums reached by each channel.
Line 1: Value of analog channel 1.
Line 2: Value of analog channel 2.
Displays the value of the internal channels
and allows you to view the maximums and
minimums reached by each channel.
Line 1: Value of internal channel 1.
Line 2: Value of internal channel 2.
When enabled and set to Pulse Count mode
and then configured with the Average Flow
by Acquisition
parameter / Flow Rate function), it displays
the average flow registered within the
configured log interval.
If it is not configured, this screen will not be
displayed.
Use the third line of the display to display the
registered flow rate.
DESCRIPTION
Key held down or long touch: Informs
the maximum value reached in each analog
channel.
Key held down or long touch: Informs
the minimum value reached in each analog
channel.
minimum and maximum values reached by
each analog channel.
Displays the Clr message when the
operation is completed.
Key held down or long touch: Informs
the maximum value reached in each analog
channel.
Key held down or long touch: Informs
the minimum value reached in each analog
channel.
minimum and maximum values reached by
each analog channel.
Displays the Clr message when the
operation is completed.
Key held down or long touch: Informs
the maximum flow rate.
Interval (Application
Key held down or long touch: Informs
the minimum flow rate.
minimum and maximum values reached by
each channel.
KEYS FUNCTION
Both keys held down: Clears the
Both keys held down: Clears the
Both keys held down: Clears the
