Novus LogBox LTE User Manual page 12

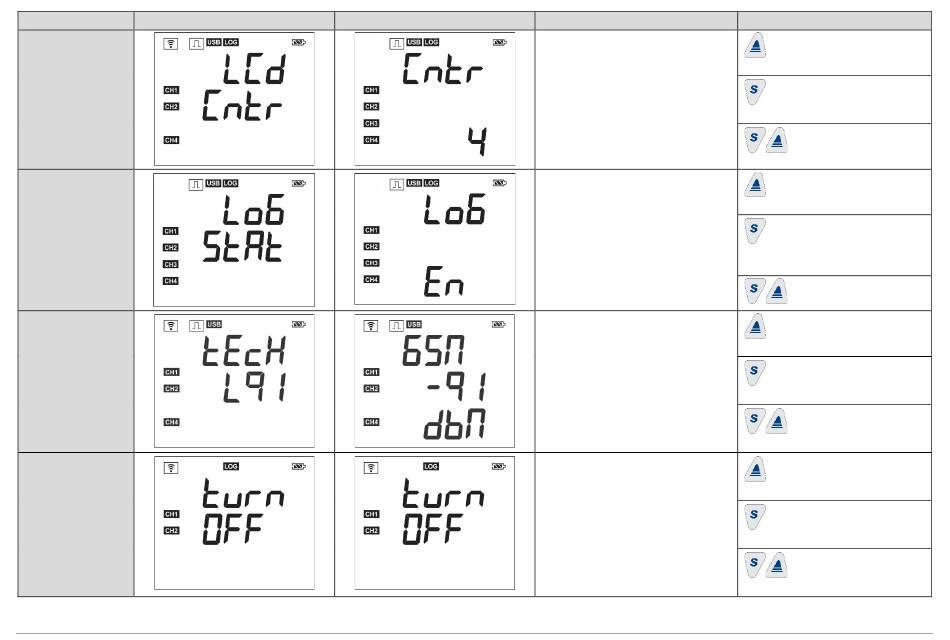

SCREEN
13) Display contrast
adjustment
14) Log status
15) Signal strength
16) Turn off the
device
NOVUS PRODUTOS ELETRÔNICOS LTDA.
MNEMONIC INFORMATION
Displays the contrast level of the display and
allows you to adjust it.
Line 3: Current contrast value. Can be
adjusted from 0 to 7.
Displays the status of logs and allows them to
be started and/or paused if the device is
configured to allow start and/or end via
keyboard.
En → The logs are enabled.
Dis → The logs are disabled.
Displays the signal strength received by the
mobile network.
The mnemonics of this screen can change,
according to the technology selected: GSM,
Cat.M1 or NB-IoT.
It allows you to turn off the device while it is
operating on the internal power backup
batteries.
To turn it on again, it is necessary to power it
via the USB interface or an external power
source.
Table 1 – Navigation screens
DESCRIPTION
Key held down or long touch:
Increases contrast (Maximum: 7).
Key held down or long touch:
Decreases contrast (Minimum: 0).
Key held down or long touch: Initiates
logs if By Keyboard start mode is enabled.
Key held down or long touch: Pause
records if the By Keyboard end mode is
enabled.
Key held down or long touch: No
action.
Key held down or long touch: No
action.
Key held down or long touch: No
action.
Key held down or long touch: No
action.
the device.
KEYS FUNCTION
Both keys held down: No action.
Both keys held down: No action.
Both keys held down: No action.
Both keys held down: Turn off
12/75
