Upper Limit: If the sensor configured for the channel is a temperature or internal diagnostic sensor, the upper limit will be filled in by the
•
software with the upper limit of the sensor. If the sensor configured for the channel is a linear sensor type (mV, V, or mA), it will be necessary to
fill in the desired value to represent the maximum value of the chosen sensor.
Offset: Allows you to make small adjustments to the readings of each channel. The configured Offset will be added to all readings taken on the
•
configured channel.
12.3.3.1

CUSTOM CALIBRATION

The icon opens the custom calibration screen, which allows you to adjust up to 10 measurement points for each channel. When a custom
calibration has been configured, the minimum number of adjustment points is 2 points.
Measured: Displays the value read from the device for which a correction is desired. It can be obtained by clicking on the Read Channel
•
button or be filled in manually.
Desired: Displays the value desired for the value measured by the device. It must be filled in manually.
•
Read Channel: Allows you to obtain the values of the device during a customized calibration.
•
Add: Allows to insert the Measured and Desired parameters in the custom calibration table.
•
Modify: Allows you to modify the Measured and Desired parameters in the custom calibration table.
•
Organize : Allows you to order the customized calibration table.
•
Delete : Allows you to delete the selected row in the custom calibration table.
•
Delete All : Allows you to clear the entire custom calibration table.
•
Apply: Allows you to apply the custom calibration for the channel being configured.
•
Cancel: Allows you to cancel the custom calibration operation.
•
NOVUS AUTOMATION

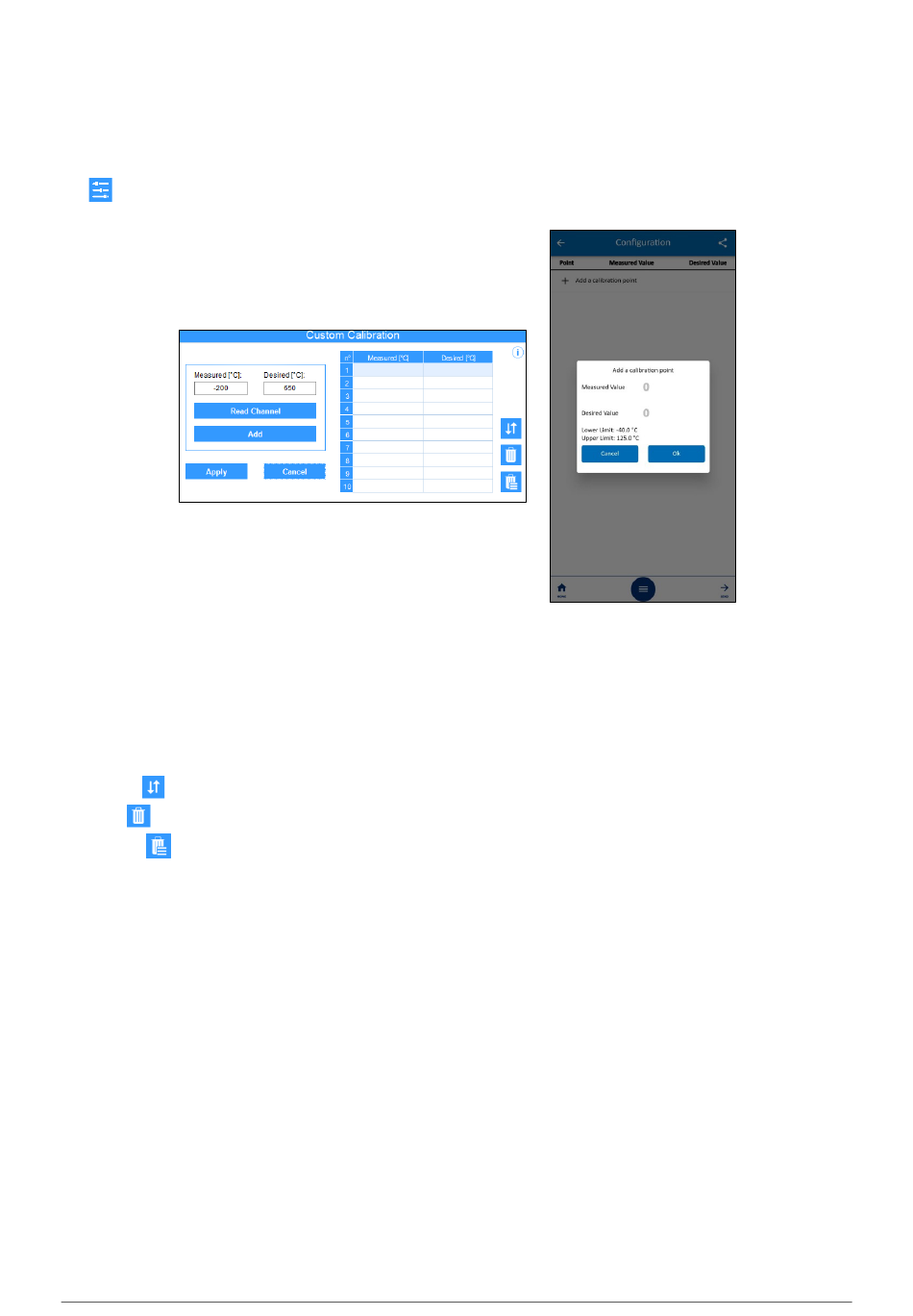

Figure 17 – Custom calibration
