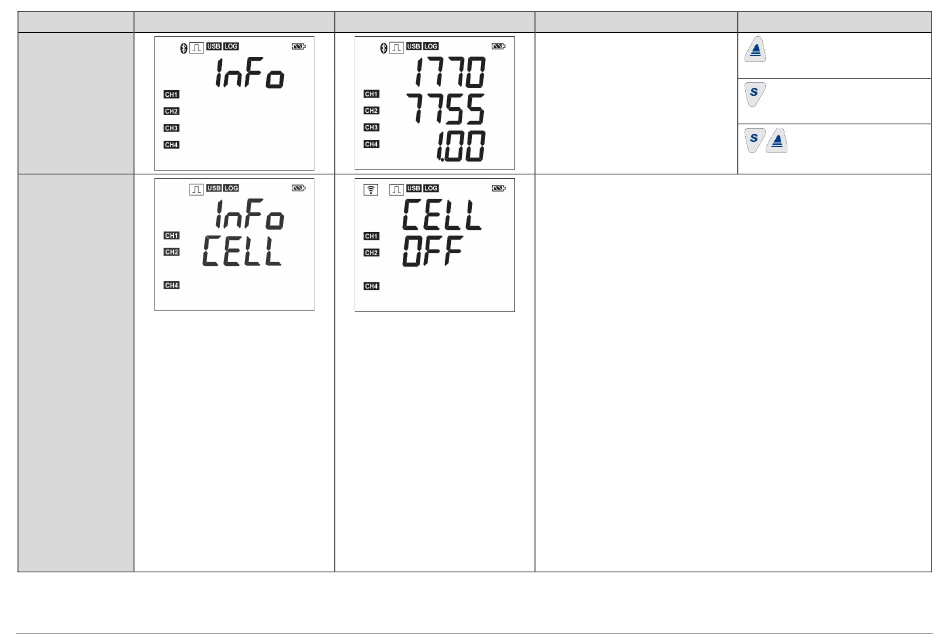

SCREEN
11) Device
information
12) Mobile connection
information
NOVUS PRODUTOS ELETRÔNICOS LTDA.
MNEMONIC
INFORMATION
Displays information about the device.
Line 1 and 2: Serial number.
Line 3: Firmware version.
Displays the status of the mobile network connection, showing how far the device has been able to
reach. The following messages may be displayed:
First messages that may occur:
Cell Off or Pwr Save: The cellular module is switched off. This can happen if the device is
•
only being powered via the USB interface, if the MQTT and SMS services are disabled or if the
power-saving algorithm is being applied.
SIM Err: SIM card error. It may occur in case of SIM card failures (missing SIM card, burned SIM
•
card, PIN error).
Reg Wait: The cellular module is connecting to the network. It may occur for a few moments
•
when turning on the device.
Try Att: The module is trying to authenticate itself on the mobile network. For the operation to be
•
completed, the module must be registered, the APN must be properly configured, and the inserted
SIM card must have mobile data available.
Err Init: Connection error with the network or cellular module. This may occur if the device is
•
unable to authenticate with a cellular network or during the following situations: Weak signal, lack of
network available in the region by the operator used, access denied by the operator or some
internal problem. To recover from the problem, the device will restart the connection process.
Messages that may occur if MQTT services are enabled:
•
MQTT Err: Failure to obtain MQTT service. It may occur due to lack of data plan or incorrect
configuration of Server Address/Port/TLS Security.
MQTT Join: MQTT is connecting. It may occur for a few moments when connecting to the MQTT
•
Broker.
•
MQTT On: Connected to the MQTT Broker. The connection was successful.
Messages that may occur if only SMS services are enabled:
SMS Off: Failure to start SMS service. It may occur for a few moments when starting the SMS
•
service.
SMS On: The SMS service is enabled. Only occurs if SMS services are enabled and have been
•
successfully initialized. It is not possible to validate if the operator is accepting the sending and
receiving of SMS or if there is an SMS plan enabled.
DESCRIPTION
Key held down or long touch: No
action.
Key held down or long touch: No
action.
KEYS FUNCTION
Both keys held down: No action.
11/75
