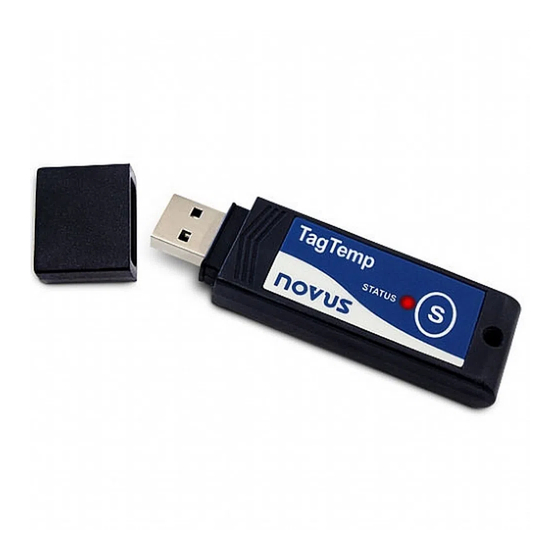

TagTemp-S
TEMPERATURE DATA LOGGER - INSTRUCTION MANUAL V1.0x
1
INTRODUCTION
TagTemp-S is an electronic temperature recorder. The temperature
measured by the sensor is recorded in equipment internal memory.
This data is transferred through a smartphone equipped with an
embedded NFC interface or by an NFC interface connected to a
computer through an USB port (both not included).
LogChart-NFC application for ANDROID™ and the Nx Software for
Windows® are the tools used to configure the operating mode,
transfer and display data. The acquisition start and end parameters,
logging interval, setpoint alarms and other parameters can be easily
defined using these applications.
The operating manual and Nx Software can be downloaded from
the manufacturer's website. The ANDROID™ LogChart-NFC app
can be downloaded from Google Play Store.
2
MECHANICAL INSTALLATION
TagTemp-S can be installed using a double-sided adhesive tape on
the back of the device, taking care not to stick it over the
identification tag. Another way is to use the blister hole to attach the
transmitter.
NOVUS AUTOMATION
3
TECHNICAL FEATURES
Operating
-30 °C to 60 °C
temperature
Storage
From -30 °C to 65 °C.
temperature
Measuring range
Temperature: -30.0 °C to +60.0 °C.
±1 °C max. over the full measuring range.
Accuracy of
Note: You can correct the measurement
measurement
error in the OFFSET parameter using the
configuration software.
Measurement
Temperature: 0.1 °C / 0.1 °F
resolution
Memory Capacity
4020 registers.
1 minute min.
Interval between
Measurements
4 hours max. (240 minutes).
3.0 V lithium battery (CR2032), built-in,
Power Supply
non-replaceable.
Battery life
Above 2 years at a 5-minute acquisition
(estimated)
interval.
Dimensions
37 x 57 x 8 mm
RF Interface
ISO 15693 (NFC-V) compatible.
Data transfer time
Approx. 20 seconds (depends on the
between register
smartphone processing speed).
and smartphone
ANDROID™ version: 4.0 or above.
LogChart-NFC
Application
Languages: Portuguese or English.
USB
NFC interface for
compatible
the computer
Windows®.
Case
Polyvinyl Chloride (PVC)
All electronics are protected by the
Degree of protection
housing. IP65 compatible.
Certification
CE
to
NFC
interface
(optional),
with
Nx
Software
for
1/11
Advertisement
Table of Contents
Related Manuals for Novus TagTemp-Stick
Summary of Contents for Novus TagTemp-Stick
- Page 1 ANDROID™ version: 4.0 or above. LogChart-NFC Application Languages: Portuguese or English. interface (optional), NFC interface for compatible with Software the computer Windows®. Case Polyvinyl Chloride (PVC) All electronics are protected by the Degree of protection housing. IP65 compatible. Certification NOVUS AUTOMATION 1/11...
-
Page 2: Operation
NFC interface of the smartphone and, therefore, protective measure to prevent accidental touches of the button from must be enabled in it. discharging the device's battery. This button is also used to remove the device from low-power mode (see Device Power Options section). NOVUS AUTOMATION 2/11... -
Page 3: Device Status Screen
Indicates some specific information of TagTemp-S. • Device tag: Identification name chosen by the user. Model: TagTemp-S. Serial Number: Serial number engraved factory. UID: Unique Identification Number. Useful for tracking applications. Firmware version: Device firmware version number. NOVUS AUTOMATION 3/11... -
Page 4: Password Configuration Screen
Use Fahrenheit degrees: when this option is enabled, the temperature unit of Celsius (default) is changed to Fahrenheit. • Device power options: the device can be placed in idle mode. NOVUS AUTOMATION 4/11... -
Page 5: Event Screen
Total logs within occurrences: Number of acquisitions below the minimum range limit. Fig. 10 – Low Temperature Excursion display Average temperature within occurrences: Average value of temperatures below the minimum limit. Fig. 11 – High excursions Message "No occurrences" NOVUS AUTOMATION 5/11... - Page 6 NOVUS Cloud (you need to have an account). To include the geographical location of the data log in NOVUS Cloud, the GPS must be activated on the smartphone. The way in which the data will be shared is chosen in "Sharing Options"...
- Page 7 TagTemp-S • NOVUS Cloud Authentication: Hire an account in the NOVUS 3. Chart range : Using this option allows you to select the Cloud to store the TagTemp-S data. Enter your login credentials range of values that will be displayed in the chart. This range can in the Username and Password fields to send the data.
- Page 8 Mode: Displays the registration mode. The instantaneous The reading of the device is done by choosing the option "Read the temperature is stored at each acquisition. Device". If the machine is logging data, the following message will be displayed. NOVUS AUTOMATION 8/11...
- Page 9 See the following image. Save to File: This option allows you to save the configuration settings made to a file, so it can be reused to configure other devices. NOVUS AUTOMATION 9/11...
- Page 10 Table of values: Shows the values acquired in table format, indicating the moment of the measurement with its respective value. Viewing Collected Data After the transfer of the records, the data collected are presented graphically, as shown in the images below. NOVUS AUTOMATION 10/11...
-
Page 11: Warranty
6. Zoom - 7. Chart Properties 8. Reports and Data Export 9. Formulas 10. Sending data to NOVUS Cloud 11. Exit 6.5 Exporting and creating reports with the data collected Using the NX Software, you can export the collected data to various file formats or create reports from the available templates.
