3.
DISPLAY AND NAVIGATION
3.1
DISPLAY INFORMATION
LogBox LTE has a 3-line 4 ½ digit numeric LCD display. It allows you to view the current value of all enabled channels as well as their minimum
and maximum values. Simultaneously, it is possible to view the current value of up to 2 analog channels or the current value of the digital input.
In addition to channel information, LogBox LTE has 14 screens and 24 symbols.
●
: Indicates the status of the mobile network connection. When off, it indicates that the mobile interface is not operating or is not connected
to the network. When lit, indicates that the device is registered. If the mobile data is enabled, it indicates that the connection was successful.
●
: When the digital channel is disabled, it remains off. When set to Pulse Count mode, it remains on. When set to Event Log or Log
Control modes, it remains lit, flashing when an event is detected at the digital input.
●
: Turns on when the USB cable is connected. Turns off when the USB cable is disconnected.
●
: Remains lit from the moment the device logs the first log until the moment it stops registering. When set to Daily mode, which should
start and end daily at a predetermined time, it will remain lit during the configured time. It will flash while registering data, turn off at the time of a
log and then restart.
●
: Turns on and stays on when entering an alarm condition. Turns off when a new configuration is received or the alarm status is cleared.
Indicates that, at some point, an alarm was triggered.
●
,
,
,
: Turns on while the alarm conditions of the corresponding channels are met:
○ 1 → Any alarm configured for analog channel 1.
○ 2 → Any alarm configured for analog channel 2.
○ 3 → Any alarm configured for internal channels.
○ 4 → Any alarm configured for the digital channel.
When exiting the alarm condition, the flag will be turned off.
●
: Indicates the battery voltage level. The symbol will be refreshed in the HMI update interval.
: Battery level over 75 %.
o
: Battery level over 50 %.
o
: Battery level over 25 %.
o
: Battery level below 25 %.
o
●
: Turns on while information on the Maximum values reached in each channel is being viewed on the display.
●
: Flashes to inform the reception of a valid data packet from one of the available communication interfaces.
●
,
,
: Indicates which channels are enabled.
: Turns on while information on the Minimum values reached in each channel is being viewed on the display.
●
●
,
: If the channel unit is set to °F or °C, one of the symbols will turn on when the channel is displayed. Otherwise, no unit symbol will be
displayed.
●
: If the clock is set to 12-hour format, the PM symbol will turn on when the clock is displayed and the time is greater than 1 pm.
NOVUS AUTOMATION

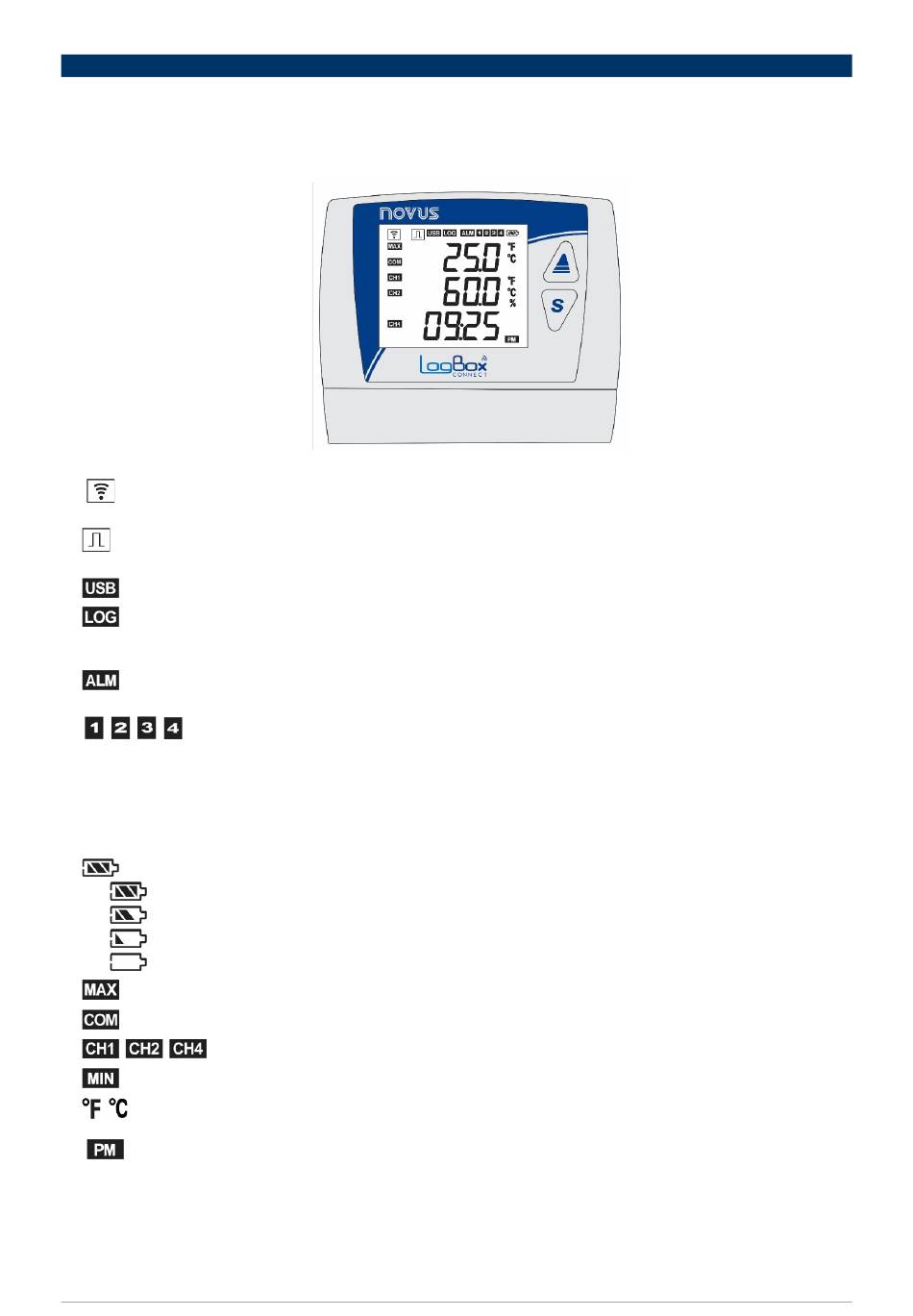

Figure 1 –
Display information
6/75
