NCR P1532 Kit Instructions

Mount for black c730
Hide thumbs Also See for P1532:

Advertisement

Quick Links

Download this manual
KIT  INSTRUCTIONS

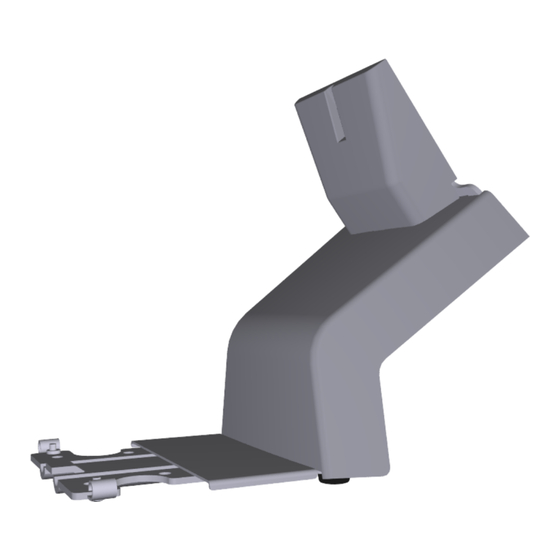

P1532 Mount for Black C730
Release 1.0
5934–K310
Issue A

Advertisement

loading
Need help?

Need help?

Do you have a question about the P1532 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NCR P1532

Summary of Contents for NCR P1532

  • Page 1 KIT  INSTRUCTIONS P1532 Mount for Black C730 Release 1.0 5934–K310 Issue A...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.

  • Page 3: Revision Record

    Revision Record Issue Date Remarks Apr 2016 First Issue...
  • Page 4 P1532 Mount for Black C730 Introduction This kit provides a mount for a black C730 customer display when integrated to the P1532 POS (7734).

  • Page 5: Installation Procedure

    P1532 Mount for Black C730 Installation Procedure 1. Loosen the screw (1). 2. Remove the Back Connector Cover.
  • Page 6 P1532 Mount for Black C730 3. Remove the screws (2) and rubber foot (2). Remove the Stand Cover. 4. Attach the black C730 customer display to the stand. Tighten the screws (4).
  • Page 7 P1532 Mount for Black C730 5. Remove the cable clamps (2). 6. Plug in the DVI and the 12 V Powered USB cables into the dedicated ports.
  • Page 8 P1532 Mount for Black C730 7. Route the cables under the stand and into the cable clamps. Secure with screws (2). 8. Replace the Stand Cover and secure with screws (2). 9. Replace the Back Connector Cover and secure with screw (1).
  • Page 9 P1532 Mount for Black C730 11. Route the cables under the stand and up through the CableLock™ Cover. 12. Route the cables into the cable clamps. Install the expansion blank plate and cable clamps (2) and secure with screws (2).
  • Page 10 P1532 Mount for Black C730 Note: If the POS includes an expansion, install the cable clamps under the expansion and secure with screws (2). 13. Close and secure the CableLock™ Cover with the thumbscrew. 14. Hook the stand mount onto the bottom of the POS stand and secure with screws (4).
  • Page 11 P1532 Mount for Black C730 15. Connect the cables to the HDMI and 12 V Powered USB ports. Note: Ensure that the USB cables do not hang loose. Adjust the cables into the cable clamps as needed.
