USER GUIDE
NCR P1532 POS ( 7734 )
Release 1.0
BCC5–0000–5062
Issue C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1532 and is the answer not in the manual?

Questions and answers

Related Manuals for NCR P1532

Summary of Contents for NCR P1532

  • Page 1 USER GUIDE NCR P1532 POS ( 7734 ) Release 1.0 BCC5–0000–5062 Issue C...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
  • Page 3 Audience This publication is written for end users, hardware installer/service personnel, system integrators, and field engineers. Notice: This document is NCR proprietary information and is not to be disclosed or reproduced without consent. Safety Requirements The NCR P1532 POS conforms to all applicable legal requirements. To view the...
  • Page 4 Warning: DO NOT connect or disconnect any serial peripherals while the terminal is connected to AC power. This can result in system or printer damage. Grounding Instructions In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1: Product Overview Introduction P1532 Base Models Features and Benefits Optional Features and Benefits Optional Add-On Accessories Base Memory Options Storage Options Display Options Bezel Options Right Side Features Mounting Configurations Customer Display Options Expansion Options 2D Scanner Module Option...
  • Page 6 Connecting the Peripheral Cables Cable Routing Connecting AC Power Disconnecting the Power Cable Connecting to a Network Starting Up the P1532 Terminal Identifying the MAC Address Using External Connectors RJ12 Serial Port RJ45 Serial Port USB 3.0 Compliant Ports Cash Drawer (CD) Port...

  • Page 7: Chapter 1: Product Overview

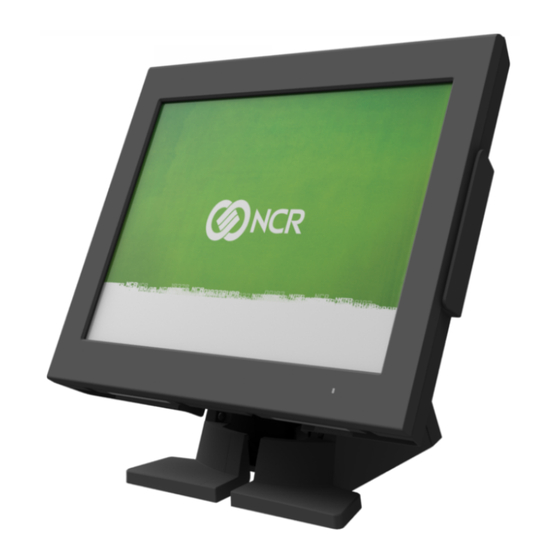

    Chapter 1: Introduction The NCR P1532 is a Point–of–Sale (POS) terminal designed for the restaurant and food service environment. The terminal utilizes a next generation Intel® Celeron™ Processor N3060 (Dual core, 2.48 GHz). The highly efficient Celeron processor offers great performance, but with lower power consumption for a more reliable design.

  • Page 8: P1532 Base Models

    P1532 Base Model Lead Unit PID for Resistive Touch BIO 7734–0902–8800 P1532 Base Model Lead Unit PID for Resistive Touch 2n1 Sign–In 7734–3900–8800 P1532 15" Surface Capacitive Touch POS Lead Unit, Quad, Configurable 7734–3901–8800 P1532 Base Model Lead Unit PID for SCAP Touch BIO 7734–3902–8800 P1532 Base Model Lead Unit PID for SCAP Touch 2n1 Sign–In...

  • Page 9: Features And Benefits

    (Dual core, 2.48 GHz). Dual–Core Technology Integrates two complete execution cores in a single processor providing advancements in simultaneous computing. NCR Countertop Enclosure Fully integrated, low-profile, water, and tamper resistant housing for high functional retail interaction. CableLock™ System Cable management system that uses a cable door to secure cable connections for better reliability.
  • Page 10 The fanless configuration increases reliability by preventing forced air through the unit, thereby reducing contaminants in the system. The P1532 is configured as a silent, thin-client, fanless, solid-state terminal for maximum reliability. Variable Position Tilt-Stand with Power...

  • Page 11: Optional Features And Benefits

    Features Optional Features and Benefits Features Benefits Integrated MSR Provides a 3-Track, Encrypting MSR. Biometrics Fingerprint Reader Offers an Integrated Digital Persona 4500 optical, 512 dpi resolution fingerprint reader for employee login and security. 2–in–1 Dallas/Addimat Sign–In  Module Offers an Integrated 2-in-1 waiter key that incorporates the leading waiter keys Dallas and Addimat in one design.

  • Page 12: Base Memory Options

    Features Base Memory Options Storage Options Display  Options...

  • Page 13: Bezel Options

    Features Bezel  Options Right Side Features Mounting Configurations...

  • Page 14: Customer Display Options

    Features Customer Display Options...

  • Page 15: Expansion Options

    Programming the Scanner To program the scanner to work on a Retail or Hospitality (Aloha) POS, refer to the following sections in the Imager Setup Sheets document (BCC5-0000-5470): http://onlinehelp.ncr.com/Retail/Scanners/ImagerSetup/HTML/FrontMatter-HTML/Home.htm • Retail • Honeywell N5680 Retail Quick Imager Setup • Hospitality (Aloha)

  • Page 16: Specifications

    • (1) USB + Powered USB, 12 V This product does not support low speed USB devices Note: (1.5Mbit/s). NCR recommends using Full, High, and SuperSpeed USB devices to avoid a possible coexistence problem with higher speed peripherals in electrically noisy environments not following the NCR Workstation and Peripherals AC Wiring Guide (BSTO-2115-53).
  • Page 17 Features 1-11 Features Specifications HDMI Port (1) HDMI Port Display Port (1) Display Port Power Supply • 19 V, 90 W Power Supply option • 24 V, 150 W Power Supply option Power Cords • USA Power Cord, 90 W • USA Power Cord, 150 W •...

  • Page 18: Label Locations

    1-12 Features Label Locations...

  • Page 19: Operator Controls

    Features 1-13 Operator Controls Power Switch The Power Switch is located as shown below.

  • Page 20: Chapter 2: Hardware Installation

    • Install the NCR P1532 POS near an electrical outlet that is easily accessible. Use the power cord as a power disconnect device. • Do not permit any object to rest on the power cord. Do not locate the NCR P1532 POS where the power cord can be walked on.

  • Page 21: Power

    Getting Started Power For tilt stand option, the P1532 has an integrated 19 V, 90 W power supply rated for 110 V and 240 V (Auto-sensing), 50 Hz or 60 Hz located in the base. With the powered USB 24 V option, the power supply is a 24V, 150 W external power brick rated for 110 V and 240 V (auto-sensing), 50Hz or 60Hz.

  • Page 22: Biometric Cleaning

    / mildew cleaners. Also, do not use solvents such as acetone, MEK, TCE, paint thinner, or turpentine. The power should be removed from the terminal prior to cleaning. Hardware Platform Drivers Platform drivers for the P1532 POS are available on http://www5.ncr.com/support/...

  • Page 23: Ergonomic Workplace

    Getting Started Ergonomic Workplace The NCR P1532 POS has a high brightness LCD with an anti-glare screen but for best results please observe the following when considering the terminal workplace. • Avoid direct glaring and reflective glaring light. Locate the terminal in a controlled luminance surrounding.

  • Page 24: Installing The Terminal

    For installation procedures for the other mounting options see their associated kit instructions. The NCR P1532 POS comes fully assembled and ready to use. All that is required is to install the power supply, connect the LAN Cable and peripheral device cables.

  • Page 25: Installing The Power Supply

    Installing the Power Supply Caution: The P1532 terminal requires the NCR 19 V or 24 V power supply that is shipped with the terminal. Use of other power supply may cause damage to the unit. Do not connect or disconnect the 19 V or 24 V Power Cable from the terminal with the AC Power Cord still connected to an AC outlet.
  • Page 26 Getting Started 2-20 4. Open the CableLock™ Cover. 5. Slide and install the power brick to the base. Ensure that the power brick's label is facing down.
  • Page 27 2-21 Getting Started 6. Route the power cable to the left side of the power brick with the cable routing down the opening at the base of the terminal.

  • Page 28: Connecting The Peripheral Cables

    Getting Started 2-22 Connecting the Peripheral Cables • Connect the peripheral cables to the I/O Panel. Cable Routing Cables are routed behind the CableLock™ Cover and down through the stand. 1. With the CableLock™ Cover opened, route the cables down through the opening in the base of the stand.

  • Page 29: Connecting Ac Power

    Internet. To connect the P1532 terminal to a network, plug the 10/100/1000 Ethernet cable into the port labeled NETWORK on the bottom panel. The other end of the 10/100/1000 Ethernet cable should be connected into your network hub.

  • Page 30: Starting Up The P1532 Terminal

    In order to run your operating system and access your software and data, you must start up the P1532 platform. To start up the P1532, complete the following procedure: 1. Simply plug the power cord into an electrical outlet. The system automatically turns on once plugged into the outlet.

  • Page 31: Using External Connectors

    Getting Started Using External  Connectors In order to use the P1532 system to run your business' software, you can set up several peripheral components. The P1532 is compatible with standard PC equipment, including a USB mouse, USB keyboard, printer, speakers, network connectivity, as well...

  • Page 32: Rj12 Serial Port

    500mA max. Pin Diagram Signal  Name POWER/RTS RJ12 Adapter Kits If a peripheral device requires a different connector to connect to the P1532 POS terminal serial RJ12 connector, order the following adapter kits: RJ12 Adapter Kits 1639-K159 DB9M to RJ12 Adaptor (CN100381)

  • Page 33: Rj45 Serial Port

    Signal  Name DTR/5V RTS/12V RJ45 Adapter Kits If a peripheral device requires a different connector to connect to the P1532 POS terminal serial RJ45 connector, order the following adapter kits: RJ45 Adapter Kits 1639–K332 RJ45 to DB25 Adapter Cable 1.85m 1639–K333...

  • Page 34: Lan

    Getting Started 2-28 The 7761 Motherboard provides 10/100/1000 Base T Ethernet support using Realtek RTL8111F controller. The 7761 Motherboard supports Wake on LAN. The connector features an integrated magnetic module and 2 LEDs. The LED on the left is yellow and indicates Link/Activity at 1GBit speed when lit/flashing.

  • Page 35: Usb 3.0 Compliant Ports

    2-29 Getting Started USB 3.0  Compliant Ports The 7734 Motherboard provides 4 USB 3.0 compliant ports. Each USB port is capable of supplying 5V at 900mA max. Pin  Diagram Signal  Name VBUS StdA_SSRX- StdA_SSRX+ GND_DRAIN StdA_SSTX- StdA_SSTX+ Shell Shield...

  • Page 36: Cash Drawer (Cd) Port

    Getting Started 2-30 Cash Drawer (CD) Port A single 6-position RJ12 connector (Molex 44248-0065 or NCR approved equivalent) is used. Pin Diagram Signal  Name LOGIC GND SOLENOID A OPEN/CLOSE STATUS +24V SOLENOID B POWER GND Cash Drawer Cable Kits The terminal supports a 2–drawer configuration with a Dual Cash Drawer Cable.

  • Page 37: Installing A Transaction Printer

    2-31 Getting Started Installing a Transaction Printer Connect the printer to the USB port on the terminal.

  • Page 38: Installing A Cash Drawer

    Getting Started 2-32 Installing a Cash Drawer The Cash Drawer can be connected to the Cash Drawer connector or to the transaction printer.

  • Page 39: Second Cash Drawer Cable Connection

    2-33 Getting Started Second Cash Drawer Cable Connection The terminal supports a 2-drawer configuration with a Dual Cash Drawer Cable. Connect this cable to the terminal or transaction printer cash drawer connector. There are two versions of the Dual Cash Drawer Cable: •...

  • Page 40: Removing Top Assembly

    Getting Started 2-34 Removing Top Assembly 1. Unplug power and cables. 2. Lay the terminal face down on a flat surface. Caution: Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down. 3.

  • Page 41: Chapter 3: Touch Screen Calibration

    Touch Screen Calibration Chapter 3: Note: Only units with resistive touch screens need to be calibrated. PCap displays do not require calibration. Proper Touch Screen Methods Before performing the calibration procedure please observe the following guidelines for proper/improper methods of touching the screen. •...
  • Page 42 3-36 Touch Screen Calibration • Do NOT touch the bezel with your other fingers.

  • Page 43: Calibrating The Touch Screen

    Touch Screen Calibration 3-37 Calibrating the Touch Screen Resistive Touch Screen Calibration 1. Run the calibration program. a. From the Start Menu, open Control Panel and select Radiant Hardware Settings. b. Select the Touch tab. c. Press the Calibrate Touch Screen button. 2.

  • Page 44: Appendix A: Product Ids

    Included below is a current list of active and in–process PID configurations for the P1532 POS. Please refer to the Description Key for the abbreviated information that defines the feature content included in each configuration. Note that PIDs ending in –...
  • Page 45 7734-0001-8800 P1532 Res 64GB 4GB RAM WEPR7-64bit MSR 7734-0002-8800 P1532 Res 64GB 8GB RAM WEPR7-64bit MSR 7734-0003-8800 P1532 Res 32GB 4GB RAM WEPR7-32bit MSR 2x20 7734-0004-8800 P1532 Res 64GB 4GB RAM WEPR7-64bit MSR 2x20 7734-0005-8800 P1532 Res 64GB 8GB RAM WEPR7-64bit MSR 2x20...
  • Page 46 7734-0100-0088 P1532 Res 32GB 4GB RAM WEPR7-32bit MSR BIO No Pwr Cord 7734-0100-0089 P1532 Res 64GB 4GB RAM WEPR7-64bit MSR BIO No Pwr Cord 7734-0100-0090 P1532 Res 32GB 4GB RAM WEPR7-32bit MSR BIO 2x20 No Pwr Cord 7734-0100-0091 P1532 Res 64GB 4GB RAM WEPR7-64bit MSR BIO 2x20 No Pwr Cord...
  • Page 47 Description 7734-0100-0094 P1532 Res 64GB 8GB RAM Win10E-64bit MSR BIO No Pwr Cord 7734-0100-0095 P1532 Res 32GB 4GB RAM Win10E-32bit MSR BIO 2x20 No Pwr Cord 7734-0100-0096 P1532 Res 64GB 4GB RAM Win10E-64bit MSR BIO 2x20 No Pwr Cord 7734-0100-0097 P1532 Res 64GB 8GB RAM Win10E-64bit MSR BIO 2x20 No Pwr Cord...
  • Page 48 7734-0101-0070 P1532 Res 64GB 4GB RAM No OS MBlank 2n1 XB EU Cord 7734-0101-0071 P1532 Res 64GB 4GB RAM No OS MBlank 2n1 2x20 XB EU Cord 7734-0101-0072 P1532 Res 64GB 4GB RAM No OS MBlank 2n1 PStand EU Cord...
  • Page 49 Product IDs Description 7734-0101-0075 P1532 Res 64GB 4GB RAM WEPR7-64bit MBlank 2n1 2x20 XB EU Cord 7734-0101-0076 P1532 Res 64GB 4GB RAM WEPR7-64bit MBlank 2n1 PStand EU Cord 7734-0101-0077 P1532 Res 64GB 4GB RAM WEPR7-64bit MBlank 2n1 2x20 PStand EU...
  • Page 50 7734-3100-0057 P1532 SCAP 64GB 4GB RAM Win10E-64bit MSR BIO XB 7734-3100-0058 P1532 SCAP 64GB 8GB RAM WEPR7-64bit MSR BIO 7734-3100-0059 P1532 SCAP 32GB 4GB RAM WEPR7-32bit MSR BIO No Pwr Cord 7734-3100-0060 P1532 SCAP 64GB 4GB RAM WEPR7-64bit MSR BIO No Pwr Cord...
  • Page 51 7734-3100-0070 P1532 SCAP 64GB 4GB RAM Win10E-64bit MSR BIO C730TM No Pwr Cord 7734-3100-0071 P1532 SCAP 32GB 4GB RAM Win10E-32bit MSR BIO XB No Pwr Cord 7734-3100-0072 P1532 SCAP 64GB 4GB RAM Win10E-64bit MSR BIO XB No Pwr Cord 7734-3100-0073 P1532 SCAP 64GB 8GB RAM WEPR7-64bit MSR BIO No Pwr Cord...
  • Page 52 Product IDs Description 7734-3100-0088 P1532 Res 64GB 4GB RAM Win10E-64bit MSR XB No Pwr Cord 7734-3100-0089 P1532 SCAP 32GB 4GB RAM Win10E-32bit MSR No Pwr Cord 7734-3100-0090 P1532 SCAP 64GB 4GB RAM Win10E-64bit MSR No Pwr Cord 7734-3100-0091 P1532 SCAP 32GB 4GB RAM Win10E-32bit MSR 2x20 No Pwr Cord...
