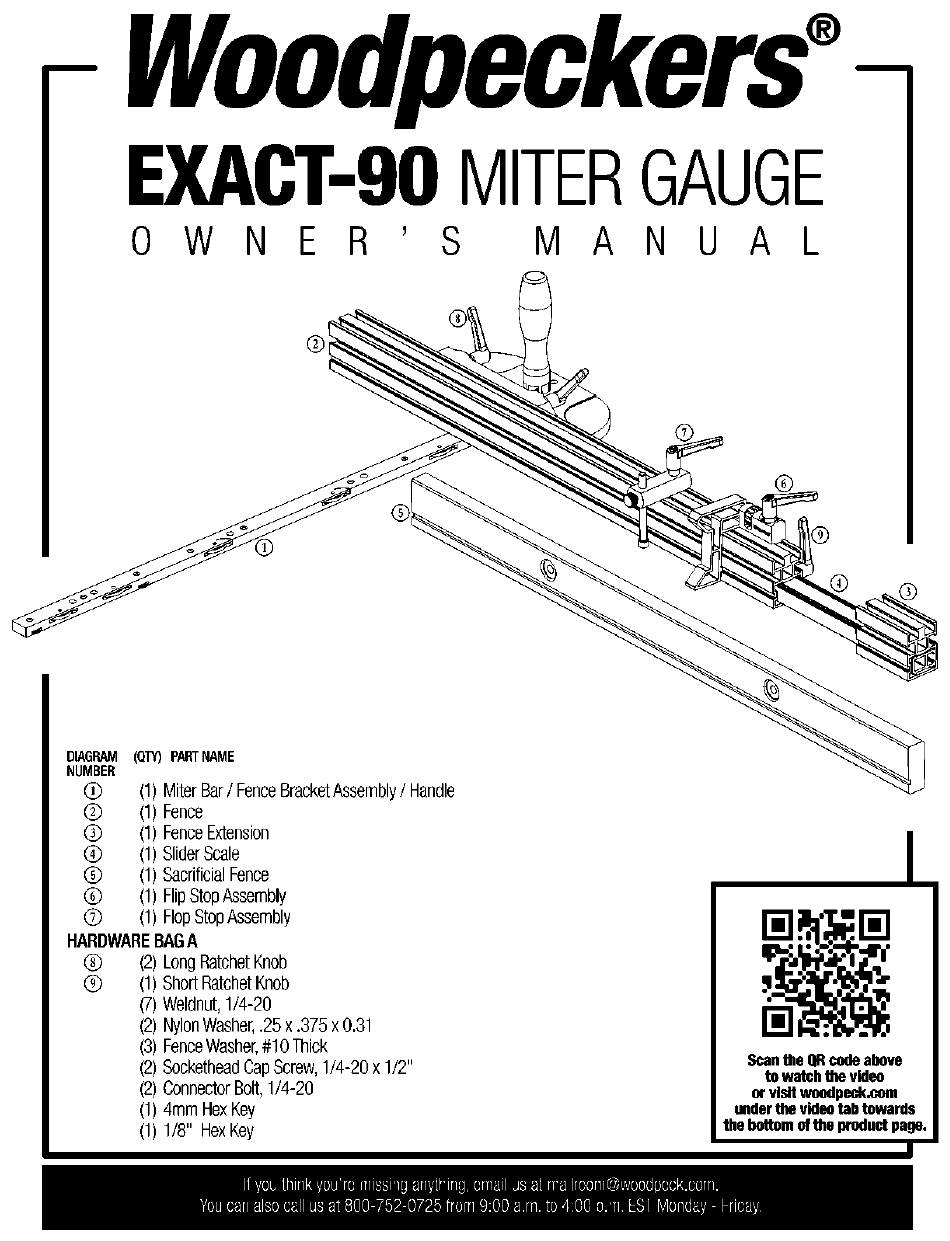

Woodpeckers EXACT-90 Owner's Manual

oodpeckers
XACT-90
ITER GAUGE
WNER ' S MANUAL
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
DIAGRAM
NUMB R
(QTY) PART NAM
1
(1) Miter Bar / Fence Bracket Assembly / Handle
2
(1) Fence
3
(1) Fence Extension
4 (1) Slider Scale
5 (1) Sacrificial Fence
6 (1) Flip Stop Assembly
7
(1) Flop Stop Assembly
HARDW A R B A G A
8 (2) Long Ratchet Knob
9 (1) Short Ratchet Knob
(7) Weldnut, 1/4-20
(2) Nylon Washer, .25 x .375 x 0.31
(3) Fence Washer, #10 Thick
(2) Sockethead Cap Screw, 1/4-20 x 1/2"
(2) Connector Bolt, 1/4-20
(1) 4mm Hex Key
(1) 1/8" Hex Key
