EUROM Window Way-out User Manual page 47

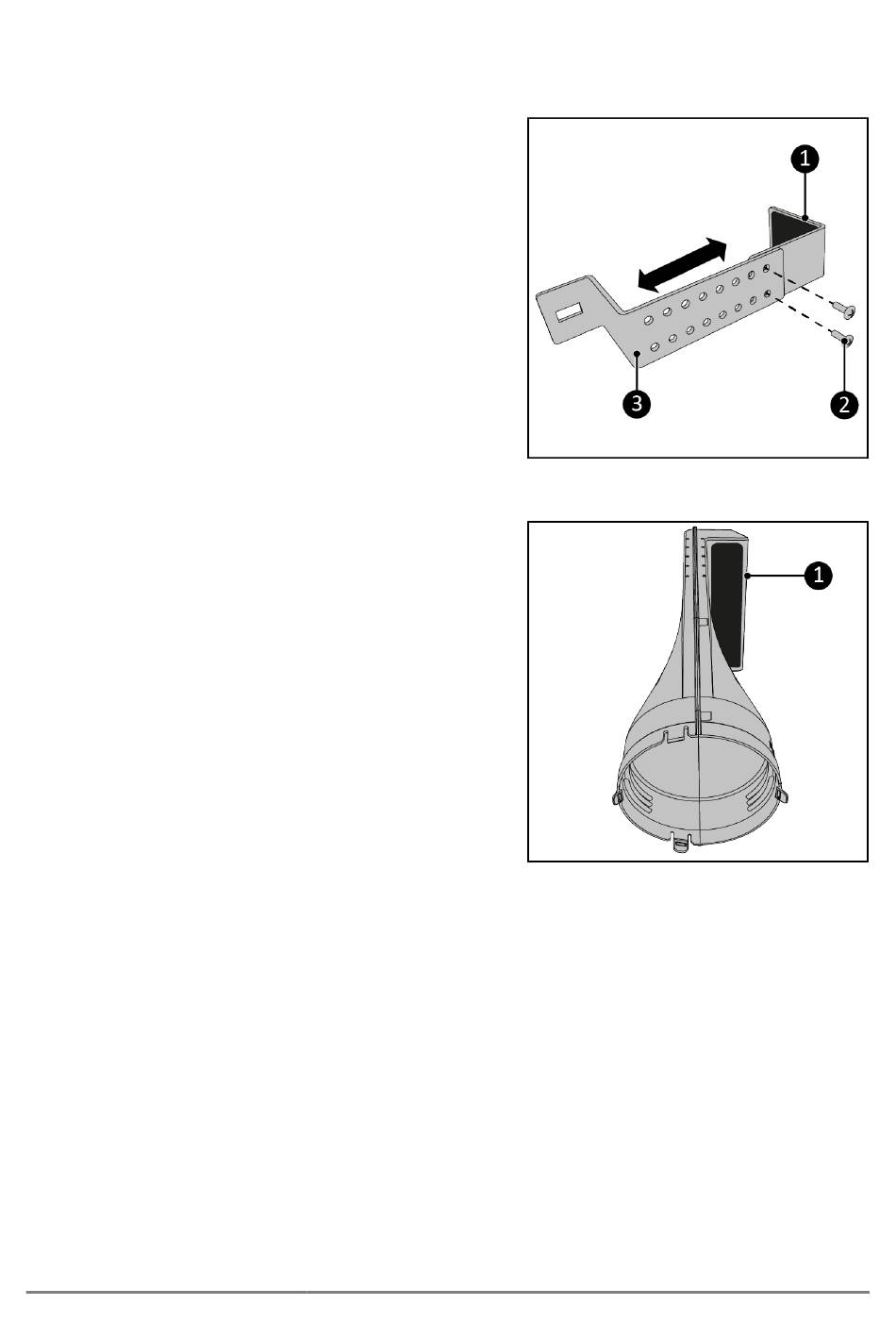

E. Assembly roofwindow
1. Make sure you have done the steps in chapter 'Assembly preparations'.
2. Screw the top part
the bottom part
er at a wide distance using the two M5 x 7
mm screws (Figure
distance if necessary.
3. Place the Way-out in front of you. Make
sure the round opening is facing towards
you (Figure 95).
4. Make sure the air outlet
is pointing to the right.
(Figure 94, pos. 1) and
(Figure 94, pos. 2) togeth­
94, pos. 3). Adjust the
(Figure 95, pos. 1)
Figure 94.
Figure 95.
47
