EUROM Window Way-out User Manual page 32

2. Remove the packaging material from the isolation foam so that it regains its original shape.
This process will take approximately 3 hours.
3. Stick the six 30 x 40 mm anti-slip foams
(Figure 54, pos. 2) on the 6 spaces on the
front of the Way-out
4. Stick the two 40 x 45 mm anti-slip foams
(Figure 55, pos. 2) on the insides of the
top part of the bracket
32
(Figure 54, pos. 1).
(Figure 55, pos. 1).

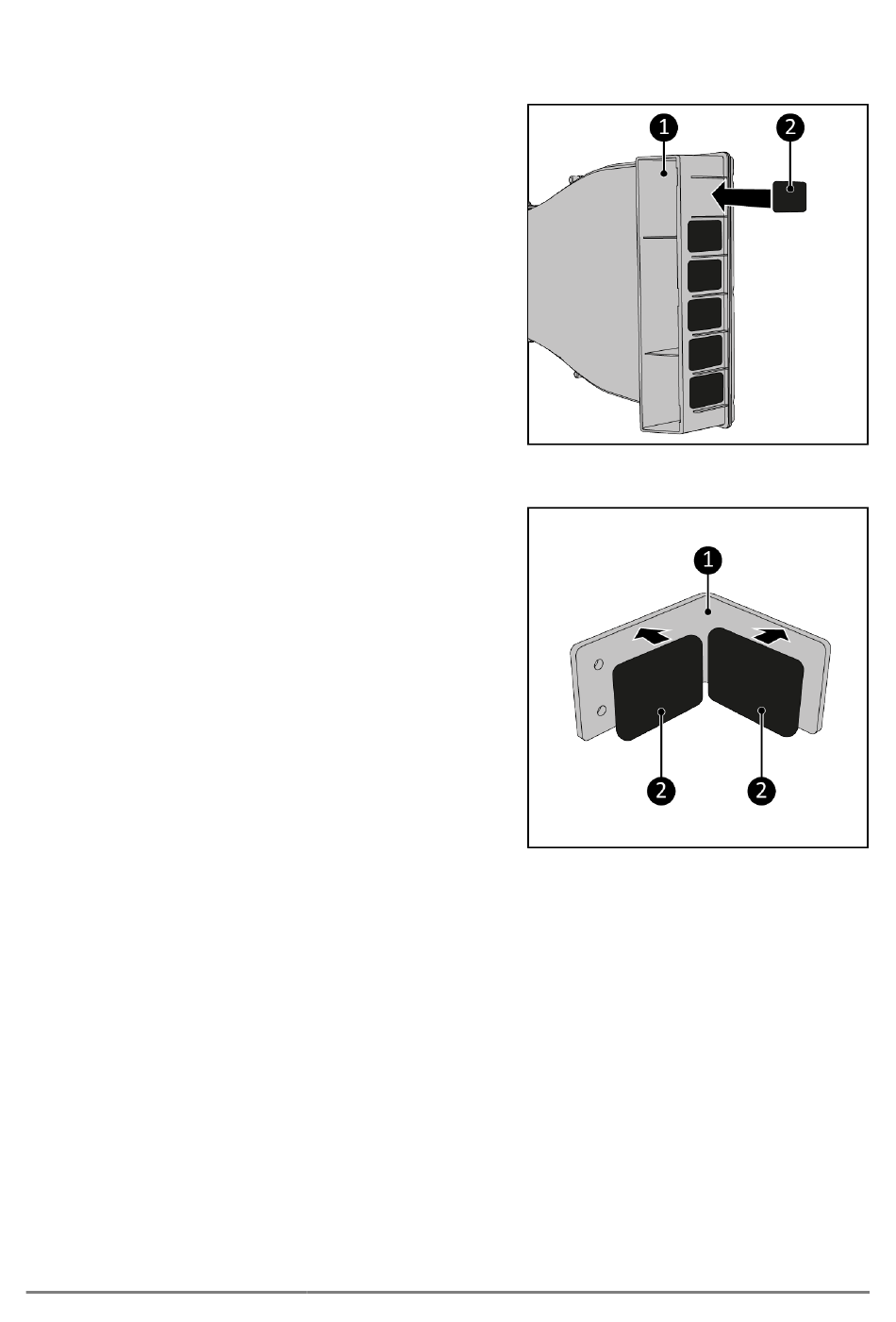

Figure 54.
Figure 55.
