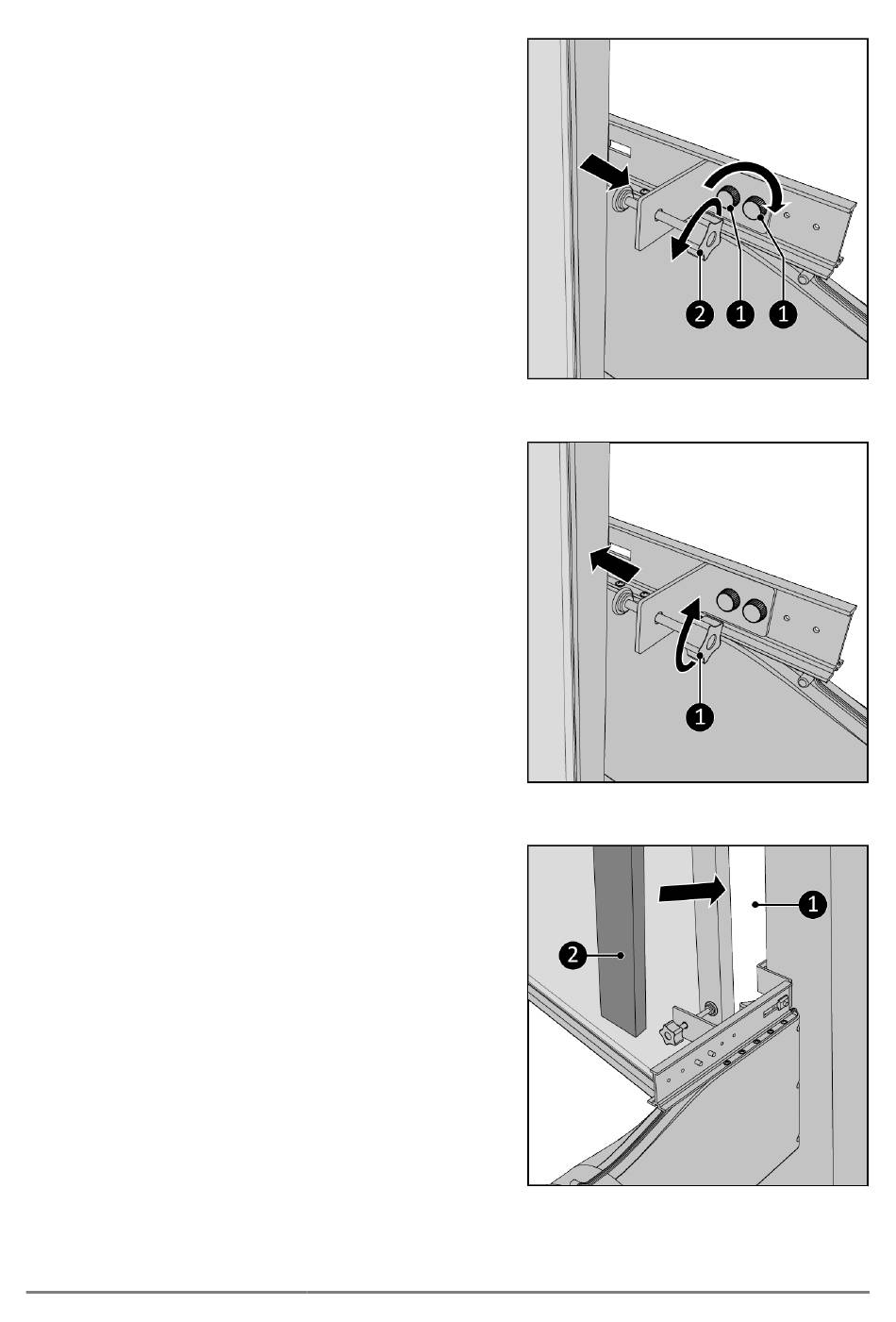

13. Screw the clamping screw all the way back
(Figure 64, pos. 2).
14. Place the clamp bracket as close to the
window frame as possible. Make sure the
screw holes match up.
15. Screw the clamp bracket to the
main rail using the two knob screws
(Figure 64, pos. 1).
16. Screw the clamping screw carefully to the
window frame
17. Fill up the open spaces
with the delivered isolation foam
(Figure 66, pos. 2), cut the foam if neces­
sary*.
18. Continue in chapter 'assembly air condi­
tioning hose'.
* Extra isolation foam (product
code: 875201) can be ordered via
www.eurom.nl
36
(Figure 66, pos. 1).
(Figure 66, pos. 1)
.
Figure 64.
Figure 65.
Figure 66.
