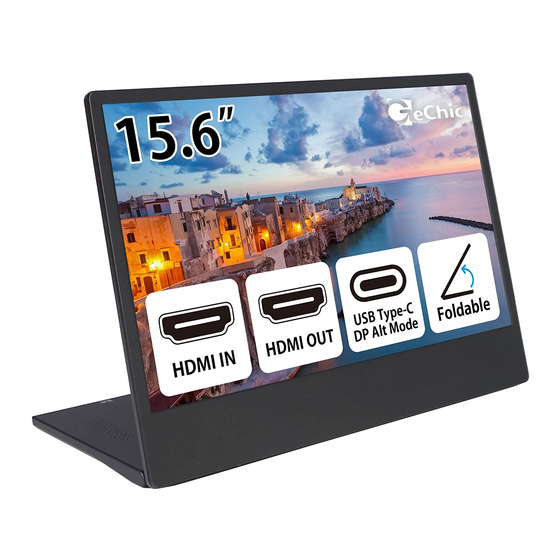

On-Lap M505E
User Manual
How-to's
V. 2024/02/16

Advertisement

loading
Need help?

Need help?

Do you have a question about the On-Lap M505E and is the answer not in the manual?

Questions and answers

Related Manuals for GeChic On-Lap M505E

Summary of Contents for GeChic On-Lap M505E

  • Page 1 On-Lap M505E User Manual How-to’s V. 2024/02/16...
  • Page 2 Exclusions from Warranty Service : please read the warranty terms below carefully, and follow the usage guide and precautionary notes. Please keep this manual for future reference. GeChic does not warrant uninterrupted or error-free operation of this Product. The warranty only covers failure / malfunction under normal use conditions during warranty period.
  • Page 3 ◆ M505E Monitor Side & OSD Hotkeys It shows green light when On-Lap Monitor turns on and LED Light Instruction shows red light when it stands by. There is no light when the monitor is off. Press Power Button to power on/off the Monitor. Reset: Press and hold for 5 seconds to reset the OSD set- Power tings to default.
  • Page 4 ◆ M505E Monitor Back HDMI-A Video Cable USB-A to USB-C Power Cable USB Type-C Video Cable Sleeve (15A5) 5V 2A Power Adapter...
  • Page 5 Connect to the HDMI-A ports on the PC and M505 HDMI-A Video Cable(2.5 m) monitor. The Gechic label is on the FRONT of the sleeve, which is the thick side to protect the screen panel. Please put the thick side of the sleeve up, put the monitor into the sleeve with the panel upward, and then stick the hook and loop tape.
  • Page 6 In the Fig. shown, erect the monitor on the desk. Hold the display by one hand and hold the pull of the I/O base to pull down the I/O base by the other hand. When the base is placed on the desk flat, adjust the screen angle between 40° and 85°.
  • Page 7 2. Power the Monitor by the 5V 2A Adapter (Apply to Smartphone) ○ Use the 5V 2A Power Adapter USB-A to USB-C Power Cable to connect to the DC IN port on the monitor. ○ After turning on the smartphone/ computer, connect M505E to computer/ smartphone by USB Type-C Video Cable.
  • Page 8 ◆ Use the HDMI OUT Port Notice ! As the image is input by HDMI IN port, the HDMI OUT port outputs the same image. The HDMI OUT port can't output the image from USB Type-C port. While using HDMI OUT ports to connect multiple monitors, all the monitors are able to display the same image only, not different images.
  • Page 9 ◆ Connect to Game Console & Set Up for 2-Player Games by HDMI IN Port The HDMI OUT port of M505E allows you to display the same image on two monitors. Two players can sit on both sides and watch their own monitors to enjoy a exclusive gaming experience.
  • Page 10 ◆ Installation of VESA 100 Arm or Wall Mount Please follow the steps below for setup. Screw the M505 VESA 100 Aluminum Alloy Bracket(Optional) to the I/O ○ base of the monitor by 4 M4 screws. Clip the monitor screen and VESA 100 aluminum alloy bracket together by the two clips to prevent the screen from falling down.

  • Page 11: Display Settings

    ◆ Display Settings As shown in the Fig., enter "Display Settings" to adjust "Brightness", "Contrast", "Sharpness", etc. 1. ECO Mode: The maximum brightness is at 50 in ECO Mode. 2.Auto Adjust: Launch "Auto Contrast Adjust" and "Auto Brightness Adjust" to adjust bright- ness and contrast automatically to ensure the highest quality when displaying moving images.

  • Page 12: Input Source

    3. OSD Button Lock : If "On" is selected, the four OSD buttons are disabled. Press and hold the power button for 5 seconds, the monitor will restore factory settings and enable the four OSD buttons again. (Hot-Key: Pressing buttons at the same time will release OSD Button Lock and enable the OSD buttons) 4.
  • Page 13 Panel Wide Screen 15.6 inch (16:9) True Resolution 1920x1080 Color Depth 16.2M Colors Brightness 250 (cd/m²) (Typ.) Contrast Ratio 700:1 (Typ.) Viewing Angle 170°(H)/170°(V)(CR>10) Response Time 15ms (Typ.) HDMI-A x1 Video Input USB Type-C (DP 1.2) x1 Video Output HDMI-A x1 (HDMI Loop: up to 14 M505E monitors) Earphone Out Jack 3.5mm mini jack (support analog 3.5mm AUX) Speakers...
  • Page 14 Refresh Rate Horizontal Frequency(kHz) Vertical Frequency(kHz) Resolution 1024x768 60Hz 48.363 60.004 1152x864 60Hz 53.783 59.959 1280x600 60Hz 37.377 59.900 1280x720 50Hz 37.500 50.000 60Hz 45.000 60.000 1280x720 60Hz 44.772 59.855 1280x768 60Hz 47.776 59.870 1280x800 60Hz 49.702 59.810 1280x960 60Hz 60.000 60.000 1280x1024...
  • Page 15 Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by GeChic Corp. could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

  • Page 16: Service Hotline

    11F-3, No. 138, Zhongming S. Rd., West Dist., Taichung, Taiwan Customer Service service@gechic.com Service Hotline +886-4-23198080 Mon.-Fri. 09:00~12:00 & 13:00~18:00(UTC+08:00)
