User Manual

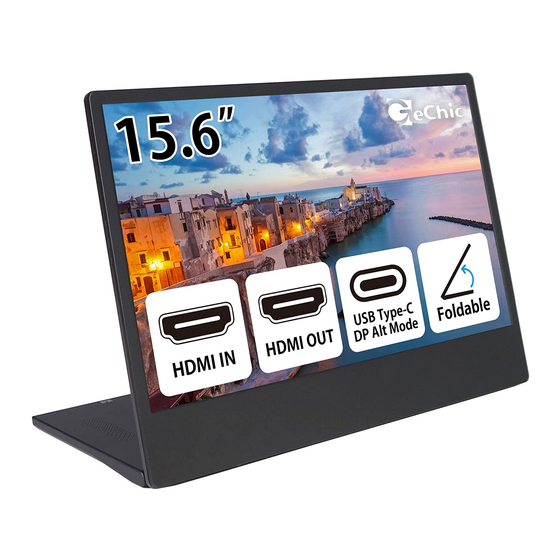

On-Lap M505E Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the On-Lap M505E and is the answer not in the manual?

Questions and answers

Related Manuals for GeChic On-Lap M505E

Summary of Contents for GeChic On-Lap M505E

  • Page 1 User Manual On-Lap M505E Monitor...

  • Page 2: Table Of Contents

    Content Notices, Cautions & Warranty Exclusions —I LCD Pixel Statement —II FCC Statement —II CE Conformity & WEEE Symbol Information —III Chapter 1 Parts of On-Lap Monitor & Accessories —1 Section 1 Parts Description —1 Section 2 Accessories Description —2 Chapter 2 Installation Instructions —3 Section 1 Setup of M505 Monitor &...
  • Page 3 —IV —V —V WEEE —15 —15 —16 —17 —17 1. M505 ® 2. USB Type-C MacBook Pro/Air —18 3. HDMI IN —19 4. HDMI IN —19 5. HDMI OUT —20 —22 7 VESA 100 —23 —23 LED OSD —23 LED OSD —24 2.
  • Page 4 If the input voltage is more than 5V, the monitor will become damaged seriously. and this will void the GeChic manufacturer's Warranty. We suggest you to connect both connectors of the USB power cable to your desktop΄s USB ports or use GeChic 5V-2A charger.
  • Page 5 Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by GeChic Corp. could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
  • Page 6 CE Declaration of Conformity This product complies with the following standards: EN 55032:2015/AC:2016 Class B (Radio Disturbance requirement of Infor- ● mation Technology Equipment). EN55024:2010+A1:2015(Immunity requirement of Information Technology ● Equipment). EN 61000-3-2:2014 (Harmonic current emissions). ● EN 61000-3-3:2013 (Voltage fluctuations & flicker) following provisions of direc- ●...

  • Page 7: Section 1 Parts Description -1

    Chapter 1 Parts of On-Lap Product & Accessories Section 1 Parts Description...

  • Page 8: Section 2 Accessories Description -2

    Section 2 Accessories Description Standard Accessories HDMI-A Video Cable(1.2m) USB Type-C Video Cable(1m) USB-C(female) to USB-A(male) Adapter 5V 2A Power Adapter 15-inch Sleeve Bag Optional Accessories Description M505 VESA 100 Aluminum Alloy Screw M505 monitor to VESA 100 arm or wall Bracket mount by the 4 VESA 100 screw holes on the bracket.

  • Page 9: Chapter 2 Installation Instructions -3

    Chapter 2 Installation Instructions Section 1 Setup of M505 Monitor & Use of Sleeve Bag 1. Set up M505 Monitor and Adjust the Angle In the Fig. shown, erect the monitor on the desk. Hold the display by one hand and hold the pull of the I/O base to pull down the I/O base by the other hand.
  • Page 10 3. Instructions of Sleeve Bag In the Fig. shown, open the sleeve bag by one hand, hold the screen bezel (Don't touch the panel part) by the other hand and put the monitor into the sleeve bag. Warning: When the monitor is in the sleeve bag, please DO NOT put any heavy objects upon the sleeve bag and avoid any collisions, or the monitor may be cracked.

  • Page 11: Section 3 Connect To Computer By The Hdmi In Port -5

    In OSD menu, select “No” for “Charge from NB/PC" ○ in “Input Source”. Then the smartphone or computer won't power to M505E monitor. ③ Notice 1. The monitor can't charge the smartphone. 2. When the smartphone displays content in portrait, the mirrored image displays in the center part of the monitor.

  • Page 12: Section 4 Connect To Game Console& Set Up For 2-Player Games

    Section 4 Connect to Game Console& Set Up for 2-Player Games You may duplicate the game image on two monitors for two players by the HDMI OUT port on M505. Two players don’t need to sit side by side, you can sit face to face and watch own screens to enjoy an exclusive gaming space.
  • Page 13 Use the second HDMI-A Video Cable (Optional) to connect the HDMI OUT port ○ on the monitor and HDMI IN port on the projector/ digital whiteboard. 2. Connection of Multiple Monitors or Video Conference Room Please follow the steps below for connection. HDMI-A Video Cable to connect computer to the HDMI IN port on Monitor○...

  • Page 14: Section 6 Connect To Headphones Or Speakers

    3. Connect to Live Broadcaster Please follow the steps below for connection. mini-HDMI to HDMI-A Video Cable (Optional) to connect a camera or video ○ recorder to the HDMI IN port on M505 monitor. HDMI-A Video Cable(1.2m) to connect live broadcaster to the HDMI OUT ○...

  • Page 15: Section 7 Installation Of Vesa 100 Arm Or Wall Mount -9

    Section 7 Installation of VESA 100 Arm or Wall Mount Please follow the steps below for setup. Screw the M505 VESA 100 Bracket (Optional) to the I/O base ○ of the monitor by 4 M4 screws. Clip the monitor screen and VESA 100 aluminum alloy bracket ○...

  • Page 16: Section 2 Osd Menu Description -10

    Section 2 OSD Menu Description When turning on monitor at the first time, the "Language Select" menu appears. Please press " Menu/Select" button to choose a language. If no one is selected, the system will be set as English for default. 1.

  • Page 17: Section 1 Settings Of Extended Display On Windows 11/10

    6) Auto Power Off: Select "On" to launch this function, when no image dis- played on the screen, the monitor will enter Standby mode, and power off itself after 2 minutes. Select "Off" to disable this function. The monitor will stay in standby mode and will not power off.

  • Page 18: Section 2 Settings Of Extended Display On Mac (Os

    First, click [Display] tab and select resolution of the laptop, and then click "Gather Windows", and select resolu- tion to "1080p" for On-Lap M505E. For vertical display, select 270ﾟat "Rotation". Chapter 5 Product Specification Section 1 General Specification On-Lap M505E Item Panel Wide screen 15.6-inch (16:9)

  • Page 19: Section 2 Supported Operating Modes -13

    Item On-Lap M505E HDCP Support HDCP CEC Support ≦ 10W Power Consumption Power Consumption < 0.5W Standby Mode ● Off Mode < 0.5W ● Rated Voltage 2.0A(Typ.) Environment Conditions Operation: 0~50°C; Storage :-20~60°C Display top cover: 364mm x 250mm x 6.9mm Dimensions (W*H*D) IO Base: 364mm x 135mm x 10.7mm...

  • Page 20: Section 3 Supported Video Modes -14

    “YES” for “Charge from NB/PC”. Use the USB-C video turn on. cable to connect the USB-C(DP alt) port of the PC and the USB-C port of the monitor again. GeChic Corporation 11F.-3, No.138, Zhongming S. Rd., West Dist., Taichung City 40361, Taiwan Customer Service: service@gechic.com...
  • Page 21 On-Lap 5V 2A DC 5V 2A AC...
  • Page 22 99.99 0.01 WEEE Rear Dock VCCI-B...
  • Page 26 ■ ■ ○ ○ ○ ③...
  • Page 27 ○ ○ ○ ： HDMI OUT HDMI-A 1.2m) HDMI OUT HDMI IN...
  • Page 28 ： ○ ○ ○...
  • Page 29 以下 ： ○ ○ ○...
  • Page 30 以下 ○ ○ ○ ○ ：...
  • Page 31 ○ ○ ○ 「...
  • Page 32 Display Settings) (ECO Mode) Auto Adjust) Settings) Aspect Ratio) Overscan): HDMI Video 1080P/720P) OSD Menu)
  • Page 33 Auto Power Off) Power Button Lock) Input Source) Information) On-Lap Reset)
  • Page 36 ≦ < < R53848 RoHS...
  • Page 38 > > > GeChic Corporation 11F.-3, No.138, Zhongming S. Rd., West Dist., Taichung City 40361, Taiwan Customer Service: service@gechic.com Rev. 2022/3/1...
  • Page 39 保証規定 １年 保証...
  • Page 40 Rev. 2021/3/1...
