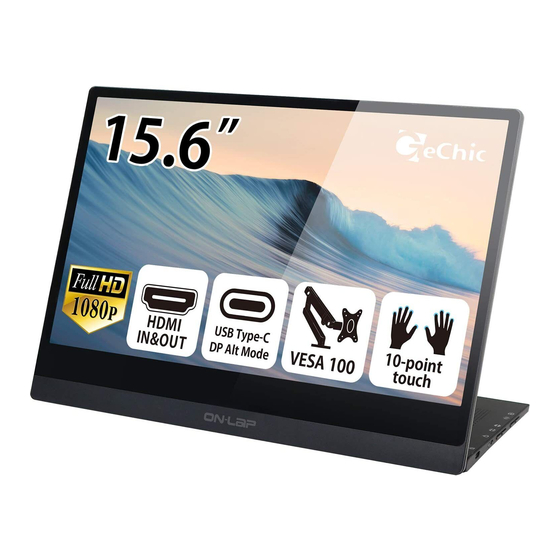

Summary of Contents for GeChic On-Lap M505T/I

  • Page 1 User Manual On-Lap M505T/I Monitor...

  • Page 2: Table Of Contents

    Table of Contents Notices, Cautions & Warranty Exclusions —I LCD Pixel Statement —II FCC Statement —II CE Conformity & WEEE Symbol Information —III Chapter 1 Parts of On Lap Monitor & Accessories —1 Section 1 Parts Description —1 —2 Section 2 Accessories Description Chapter 2 Installation Instructions —3 —3...
  • Page 3 —IV —V WEEE —V 日 本 —16 語 —16 —17 —18 —18 1. M505 ® 2. USB Type-C MacBook Pro/Air —19 3. M505 —20 —20 —21 2. USB-A ® 3. USB Type-C Nintendo Switch —21 4. HDMI IN —21 5. HDMI OUT —22 —23 7 VESA 100...

  • Page 4: Notices, Cautions & Warranty Exclusions -I

    3. The power input specification for On-Lap monitor is 5V 2A DC current. the input voltage is more than 5V, the monitor will become damaged seriously, and this will void GeChic manufacturer's warranty. We suggest you to connect both connectors of the USB power cable to the USB ports on your PC or use GeChic 5V 2A adapter.

  • Page 5: Lcd Pixel Statement -Ii

    Consult the dealer or an experienced radio/TV technician for help. ■ Caution: 1. Changes or modifications not expressly approved by GeChic Corp. could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
  • Page 6 CE Declaration of Conformity This product complies with the following standards: EN 55032:2015/AC:2016 Class B (Radio Disturbance requirement of Infor- ■ mation Technology Equipment). EN55024:2010+A1:2015(Immunity requirement of Information Technolo- ■ gy Equipment). EN 61000-3-2:2014 (Harmonic current emissions). ■ EN 61000-3-3:2013 (Voltage fluctuations & flicker) following provisions of ■...

  • Page 7: Section 1 Parts Description -1

    Chapter 1 Parts of On-Lap Product & Accessories Section 1 Parts Description (Connect USB Touch Cable)

  • Page 8: Section 2 Accessories Description -2

    Section 2 Accessories Description M505T M505I Standard Accessories HDMI-A Video Cable(1.2m) ○ ○ USB Type-C Video Cable(1m) ○ ○ USB-A to USB-C Power & Touch Signal Cable(1.2m) ○ ○ 5V 2A Power Adapter ○ 65W PD Power Adapter & Power Cord ○...

  • Page 9: Chapter 2 Installation Instructions -3

    Chapter 2 Installation Instructions Section 1 Setup of M505 Monitor & Use of M505T/ Folding Sleeve 1. Set Up M505 Monitor and Adjust the Angle In the Fig. shown, erect the monitor on the desk. Hold the display by one hand and hold the pull of the I/O base to pull down the I/O base by the other hand.

  • Page 10: Smartphone By The Usb Type-C Port

    Section 2 Connect to MacBook Pro/Air, Laptop or Smartphone by the USB Type-C Port The computer, smartphone, etc. for USB Type-C connection must meet the following conditions: ◆ Supports DisplayPort Alternate Mode. (USB Type-C (DP Alt Mode)) ◆ Supplies at least 5V 2A power current. If the smartphone or the devices can't supply 5V 2A current to the monitor, please power the monitor by the adapter.

  • Page 11: Usb-A Port Description

    Section 3 Description of M505 Proprietary Functions Charge the Smartphone or Computer (Not Apply to M505T) ○ Connect the 65W PD Power Adapter to the DC IN port on M505 monitor. ○ After turning on the smartphone or computer, connect M505 to the smartphone/ computer by USB Type-C Video Cable...

  • Page 12: Section 4 Connect To Pc By The Hdmi In Port -6

    (Not Apply to M505T) Notice 1: To use Joy-Con while Switch® console outputs video signals to the monitor, please detach Joy-Con controllers from Nintendo Switch® console. Notice2: After finishing the games, please unplug the USB Type-C video cable and then turn off Switch®...

  • Page 13: Section 5 Use Of Hdmi Out Port -7

    Caution: Please DO NOT connect to HDMI OUT port. Section 5 Use the HDMI OUT Port Notice 1: As the image is input by HDMI IN port, the HDMI OUT port can output the same image. The HDMI OUT port can't output the image from USB Type-C port. Notice 2: When using HDMI OUT ports to connect multiple monitors, all the monitors are able to display the same image only, not different images.

  • Page 14: Section 7 Installation Of Vesa 100 Arm Or Wall Mount

    Section 7 Installation of VESA 100 Arm or Wall Mount Please follow the steps below to assemble . ○ Screw the M505 VESA 100 Bracket (Optional) to the I/O base of the monitor by 4 M4 screws. ○ Clip the monitor screen and VESA 100 aluminum alloy bracket together by two clips to prevent the screen from falling down.

  • Page 15: Section 2 Osd Menu Description -9

    Power Press power button to turn on/off the monitor. Press this button to show "Input Source" and then press Input Source/ Exit switch the input sources. When using the OSD menu, press this button to return to previous page. Press this button to launch OSD panel. When using OSD menu, Menu/Select press this button to select and enter the next page.
  • Page 16 4. OSD Menu 1) Language Select: Change to the other language. 2) H. Position: Move the OSD menu left/right. 3) V. Position: Move the OSD menu up/down 4) OSD Timer (sec): Adjust the idle time before OSD menu disappears. 5) OSD Transparency: Make the OSD menu transparent to show the background.

  • Page 17: Section 1 Settings Of Extended Display On Windows 10 -11

    Chapter 4 Settings of Extended Display Section 1 Settings of Extended Display on Windows 10 , select [Settings]→ [System]→ [Display], Click and choose "Extend these displays" at “Multiple displays”; Select "1920x1080" at Resolution and select "Landscape" at Orientation for horizontal display.
  • Page 18 1. Touch Screen Settings on Windows 10/ 7 If the computer does not enable touchscreen function automatically or the monitor doesn’t sense touch position accu- rately, please use Windows 10/7 “Tablet PC Settings” in “Control Panel” to start touch screen setting. In Windows 10, search “Calibrate”...
  • Page 19 Chapter 6 Product Specification Section 1 General Specification On-Lap M505 Item On-Lap M505T Wide screen 15.6-inch (16:9) Panel 1920x1080 1920x1080 True Resolution 16.7M Colors 16.7M Colors Color Depth 250 (cd/m²) (Typ.) 250 (cd/m²) (Typ.) Brightness 700:1(Typ.) 700:1(Typ.) Contrast Ratio 170°(H)/170°(V)(CR>10) 170°(H)/170°(V)(CR>10) Viewing Angle 15ms(Typ.)
  • Page 20 Section 2 Supported Operating Modes Resolution Refresh Rate Horizontal Frequency (kHz) Vertical Frequency (Hz) 640x480 60Hz 31.469 59.940 720x480 60Hz 29.855 59.710 800x600 60Hz 37.879 60.317 848x480 60Hz 31.02 60.000 960x600 60Hz 37.212 59.635 1024x768 60Hz 48.363 60.004 1152x864 60Hz 53.783 59.959 1280x600...
  • Page 21 MacBook or iPad Pro ble to use touchscreen function on M505T/ monitor. can’t operate touch function or the cursor always responds on wrong positions. GeChic Corporation 11F.-3, No. 138, Zhongming S. Rd., West Dist., Taichung, Taiwan Customer Service: service@gechic.com Rev. 2020/9/30...
  • Page 23 VCCI-B...
  • Page 25 ○ ○ ○ ○ ○ ○ ○ ○ ○...
  • Page 27 ■ ■ M505T/ Apple® MacBook Pro/ Air iPad Pro M505T/ ○ ○ ○...
  • Page 28 ○ ○...
  • Page 29 ○ ○ ○ ○...
  • Page 30 ○ ○ ○ ○ ○ ○ ○...
  • Page 31 ： ○ ○ ○...
  • Page 32 「...
  • Page 36 ● ●...
  • Page 37 ≦ < < R53848 RoHS...
  • Page 39 GeChic Corporation 11F-3, No. 138, Zhongming S. Rd., West Dist., Taichung, Taiwan Customer Service ： service@gechic.com Rev. 2020/9/30...
  • Page 40 １年 保証 (販売店のスタンプ)
