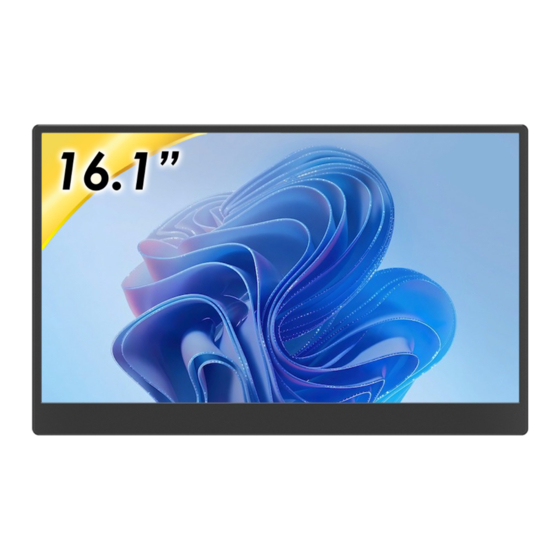

M161H-R1 Monitor
User Manual
23.03.15
How-to's

Advertisement

loading
Need help?

Need help?

Do you have a question about the M161H-R1 and is the answer not in the manual?

Questions and answers

Summary of Contents for GeChic M161H-R1

  • Page 1 M161H-R1 Monitor User Manual 23.03.15 How-to’s...
  • Page 2 If you need to use this monitor in an abnormal environ- ment such as high temperature, high humidity, confined space, low atmospheric pressure, etc., please contact Gechic customer service center for further advice on usage environment.
  • Page 3 ◆ ◆ HDMI-A Video Cable Under the Partition USB Type-C Video Cable USB-A to USB-C Power Cable 5V 2A Adapter Sleeve(16A4)
  • Page 4 ◆ LED Power Indicator It shows green light when the monitor is "On" and shows red light when the monitor is stands by. There is no light when the monitor is "Off". Power Press once to turn on the monitor and press again to turn off the monitor.
  • Page 7 2. be able to stably output 5V 2.0A current to the monitor (if the phone cannot supply sufficient current, please connect the adapter to DC IN port of the monitor.) As shown in the fig., use GeChic USB Type-C video cable (optional) to con- nect the monitor's USB-C port to the computer's USB Type-C(DP Alt) port.
  • Page 8 3mm thick, otherwise it will put pres- sure and cause malfunction on the monitor. To 5V 2A Power The Gechic label is on the FRONT of the sleeve, which is the thick side to protect the screen panel. Please put the thick side...
  • Page 9: Monitor Arm

    Use the M16 VESA 75 Aluminum Alloy Bracket (optional) to secure M161H monitor to a monitor arm, wall mount or T1S2 Stand (optional). As shown in the fig., please follow below assembly steps : Use two M4 screws to screw the M16 VESA 75 Aluminum Alloy Bracket to ○...
  • Page 10 ◆ As shown in the Fig., enter "Display Settings" to adjust "Brightness", "Contrast", "Sharpness", etc. 1. ECO Mode: The maximum brightness is at 50 in ECO Mode. 2. Auto Adjust: Launch "Auto Contrast Adjust" and "Auto Brightness Adjust" to adjust brightness and contrast automatically to ensure the highest quality when displaying moving images.
  • Page 11 2. Power On/Off Indicator : Select “No” to turn off the power on/off indica- tor. 3. OSD Button Lock : If "On" is selected, the four OSD buttons are disabled. Press and hold the power button for 5 seconds, the monitor will restore factory settings and enable the four OSD buttons again.
  • Page 12 Panel Wide Screen 16.1 inch(16:9) Resolution 1920x1080 Color Depth 16.7M Colors Brightness 270 (cd/m²) (Typ.) Contrast 1000:1 (Typ.) Viewing Angle 170°(H)/170°(V)(CR>10) Response Time 15ms (Typ.) HDMI-A*1、USB Type-C (DP 1.2)*1 Video Input Earphone Jack(3.5mm mini jack) Audio Output (Support Analog 3.5mm AUX) Support HDCP、HDMI CEC VESA Mount VESA 75(75mm×75mm) &...
  • Page 13 Horizontal Frequency Vertical Frequency Resolution Refresh Rate (kHz) (kHz) 640x480 60Hz 31.469 59.940 720x480 60Hz 29.855 59.710 800x600 60Hz 37.879 60.317 848x480 60Hz 31.02 60.000 960x600 60Hz 37.212 59.635 1024x768 60Hz 48.363 60.004 1152x864 60Hz 53.783 59.959 1280x600 60Hz 37.377 59.900 1280x720 50Hz...
  • Page 14 Problem Solution On Windows 11/10, please go to Settings → System Displays, under Multiple Displays, → 1. How to set M16 screen and select "Extend these Displays". laptop as extended dis- On Mac OS X, please go to System Prefer- play? ences System...
  • Page 15 There is slightly uneven brightness on the screen when displaying different screen pattern. The LCD screen has 99.99% or more effective pixels. 0.01% of pixels or less may not light or may light incorrectly. The On-Lap monitor uses a high quality LCD panel. Nevertheless, pixels on the LCD screen may not light or appear as red or black dots.
  • Page 16 Consult the dealer or an experienced radio/TV technician for help. ˙ Caution: 1. Changes or modifications not expressly approved by GeChic Corp. could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
