INSTALLATION INSTRUCTIONS

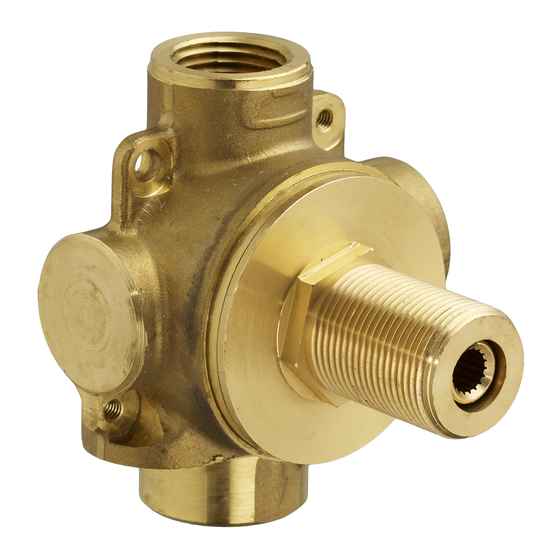

Two Way In-Wall Diverter
Model D35000420
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work has begun.
Channel Locks
Roughing-In DIMENSIONS:
• NOTE: No concealed piping furnished
3-1/8"
(79 mm)
ALL CONNECTIONS 1/2" NPT
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Tubing Cutter
2-9/16"
(65 mm)
FINISHED WALL
2-1/4"
(57 mm)
FINISHED WALL
1-5/8"
(41 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
Adjustable Wrench
TWO WAY
BODY
- 1 -
Te on Tape
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965505 Rev. 1.4 (5/17)
Advertisement
Table of Contents
Related Manuals for DXV D35000420
Summary of Contents for DXV D35000420
- Page 1 INSTALLATION INSTRUCTIONS Two Way In-Wall Diverter Model D35000420 Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 ROUGHING-IN DO NOT SEAL ANY OUTLETS. DIVERTER CAUTION CANNOT BE USED AS A STOP VALVE. • Turn off hot and cold water supplies before beginning. • See Roughing-in Drawing on reverse side. The port with the BATH TUB picture is the high flow. •...
- Page 3 UPPER DISK STEM SHAFT SPRING O-RING WASHER WASHER TWO WAY BODY Two Way In-Wall Diverter MODEL NUMBER D35000420 H2749.XXX M964961-1000A EXTENSION KIT EXTENSION KIT (EXCEPT REM) (FOR REM) A860850.191 PRESSURE SPRING A860607.191 O-RING Replace the “XXX” with appropriate finish code A860848.191...
