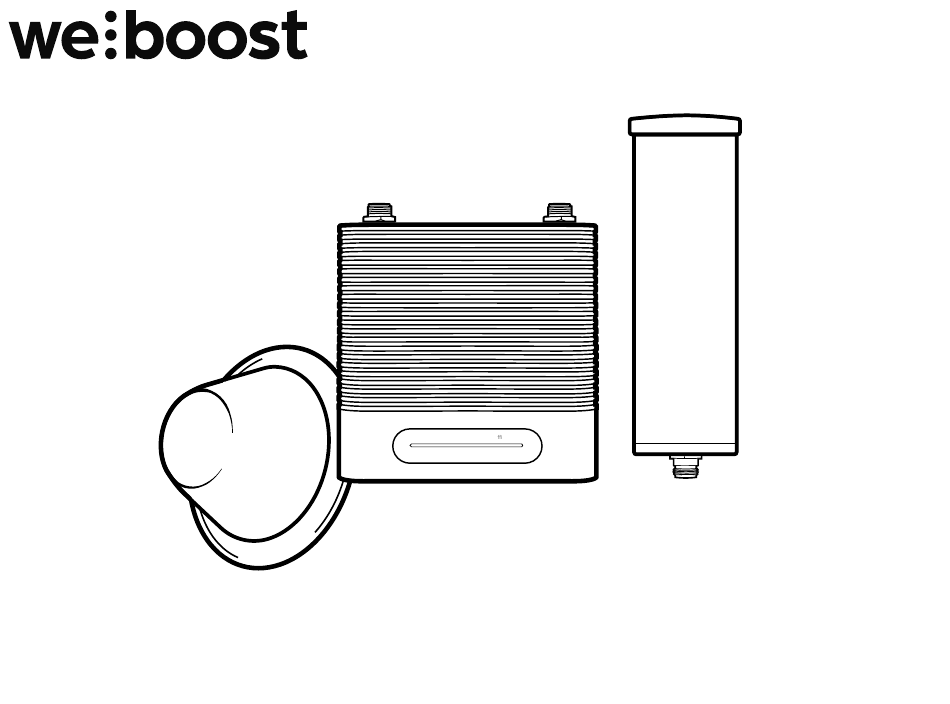

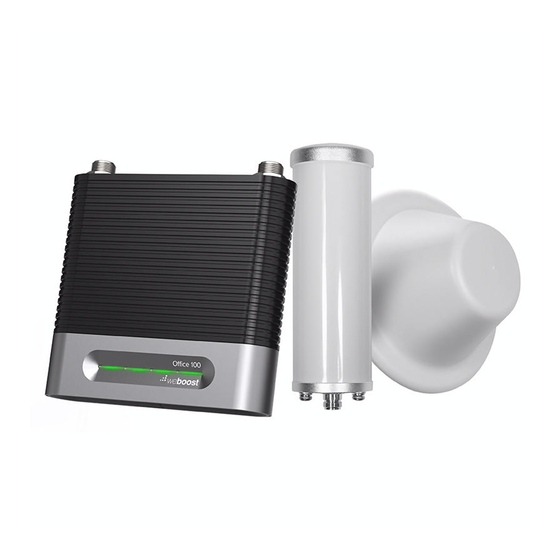

  • Page 1 Installation Guide O ce 100 Office 100 Cell Signal Booster Use our weBoost App to guide you through the installation. See inside page for more details.
  • Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you...
  • Page 3: Table Of Contents

    Index Package Contents ............1 Installation Overview .
  • Page 4: Package Contents

    Package Contents 50 Ohm & 75 Ohm Kits are available Booster & Inside Outside 75’ & 60’ Cables Power Supply Antenna Antenna & Mounting & Cable Clips Hardware Lightning Surge 2’ Cable Protector...
  • Page 5: Installation Overview

    Installation Overview Before finalizing the installation, do a soft install and optimize the system for best coverage. 60 FEET HORIZONTAL OR 25 FEET VERTICAL DISTANCE Troubleshooting section recommends Outside increasing distance further if needed. Antenna 75’ Coax Cable Lightning Surge Protector 60’...
  • Page 6: Preparation

    Preparation You Will Need Make sure the following items are ready for your installation. The tools listed below are not included in your booster kit. 1 to 2 hours ■ Ladder ■ Drill ■ 1” - 2” diameter existing pole for mounting Outside Antenna (#901117 Pole Mount can be purchased separately if needed) ■...
  • Page 7: Step 1 Mount Outside Antenna Toward Nearest Cell Tower

    STEP 1 Mount Outside Antenna Toward Nearest Cell Tower Outside Mounting hardware is included. Attach the Antenna L-bracket to the outside antenna and use the bracket clamp to attach the antenna to a existing roof pipe. NOTE: Mounting on existing roof exhaust pipe L-Bracket would be a good time-saver option.
  • Page 8: Step 2 Inside Antenna & Booster Placement

    STEP 2 Inside Antenna & Booster Placement Place the inside antenna in the ceiling over where you need the greatest signal boost and place booster in your desired location at least 24 in. away from inside antenna. NOTE: Do not connect booster to power until the system is fully installed.
  • Page 9: Step 3 Route & Connect Outside Antenna To Booster

    Connect 2 ft. coax cable to outside antenna, attach the lightning surge protector, then connect the black 75 ft. coax cable and route into building. 2’ Coax Cable Route cable to the Office 100 booster and connect to the port labeled ‘OUTSIDE ANTENNA’ . Booster...
  • Page 10: Step 4 Route & Connect Inside Antenna To Booster

    STEP 4 Route & Connect Inside Antenna To Booster Connect the black 60 ft. coax cable to inside antenna and route to the Office 100 booster and connect to the port labeled ‘INSIDE ANTENNA’ . Inside Antenna Booster...
  • Page 11: Step 5 Power Up The Booster & Optimize The System

    STEP 5 Power Up The Booster & Optimize The System Plug the power supply into wall outlet then connect to end of booster labeled “ ” and enjoy your boosted signal. NOTE: We strongly recommend using a power strip with surge protection.
  • Page 12: Measuring Booster Performance

    Measuring Booster Performance We've created an easy way to learn your signal strength and compare it before and after a booster. Download our free weBoost app to get accurate decibel measurements to help you get the best performance from your system.
  • Page 13 (Measuring Booster Performance cont.) Signal Strength (dBm) with weBoost system powered OFF: (dBm here) Signal Strength (dBm) with weBoost system powered ON: (dBm here) Compare Results Compare the decibels (dBm) on the chart below to find what signal strength you fall into.
  • Page 14: Booster Light Patterns

    Booster Light Patterns SOLID GREEN This indicates that your booster is functioning properly and there are no issues with installation. BLINKING GREEN & RED Band has reduced gain. This indicates that one or more of the booster bands has reduced power due to a feedback loop condition called oscillation.
  • Page 15 (Booster Light Patterns cont.) power due to overload from nearby cell tower. This is a built in safety feature to prevent harmful interference with a nearby cell tower. If you are already experiencing the desired signal boost, then no further adjustments are necessary. If you are not experiencing the desired boost in coverage then refer to the Troubleshooting section.
  • Page 16: Troubleshooting

    3 Increase the distance (horizontally or vertically) between the outside and inside antenna. Add included cable if needed. Un-plug and re-plug in power supply. If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance (1-866-294-1660).
  • Page 17 Outside Antenna must be adjusted. Change mount location. Move the outside antenna to a different location of the home/ building to see if the lights turn green. Un-plug and re-plug in power supply. Then secure in place. 1-866-294-1660 www.weboost.com support@weboost.com...
  • Page 18: Safety Guidelines

    Inside Panel and Dome Antennas and at least four feet of distance from Desktop Antenna. Use only the Power Supply provided in this package. Use of a non-weBoost product may damage your equipment. The signal booster unit is designed for use in an indoor, temperature-controlled environment (less than 100 degrees Fahrenheit).
  • Page 19 (Safety Guidelines cont.) FOR MORE INFORMATION ON REQUIREMENTS SET OUT IN ISED CPC-2-1-05, SEE BELOW: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html...
  • Page 20 Antenna Info The following accessories are certified by the FCC to be used with the Office 100 Booster. This radio transmitter 4726A-460060 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
  • Page 21: Specifications

    Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.
  • Page 22: Warranty

    DISCLAIMER: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.
  • Page 23 Notes www.weboost.ca 1-866-294-1660 NEED HELP?
  • Page 24 3301 East Deseret Drive, St. George, UT 1-866-294-1660 www.weboost.ca Copyright © 2021 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents GDE000570_001_12.11.23 NOT AFFILIATED WITH WILSON ANTENNA...
