Summary of Contents for weBoost Drive Reach RV II

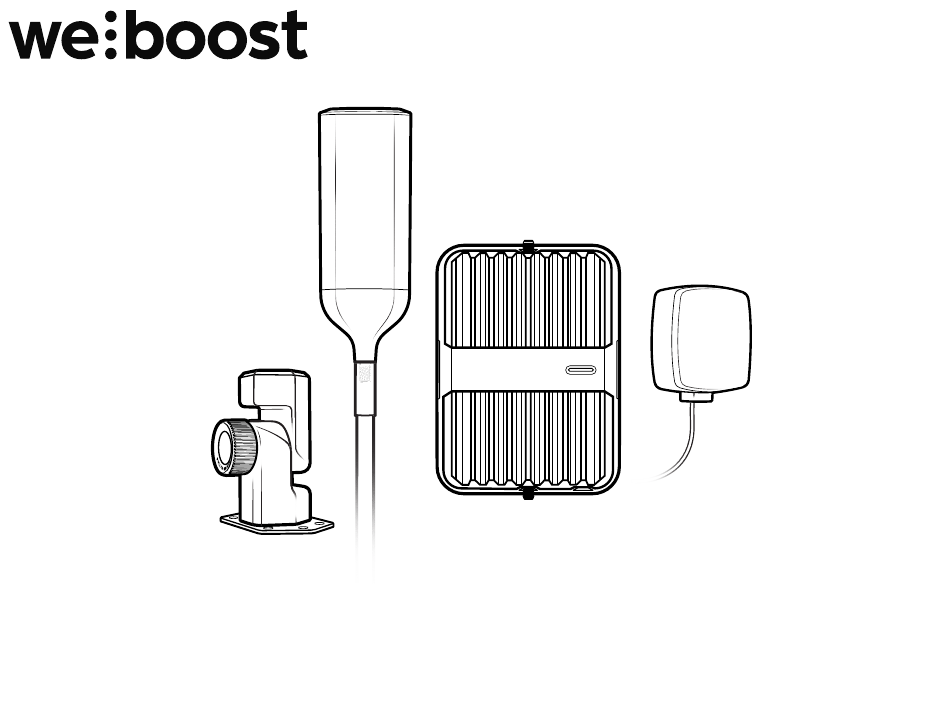

Page 1 Installation Guide Drive Reach RV II Cellular Signal Booster Use the weBoost App to guide you through the installation. See inside page for more details.
Page 2 Download the weBoost App Download the weBoost App Use the app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including Videos to guide you Antenna positioning guide Before and after cell 5G, right away.
Page 3: Table Of Contents
Index Package Contents ............1 Installation Overview .
Page 4: Package Contents
Package Contents Drive Reach Signal Outside Antenna, 13 in. Mast Extension, Inside Booster & Bracket Side-Exit Adapter, Antenna 25 ft. Cable, Cable Spring & Thread Entry Cover & Heat Shrink Tubes Lock Pack Overland Mounting AC/DC Power Supply & Bracket & Mounting Hardware Hardware Power Supply with In-line Fuse Holder...
Page 5: Installation Overview
Installation Overview NOTE: Outside antenna can be positioned horizontally when not in use. System will only function with the antenna in the upright position. Outside Antenna For best performance, maximize the separation between the Inside and Outside Antennas. Folding Mount Bracket Inside Antenna...
Page 6 Best Outside Antenna Position mount antenna above horizontal plane of vehicle & gear For best performance the outside antenna should be mounted above the horizontal plane of the vehicle and/or above other gear on top of the vehicle. Pro tip: By mounting the outside antenna toward the rear of your RV, you allow the cables to create separation and thereby increase performance of the booster.
Page 7: Step 1 Select Mounting Location & Assemble The Outside Antenna
STEP 1 Select Mounting Location & Assemble the Outside Antenna ladder mount Determine where you want the outside antenna on your RV. The outside antenna can be mounted to a ladder or pole, or fixed mounted to the roof or t-track. NOTE: Refer to outside antenna maximum clearance height allowed by law.
Page 8 (STEP 1 cont.) Outside Antenna The antenna should be mounted above gear on top of the vehicle. Once you have determined the best location for the outside antenna, insert coax cable through the mast extension (if using), then through the side- 13 in.
Page 9 (STEP 1 cont.) Outside Antenna Once the outside antenna is assembled add Thread at the correct height, apply the thread Locker locker precisely to thread points only, not to the plastic body of the antenna. Screw mast mast onto the antenna. Connect the 25-foot cable to the outside mast antenna cable.
Page 10: Step 2 Mounting The Outside Antenna With Mounting Bracket
STEP 2 Mount the Outside Antenna Overland Folding Mounting Bracket with Mounting Bracket This kit includes a folding mounting bracket to secure the antenna at 90 (degree) for operation, as well as 45 (degree), 135 (degree) and pull knob to rotate top horizontal for storage.
Page 11 (STEP 2 cont.) Ladder Mounting Option secure Outside Antenna to Brackets, hardware and non-slip rubber pad Mounting Bracket are also provided for securing the folding mounting bracket to 1.0-1.25 inch diameter poles, like roof rails or ladders. push in knob completely to ensure mount is secure...
Page 12 (STEP 2 cont.) secure Outside Antenna to Fixed Roof Mounting Option Mounting Bracket The folding mounting bracket can also be secured to a flat roof surface as shown here. Choose suitable fasteners (e.g., lag screws, well nuts, sheet metal screws, toggle bolts, t-anchors) for the roof material.
Page 13 (STEP 2 cont.) T-Track Mounting Option For RVs with t-tracks, the folding mounting bracket can be installed. Use the provided t-track mounting hardware secure the bracket to the RV t-track, then screw in secure Outside assembled outside antenna. Antenna to Mounting Bracket NOTE: Some t-tracks may not be compatible with the included hardware.
Page 14: Step 3 Route Cable Into Rv
STEP 3 Route Cable into RV Option 1: Using Existing Cable Entry Once the outside antenna is mounted and secured, route the coax cable into the RV. There are different options to achieve this. A good time-saver would be to use a existing junction box or cable gland for a satellite or solar panels.
Page 15 (STEP 3 cont.) RV Pop-Out Option 2: Using Pop-Out for cable from Cable Entry Outside Antenna If your RV has a slide-out, the cable can be routed through the rubber gasket and into the area where the booster will be placed. rubber gasket...
Page 16 (STEP 3 cont.) Outside Antenna & Mount Option 3: Installing Cable Entry Gland Select a suitable location on top of the RV that provides a clear path for the cable. Drill a hole that the cable and connector will fit snugly into.
Page 17: Step 4 Mount The Inside Antenna
STEP 4 Mount the Inside Antenna Identify a place to mount the inside antenna where a stronger signal is desired and within reach of the booster. The antenna can be wall mounted using the provided Velcro® adhesive pad. NOTE: Do not mount the inside antenna where an airbag will deploy.
Page 18: Step 5 Booster Location & Connect Coax Cables
STEP 5 Booster Location & Velcro® strips Connect Coax Cables Find an accessible location to place the booster that has good air flow. The booster includes a mounting bracket that provides different mounting options. It can be secured with Velcro® strips, screws or zip ties. screw hole screw hole zip ties...
Page 19 (STEP 5 cont.) from Outside Antenna Connect the coax cable from the outside antenna to the port labeled the Outside Antenna on the booster. Then connect the cable from the inside antenna to the port labeled the Inside Antenna on the booster. from Inside Antenna...
Page 20: Step 6 Connect Power Supply To Booster
STEP 6 Connect Power Supply to Booster Option 1: AC/DC Power Supply Connect the AC/DC power supply cord to the end of the booster, labeled 12V DC, and connect into a 12V wall plug. There is also a hardwire power supply included that will connect directly to the RVs 12V power system.
Page 21: Hardwire Power Option
(STEP 6 cont.) Option 2: Hardwire Power You Will Need Cable crimper tool Fuse tap Electrical tape Butt connector or wire nuts Use the steps below as a general template for wiring the power. There are multiple options for wiring and steps will vary depending on the RV type. ■...
Page 22 (STEP 6 cont.) tap into an existing 12V circuit that can handle the additional load of the booster (less than 2 amps). ■ For safety, turn off the power. Before working on the electrical system, turn off the main 12V power switch or disconnect the RV from shore power and battery to prevent electrical hazards.
Page 23 (STEP 6 cont.) ■ Complete the power connection. Attach the barrel end of the included power supply to the booster. ■ Restore power and test. Turn the 12V power back on by switching on the main 12V power or reconnecting the RV to shore power and battery. Use a multimeter to confirm the correct voltage (12V) at the booster unit (optional).
Page 24: Booster Light Patterns
Booster Light Patterns SOLID GREEN This indicates your weBoost Drive Reach is functioning properly and there are no issues with installation. SOLID RED Band has shutoff. This is due to a feedback loop condition called oscillation. This is a built in safety feature that causes a band to shut off to prevent harmful interference with a nearby cell tower.
Page 25 (Booster Light Patterns cont.) NOTE: The signal booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting, you must initiate a new power cycle by disconnecting and then reconnecting power to the booster.
Page 26: Troubleshooting
Note: Horizontal separation of the two antennas typically requires a shorter separation distance than vertical separation. If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance (1-866-294-1660).
Page 27 How can I contact customer support? Customer Support can be reached Monday through Friday by calling 1-866-294-1660, or through our support site at support.weboost.com. Why do I need to create distance between the outside antenna and inside antenna? Antennas connected to a booster create spheres of signal. When these spheres overlap, a condition called oscillation occurs.
Page 28: Safety Guidelines
Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. Connecting this signal booster directly to the cell phone with use of an adapter will damage the cell phone. RF Safety Warning: Any antenna used with this device must be located at least 8 inches (20 cm) from all persons.
Page 29 (Safety Guidelines cont.) FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER IN THE U.S., PLEASE GO TO THE LINK BELOW: https://www.weboost.com/carrier-registration...
Page 30: Antenna Info
Antenna Info The following accessories are certified by the FCC to be used with the Drive Reach Booster. This radio transmitter 4726A-460061 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
Page 31: Specifications
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.
Page 32: Warranty
DISCLAIMER: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.
Page 33 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
Page 34 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
Page 35 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
Page 36 3301 East Deseret Drive, St. George, UT 1-866-294-1660 www.weboost.com support@weboost.com Copyright © 2024 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000603_001_06.24.24...
