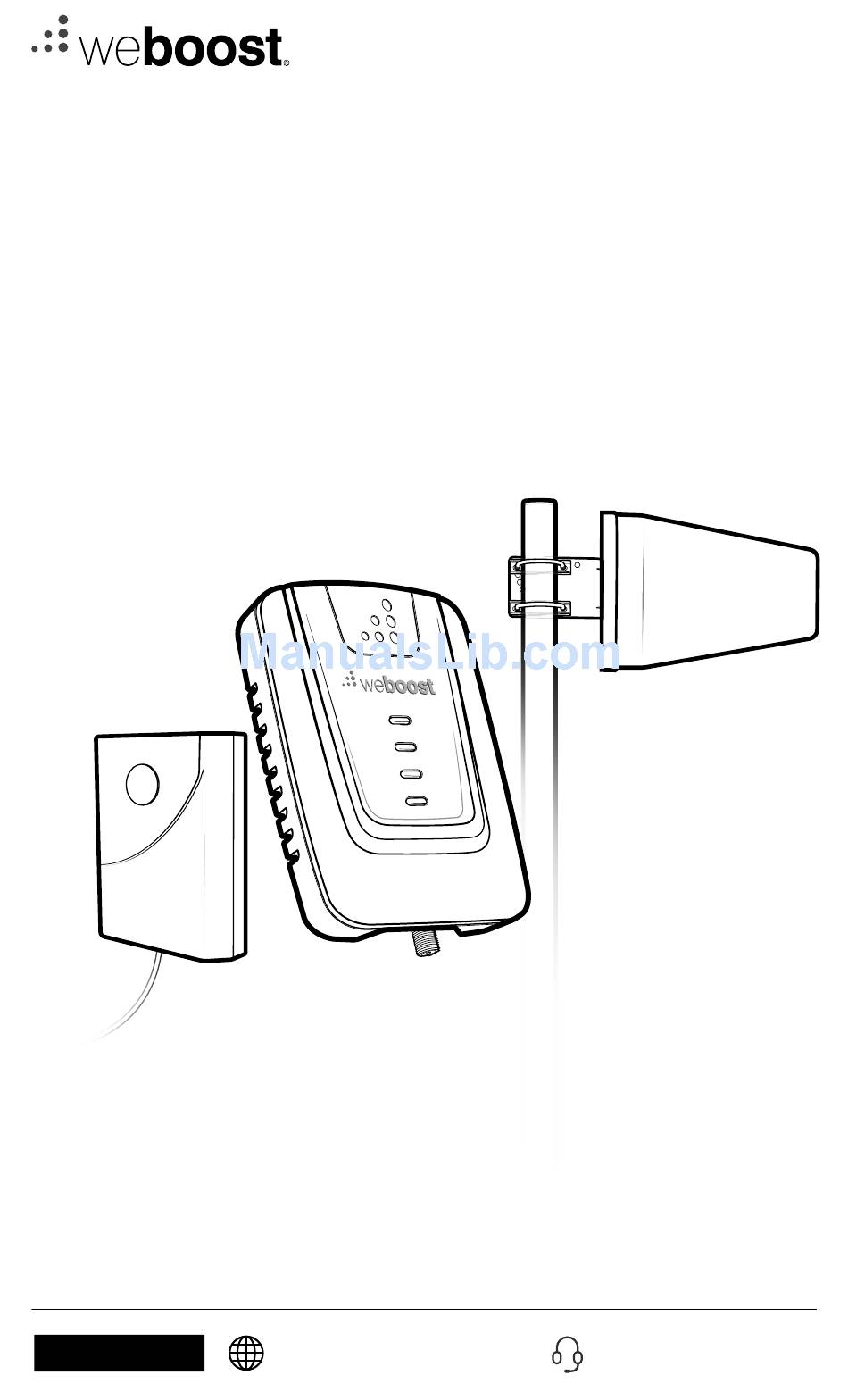

- Page 1 A WILSON ELECTRONICS BRAND CONNECT RV 65 RV Cellular Signal Booster With Telescoping Pole User Manual support.weboost.com 866.294.1660 NEED HELP?
-
Page 2: Table Of Contents
______ Index Package Contents Mount Outside Antenna STEP 1: Mount Telescoping Pole To RV STEP 2: Booster Location STEP 3: Mount Inside Antenna STEP 4: Connect Power Supply STEP 5: Test System: Lights Safety Guidelines Specifi cations Warranty... -
Page 3: Package Contents
Contents Contents of Box 1 Booster Inside Outside Coax Cables Power Antenna Antenna 2 - 15ft. 1 - 30ft. Supply + Flat Cable Contents of Box 2 Telescoping Ground Wall Pole Mount Mounts CONNECT RV 65 RV CELLULAR SIGNAL BOOSTER... -
Page 4: Step 1: Mount Outside Antenna
Run the coax cable through L-Bracket and mount using the phillips screws and lock washers. NOTE: Do not over tighten. Drip hole Connect coax cable to outside antenna after mounting to telescoping pole. RV CELLULAR SIGNAL BOOSTER CONNECT RV 65... -
Page 5: Step 2: Mount Telescoping Pole To Rv
NOTE: DO NOT INSTALL POLE ON RV UNTIL STABILIZER JACKS AND WHEELS CHOCKS ARE IN PLACE AND RV IS IMMOBILIZED. Recommended placement Stabilizer Wheel chocks in jacks down place WARNING: Check for and avoid any powerlines or overhead obstructions there may be. CONNECT RV 65 RV CELLULAR SIGNAL BOOSTER... - Page 6 We recommend using the side of a slider. Just ensure the following: • There is enough clearance for the wall mount to be retracted into the slider. • There is still 4’ of separation. RV CELLULAR SIGNAL BOOSTER CONNECT RV 65...
-
Page 7: Step 3: Booster Location
NOTE: We recommend in a cabinet near a power source. Be sure it’s in a location that the 30’ RG-6 cable can reach. Connect cable from outside antenna to port on booster labeled ‘Outside Antenna’. NOTE: Do not over tighten. CONNECT RV 65 RV CELLULAR SIGNAL BOOSTER... - Page 8 TIP: It’s easiest to create a loop with the coax cable, lift up the gasket, and push the loop through the other side. RV CELLULAR SIGNAL BOOSTER CONNECT RV 65...
-
Page 9: Step 4: Mount Inside Antenna
Mount inside antenna using included 3M command strips and connect coax cable. Be sure to have adequate distance from outside antenna. connect to booster 3M Command Strips Wall Bracket Apply 3M Command Strips on wall bracket CONNECT RV 65 RV CELLULAR SIGNAL BOOSTER... - Page 10 ______ (STEP 4 Mount Inside Antenna cont.) Connect coax cable to inside antenna and to booster port labeled ‘Inside Antenna’. RV CELLULAR SIGNAL BOOSTER CONNECT RV 65...
-
Page 11: Step 5: Connect Power Supply
Step 5: Connect Power Supply Connect power supply to booster. Plug the power supply into a 120V power outlet in the RV. If your Connect RV 65 is working correctly, the lights will be green (for blinking lights see ‘Test System: Lights’ section). -
Page 12: Test System: Lights
Un- plug and re-plug in power supply. 4 BEST: Increase the distance (horizontally or vertically) between the Outside and Inside Antenna. Add cable if needed. Un-plug and re- plug in power supply. RV CELLULAR SIGNAL BOOSTER CONNECT RV 65... - Page 13 If you have green lights, but poor coverage: • Rotate the Outside Antenna in small increments. Un-plug and re-plug power supply. • Move the Outside Antenna to a diff erent location. Un-plug and re-plug power supply. support.weboost.com 866.294.1660 NEED HELP? CONNECT RV 65 RV CELLULAR SIGNAL BOOSTER...
-
Page 14: Safety Guidelines
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER, PLEASE SEE BELOW: Sprint: http://www.sprint.com/legal/fcc_boosters.html... - Page 15 ______ Antenna Kit Options The following accessories can used with the Connect RV 65. INSIDE ANTENNA EXPANSION KITS 50 OHM OUTSIDE ANTENNA KITS Kit 314475 – 0630 75 Ohm Wide Band Directional Kit 309900-50N Kit 314453-5825 30’ RG6 Cable 2- Wall Panel antennas...
-
Page 16: Specifi Cations
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by weBoost could void the authority to operate this equipment. RV CELLULAR SIGNAL BOOSTER CONNECT RV 65... -
Page 17: Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... - Page 18 ______ Notes RV CELLULAR SIGNAL BOOSTER CONNECT RV 65...
- Page 19 ______ Notes CONNECT RV 65 RV CELLULAR SIGNAL BOOSTER...
- Page 20 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2016 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000078_Rev01_04.06.18...
