- Page 1 Installation Guide Drive Sleek Vehicle Signal Booster Use our weBoost App to guide you through the installation. See inside page for more details.
- Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you...
-
Page 3: Table Of Contents
Index Package Contents ............1 Installation Overview . -
Page 4: Package Contents

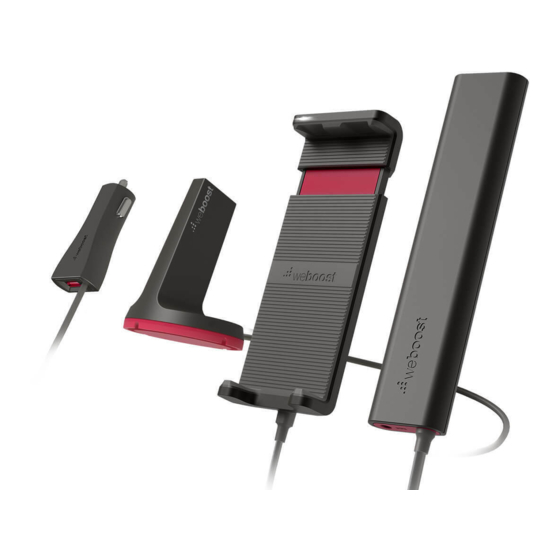

Package Contents Sleek Outside Signal Booster Magnetic Adhesive Cradle Antenna & Power Supply Vent Mount Magnetic (for Cradle) Dash Mount (for Cradle) -
Page 5: Installation Overview
Installation Overview Outside Antenna Inside Antenna to power Booster WORKS WITH ALL VEHICLES... -
Page 6: Step 1 Mount Outside Antenna
STEP 1 Mount Outside Antenna Identify a location on the top of your vehicle 12 in. away from windows (including sunroofs) that is: • Near the center of the roof • At least 12 inches away from any other antennas •... - Page 7 (STEP 1 cont.) Mount the outside antenna by placing on top of vehicle. NOTE: For aluminum roofs, an adhesive disk is included to mount the outside antenna (do not use if outside antenna will magnetize to the top of your vehicle). route from any side WORKS WITH ALL VEHICLES...
-
Page 8: Step 2 Route & Connect Booster
STEP 2 Route & Connect Booster routed into rear side door Route the cable into the vehicle. See examples below. NOTE: The cable is strong enough that it may be shut in most vehicle doors without damaging the cable. routed into top of hatchback door Car/Sedan: Cable routed into rear side door. - Page 9 (STEP 2 cont.) Connect the cable from the outside antenna to the booster port labeled ANTENNA Booster simply pressing the connector in until you hear a “click”. cable from Outside Antenna NOTE: Connecting cable from outside antenna to booster does not take much force.
- Page 10 (STEP 2 cont.) bottom side of Booster Velcro ® The included Velcro® can be used to mount the booster out-of-the way on the floor under a seat or mounted to the side of the trunk. It is best to mount in a place where the cables cannot be tripped over or snagged (damaging the booster).
-
Page 11: Step 3 Route Cable To Front Of Vehicle
STEP 3 Route Cable To Front Of Vehicle We recommend routing the 15ft. fixed cable from the booster, under mats and between seats up to the front of the vehicle where the to front cradle will be located. of vehicle... - Page 12 (STEP 3 cont.) Connect booster cable to cradle cable. Cradle snap-in connectors...
-
Page 13: Step 4 Connect System To Power
STEP 4 Connect System To Power connect power supply to 12v port Connect the power to the 12V* CLA port on your vehicle and route power cable back to the booster. NOTE: We recommend routing with the same path as the cradle/booster cable (under mats and between seats). - Page 14 (STEP 4 cont.) Connect power cable to booster port labeled Booster NOTE: The booster will be on whenever there is power from the 12V CLA port. If your vehicle always has power going to this port, you may want to unplug this when you’re not driving so the cable from Power Supply booster does not drain your battery.
-
Page 15: Step 5 Insert Phone Into Cradle
STEP 5 Insert Phone Into Cradle Make sure you have plenty of slack in the insert phone into Cradle to boost signal cable going up to the cradle (Velcro® straps included to manage excess cable). Insert your phone into cradle and watch your signal increase! Cradle extends... -
Page 16: Measuring Booster Performance
Measuring Booster Performance We've created an easy way to learn your signal strength and compare it before and after a booster. Download our free weBoost app to get accurate decibel measurements to help you get the best performance from your system. - Page 17 (Measuring Booster Performance cont.) Signal Strength (dBm) with weBoost system powered OFF: (dBm here) Signal Strength (dBm) with weBoost system powered ON: (dBm here) Compare Results Compare the decibels (dBm) on the chart below to find what signal strength you fall into.
-
Page 18: Troubleshooting
Check/secure power connections to the CLA, booster, and cradle. If light shuts off, remove from vehicle port and plug back in to reset the system. For any questions or assistance contact our weBoost Customer Support Team (1-866-294-1660). Dropped Calls If you are regularly experiencing dropped calls in the same areas, turn off VoLTE/HD Voice in your phone’s settings. -
Page 19: Safety Guidelines
Safety Guidelines Use only the Power Supply provided in this package. Use of a non-weBoost product may damage your equipment. FCC requires to never use the cell phone in the cradle next to your ear. RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons. - Page 20 (Safety Guidelines cont.) FOR MORE INFORMATION ON REQUIREMENTS SET OUT IN ISED CPC-2-1-05, SEE BELOW: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html...
- Page 21 Antenna Info The following accessories are certified by the FCC to be used with the Drive Sleek. This radio transmitter 4726A-460035 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
-
Page 22: Specifications
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. -
Page 23: Warranty
DISCLAIMER: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. - Page 24 3301 East Deseret Drive, St. George, UT 1-866-294-1660 www.weboost.com support.weboost.com Copyright © 2017 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents GDE000581_001_02.02.24 NOT AFFILIATED WITH WILSON ANTENNA...
