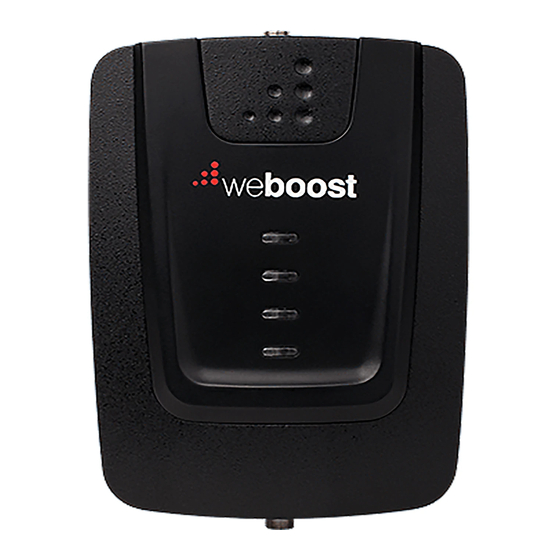

weBoost HOME 4G User Manual
Cellular sinal booster
Hide thumbs
Also See for HOME 4G:
- Installation instructions manual (32 pages) ,
- User manual (24 pages) ,
- Quick install manual (2 pages)
Related Manuals for weBoost HOME 4G
Summary of Contents for weBoost HOME 4G
- Page 1 A WILSON ELECTRONICS BRAND Home 4G Cellular Signal Booster User Manual support.weboost.com 866.294.1660 NEED HELP?
-
Page 2: Table Of Contents
______ Index Package Contents Preparation Connect Inside Antenna To Booster STEP 1-A & B: Point Outside Antenna Toward Nearest Cell Tower STEP 2-A: Mount Bracket To Outside Antenna STEP 2-B: Route & Connect Cable To System STEP 3: Power Up The Booster STEP 4: Measuring Booster Performance Light Patterns... -
Page 3: Package Contents
______ Package Contents Inside Outside Window Home 4G 30' Cables Antenna Antenna Entry Cable Qty. 2 Power Roof/Pole Wall Mount Cable Supply Mount Bracket Connector Bracket HOME 4G CELL PHONE SIGNAL BOOSTER... -
Page 4: Preparation
Recommended: Power Strip with surge protection NOTE: These instructions will walk you through a “soft” install process to fi nd the optimal locations for the inside and outside antennas, then through the process of the permanent installation. CELL PHONE SIGNAL BOOSTER HOME 4G... -
Page 5: Step 1-A & B: Connect Inside Antenna To Booster
______ Step 1-A & B: Connect Inside Antenna To Booster Connect Inside Antenna cable to the bottom port on Home 4G booster labeled ‘INSIDE’ and place Inside Antenna in weak signal area at least 18 inches away from booster. NOTE: Do not connect booster to power until the system is fully installed. -
Page 6: Step 2-A: Point Outside Antenna Toward Nearest Cell Tower
NOTE: The Outside Antenna must be at least 20 feet horizontal or 50 feet vertical from the Inside Antenna for best performance. Make sure the Inside Antenna and Outside Antennas are setup so they are facing away from each other. CELL PHONE SIGNAL BOOSTER HOME 4G... -
Page 7: Step 2-B: Mount Bracket To Outside Antenna
L-Bracket to a pole. Cell Tower Pole Mounting Option Pole (1.25”-2.0”dia.) L-Bracket Outside Antenna U-bolt & Pole Bracket NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. HOME 4G CELL PHONE SIGNAL BOOSTER... - Page 8 ______ (STEP 2-B cont.) Wall Mounting Option Tap anchors in Drill holes using Fasten bracket to back 3/16 inch bit Secure bracket to wall of Outside Antenna mounting Outside Antenna on wall bracket sideview CELL PHONE SIGNAL BOOSTER HOME 4G...
-
Page 9: Step 3: Route & Connect Cable To System
Booster Window Entry Cable RG-6 Cable RG-6 Cable A Window Entry Cable is provided to help make cable entry easier. Route cable to the Home 4G booster and connect to top port labeled ‘OUTSIDE’. Outside Antenna Cell Tower Inside Antenna... -
Page 10: Step 4: Power Up The Booster
______ Step 4: Power Up The Booster Plug the Power Supply into wall outlet then connect to Home 4G Booster and enjoy your boosted cell signal! to power Outside Antenna Booster Inside Antenna Window Entry Cable RG-6 Cable RG-6 Cable... -
Page 11: Measuring Booster Performance
Test Mode’. Tip: Using the bar indicator on your cell phone can assist you in fi nding the strongest signal direction as well as placing calls in diff erent locations. For changes/updates on this issue, periodically go to weboost.com/signalstrength. Android™ Settings > About Phone > Status or Network > Signal Strength or Network Type and Strength (exact options/wording depends on phone model). - Page 12 DEAD ZONE SIGNAL STRENGTH 3G/1x -100 -101 -109 -110 4G/LTE -105 -106 -110 -111 -119 -120 DID YOU KNOW a signal increase of just 3dB is 2 times the power and signal amplifi cation! CELL PHONE SIGNAL BOOSTER HOME 4G...
-
Page 13: Light Patterns
Band has shutoff due to overload from nearby cell tower. Outside Antenna must be adjusted. Refer to Troubleshooting section. Light Off If the Signal Booster’s light is off, verify your power supply has power. HOME 4G CELL PHONE SIGNAL BOOSTER... -
Page 14: Troubleshooting
Wall Mount Option: Change mount location. Move the Outside Antenna to a wall outside the building to see if the lights turn green. Un-plug and re-plug in power supply. support.weboost.com 866.294.1660 NEED HELP? CELL PHONE SIGNAL BOOSTER HOME 4G... - Page 15 75 Ohm 4G Dome Antenna 75’ RG6 Cable 10’ RG174 cable N-Male to F-Female adapter *May need separate adapter Kit 311201-0620 Kit 304419-0610 Omni Directional w/ F-Female 75 Ohm 4G Dome Antenna 20’ RG6 Cable 10’ RG6 cable HOME 4G CELL PHONE SIGNAL BOOSTER...
-
Page 16: Safety Guidelines
Inside Panel and Dome antennas and at least four feet of separation distance from desktop Antenna. Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. -
Page 17: Specifi Cations
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. -
Page 18: Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... - Page 19 Notes support.weboost.com 866.294.1660 NEED HELP? HOME 4G CELL PHONE SIGNAL BOOSTER...
- Page 20 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2016 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000086_Rev01_07.23.18...
