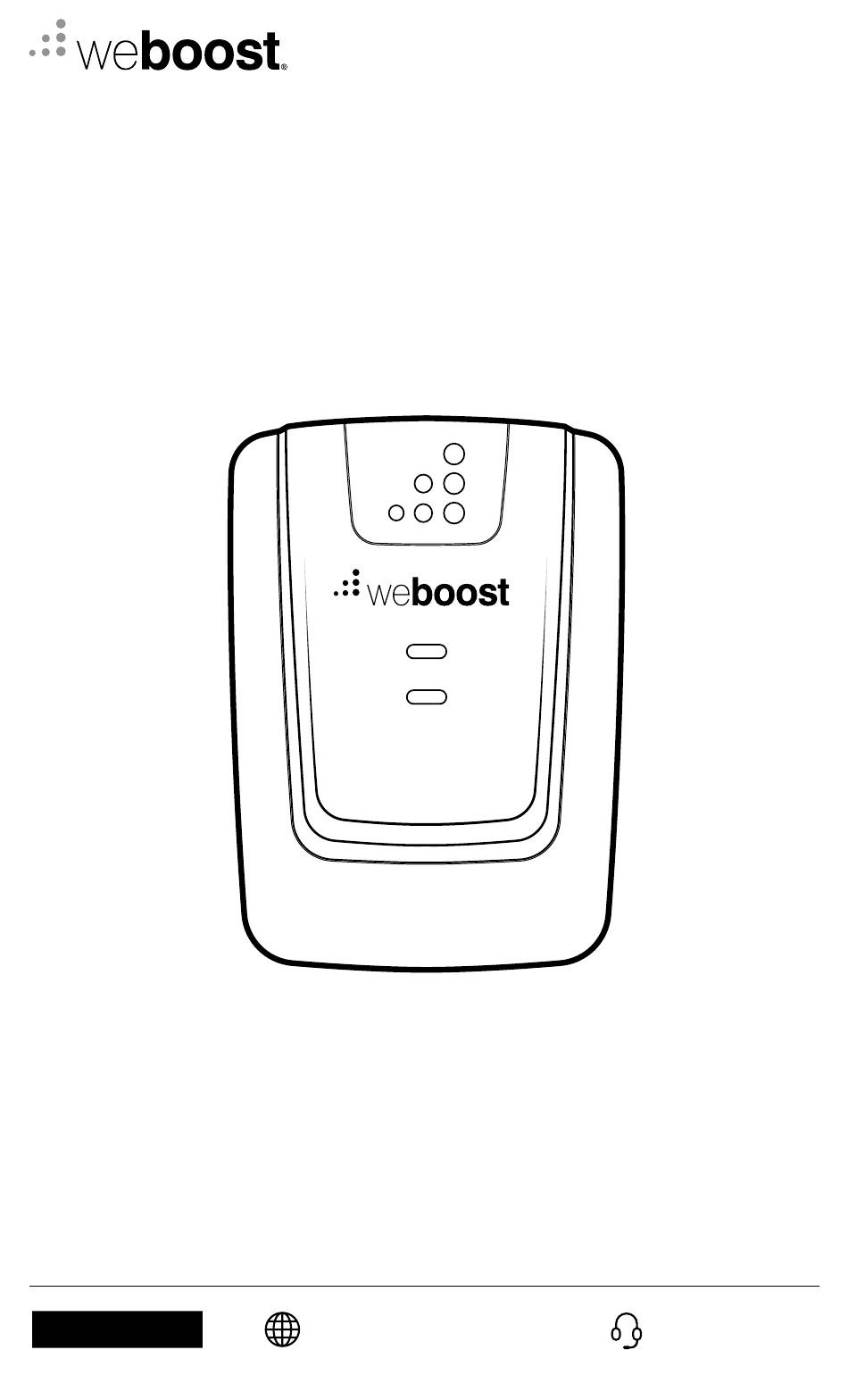

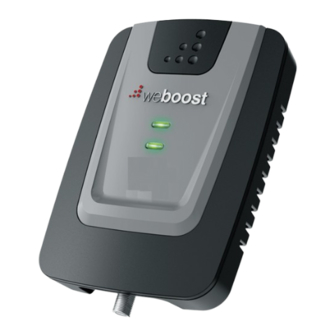

- Page 1 A WILSON ELECTRONICS BRAND Basic Home Cell Signal Booster Installation Guide support.weboost.com 866.294.1660 NEED HELP?
- Page 2 ______ Index Package Contents Preparation Connect Inside Antenna To Booster STEP 1-A & B: Point Outside Antenna Toward Nearest Cell Tower STEP 2-A: Mount Bracket To Outside Antenna STEP 2-B: Route & Connect Cable To System STEP 3: Power Up The Booster STEP 4: Measuring Booster Performance Light Patterns...
- Page 3 ______ Package Contents Inside Outside Window Basic 2-30’ Antenna Antenna Entry Cable Home Cables Power Roof/Pole Wall Mount Cable Supply Mount Bracket Connector Bracket BASIC HOME CELL PHONE SIGNAL BOOSTER...
- Page 4 Recommended: Power Strip with surge protection NOTE: These instructions will walk you through a “soft” install process to find the optimal locations for the inside and outside antennas, then through the process of the permanent installation. CELL PHONE SIGNAL BOOSTER BASIC HOME...
-
Page 5: Step 1-A & B: Connect Inside Antenna To Booster
______ Step 1-A & B: Connect Inside Antenna To Booster Connect Inside Antenna cable to the bottom port on Basic Home booster labeled ‘INSIDE’ and place Inside Antenna in weak signal area at least 18 inches away from booster. NOTE: Do not connect booster to power until the system is fully installed. -
Page 6: Step 2-A: Point Outside Antenna Toward Nearest Cell Tower
NOTE: The Outside Antenna must be at least 50 feet horizontal or 20 feet vertical from the Inside Antenna for best performance. Make sure the Inside Antenna and Outside Antennas are setup so they are facing away from each other. CELL PHONE SIGNAL BOOSTER BASIC HOME... -
Page 7: Step 2-B: Mount Bracket To Outside Antenna
L-Bracket to a pole. Cell Tower Pole Mounting Option Pole (1.25”-2.0”dia.) L-Bracket Outside Antenna U-bolt & Pole Bracket NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. BASIC HOME CELL PHONE SIGNAL BOOSTER... - Page 8 ______ (STEP 2-B cont.) Wall Mounting Option Tap anchors in Drill holes using Fasten bracket to back 3/16 inch bit Secure bracket to wall of Outside Antenna mounting Outside Antenna on wall bracket sideview CELL PHONE SIGNAL BOOSTER BASIC HOME...
-
Page 9: Step 3: Route & Connect Cable To System
Antenna Booster Window Entry Cable RG-6 Cable RG-6 Cable A Window Entry Cable is provided to help make cable entry easier. Route cable to the Basic Home booster and connect to top port labeled ‘OUTSIDE’. Outside Antenna Cell Tower Inside... - Page 10 ______ Step 4: Power Up The Booster Plug the Power Supply into wall outlet then connect to Basic Home booster and enjoy your boosted cell signal! to power Outside Antenna Booster Inside Antenna Window Entry Cable RG-6 Cable RG-6 Cable...
-
Page 11: Measuring Booster Performance
For changes/updates on this issue, periodically go to weboost.com/signalstrength. Android™ Settings > About Phone > Status or Network > Signal Strength or Network Type and Strength (exact options/wording depends on phone model). -
Page 12: Compare Results
POOR DEAD ZONE SIGNAL STRENGTH 3G/1x -100 -101 -109 -110 DID YOU KNOW a signal increase of just 3dB is 2 4G/LTE -105 -106 -110 -111 -119 -120 times the power and signal amplification! CELL PHONE SIGNAL BOOSTER BASIC HOME... -
Page 13: Light Patterns
Band has shutoff due to overload from nearby cell tower. Outside Antenna must be adjusted. Refer to Troubleshooting section. Light Off If the Signal Booster’s light is off, verify your power supply has power. BASIC HOME CELL PHONE SIGNAL BOOSTER... -
Page 14: Troubleshooting
Wall Mount Option: Change mount location. Move the Outside Antenna to a wall outside the building to see if the lights turn green. Un-plug and re-plug power supply. support.weboost.com 866.294.1660 NEED HELP? CELL PHONE SIGNAL BOOSTER BASIC HOME... -
Page 15: Antenna Kit Options
Wall Mount Panel Antenna 311155 RG-11 Wall Mount Panel Antenna 304412 Wilson-400 4G Dome Antenna 304412 RG-58 4G Dome Antenna 304419 RG-11 4G Dome Antenna 304419 RG-174 4G Dome Antenna 304419 RG-6 4G Dome Antenna BASIC HOME CELL PHONE SIGNAL BOOSTER... - Page 16 4G Omni Antenna 304421 RG-174 4G Omni Antenna 304421 RG-6 4G Omni Antenna 304421 RG-58 4G Omni Antenna 304422 Wilson-400 4G Omni Plus Antenna 304422 RG-58 4G Omni Plus Antenna 304422 RG-11 4G Omni Plus Antenna CELL PHONE SIGNAL BOOSTER BASIC HOME...
-
Page 17: Safety Guidelines
Inside Panel and Dome antennas and at least four feet of separation distance from desktop Antenna. Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. -
Page 18: Specifications
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. -
Page 19: Year Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... - Page 20 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2019 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000186_Rev04_05.12.20...
