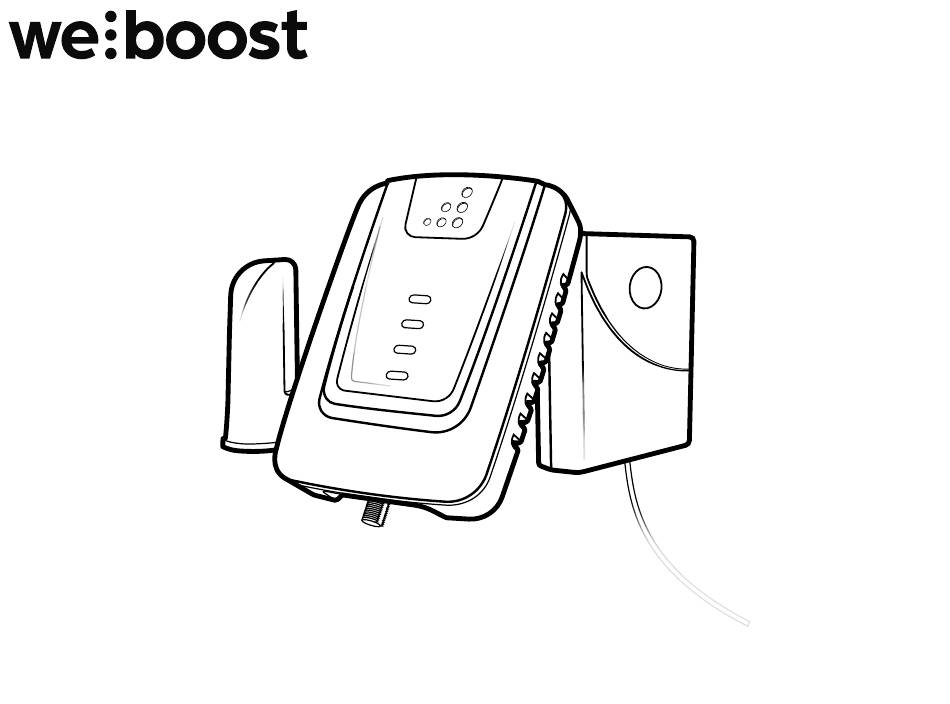

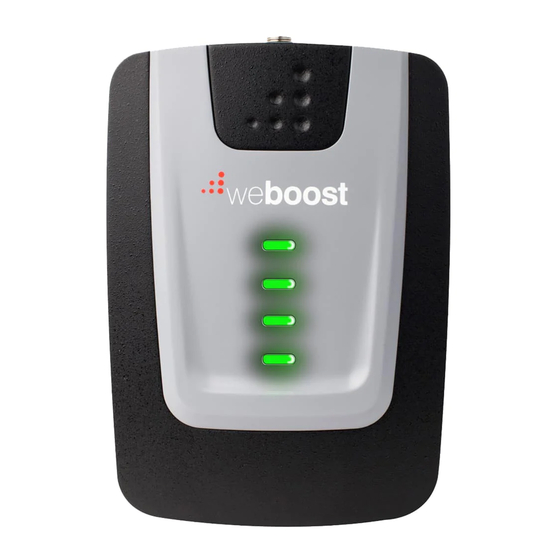

- Page 1 Installation Guide Home Room Cell Signal Booster Use our weBoost App to guide you through the installation. See inside page for more details.
- Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you...
-
Page 3: Table Of Contents
Index Package Contents ............1 Preparation . -
Page 4: Package Contents
Package Contents Home Room Inside Outside 2-30 ft. Flat Window Booster Antenna Antenna Cables Cable Power Roof/Pole Wall Mount Cable Supply Mount Bracket Bracket Connector... - Page 5 Installation Overview Before finalizing the installation, do a soft install and optimize the system for best coverage. 50 FEET HORIZONTAL OR 20 FEET VERTICAL DISTANCE Outside Antenna Cell Tower Inside to power Antenna Booster Window Cable can be used to route cable through window if needed...
-
Page 6: Preparation
Preparation You Will Need Make sure the following materials are prepared and ready for your installation. The tools listed below are not included in your booster kit. 1 to 2 hours 2 people (a person to help with antenna calibration) ■... -
Page 7: Step 1 Connect Inside Antenna To Booster
STEP 1 Connect Inside Antenna to Booster Inside Antenna Place inside antenna in weak signal area at least 18 inches away from booster and connect inside antenna cable to the port on booster 18 in. apart labeled "INSIDE". NOTE: Do not connect booster to power until the system is fully installed. -
Page 8: Step 2 Mount & Point Outside Antenna Toward Cell Tower
Antenna Toward Cell Tower Point the front of the outside antenna toward the nearest cell phone tower. To find the nearest tower, use the weBoost app. This is a critical step of the installation because it will determine the overall performance of the booster system. - Page 9 (STEP 2 cont.) Pole mounting and wall mounting options Outside Antenna are included. The pole mounting option is preferred because it is easier to adjust the outside antenna to point toward the nearest Pole (1.25”-2.0”dia.) cell tower. L-Bracket Attach the L-bracket to the outside antenna. Then, use the U-bolts/pole bracket to attach the L-bracket to a pole.
- Page 10 (STEP 2 cont.) Wall Mounting Option Antenna Bracket If wall mounting option is necessary for mounting the outside antenna, fasten the antenna bracket to the back of the outside antenna and secure the wall bracket to a surface facing a cell tower as shown. Slide outside antenna onto wall bracket.
-
Page 11: Step 3 Route & Connect Cable To System
STEP 3 Route & Connect Cable to System Outside Antenna Connect the white RG-6 cable to outside antenna and route cable into the home. All connections should be hand tightened only. hand A flat window cable is provided to help make tighten cable entry easier. -
Page 12: Step 4 Power Up The Booster & Optimize The System
STEP 4 Power Up the Booster & Optimize the System Plug the power supply into wall outlet then connect to booster. Power NOTE: We strongly recommend using a power Supply strip with surge protection. Booster Power Supply... -
Page 13: Measuring Booster Performance
Measuring Booster Performance & Optimizing the System We've created an easy way to learn your signal strength and compare it before and after a booster. Download our free weBoost app to get accurate decibel measurements to help you get the best performance from your system. - Page 14 (Measuring Booster Performance & Optimizing the System cont.) Signal Strength (dBm) with weBoost system powered OFF: (dBm here) Signal Strength (dBm) with weBoost system powered ON: (dBm here) Compare Results Compare the decibels (dBm) on the chart below to find what signal strength you fall into.
- Page 15 (Measuring Booster Performance & Optimizing the System cont.) You can optimize your system to improve your signal strength by rotating the outside antenna in 1/3 turn increments. After each turn, unplug and re-plug in booster’s power supply, while observing the signal level on your cell phone from the inside antenna’s projected area.
-
Page 16: Booster Light Patterns
Booster Light Patterns SOLID GREEN This indicates that your booster is functioning properly, and there are no issues with installation. SOLID RED Band has shutoff. This is due to a feedback loop condition called oscillation. This is a built in safety feature that causes a band to shut off to prevent harmful interference with a nearby cell tower. - Page 17 If booster's light is off, verify your power supply has power. NOTE: The booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting, you must initiate a new power cycle by disconnecting and then reconnecting power to the booster. 1-866-294-1660 www.weboost.com support@weboost.com...
-
Page 18: Troubleshooting
4 Increase the distance (horizontally or vertically) between the outside and inside antennas. Add included cable if needed. Unplug and replug in power supply. If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance at 1-866-294-1660. - Page 19 How can I contact customer support? Customer Support can be reached Monday through Friday by calling 1-866-294-1660, or through our support site at support.weboost.com. Why do I need to create distance between the inside antenna and the outside antenna? Antennas connected to a booster create spheres of signal. When these spheres overlap, a condition called oscillation occurs.
-
Page 20: Safety Guidelines
Inside Panel and Dome Antennas and at least four feet of distance from Desktop Antenna. Use only the Power Supply provided in this package. Use of a non-weBoost product may damage your equipment. The signal booster unit is designed for use in an indoor, temperature-controlled environment (less than 100 degrees Fahrenheit). - Page 21 (Safety Guidelines cont.) FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER IN THE U.S., PLEASE GO TO THE LINK BELOW: https://www.weboost.com/carrier-registration...
- Page 22 Antenna Info The following accessories are certified by the FCC to be used with the Home Room Booster. This radio transmitter 4726A-460020 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
-
Page 23: Specifications
RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2)) This device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by weBoost could void... -
Page 24: Warranty
DISCLAIMER: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. - Page 25 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
- Page 26 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
- Page 27 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
- Page 28 3301 East Deseret Drive, St. George, UT 1-866-294-1660 www.weboost.com support@weboost.com Copyright © 2019 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents GDE000476_003_10.09.23 NOT AFFILIATED WITH WILSON ANTENNA...
