Installation method

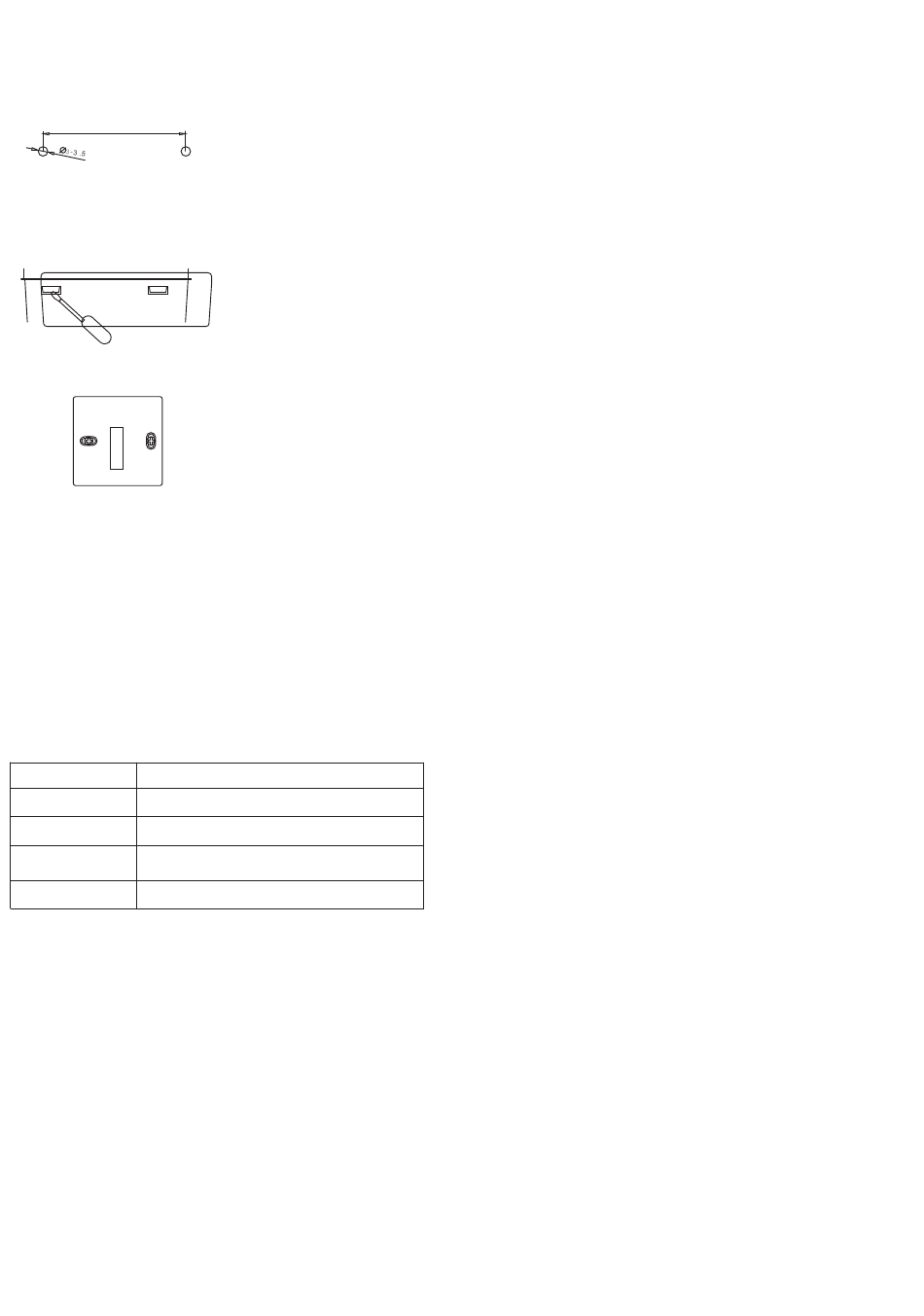

1.Install expansion screw sleeve with pitch 59mm
on the wall.
59
2.Separate the upper cover and the lower cover
with a screwdriver,according to the direction of
the alignment. The wire passes through the back
cover to the slot and leaves about 20cm long
according to the actual situation
3.Fix the bottom shell to the wal,and finally fix
the wire.Cover the front shell on the bottom
shell.
Check step
The intelligent touch screen thermostat is installed where it is
easy for the user to watch the screen and adjust the
temperature setting point.And make the thermostat located in
a place that can represent the overall ambent temperature of
the room.Avoid installing thermostats near cold and heat
sources,such as vents,heaters,outdoors or places where the
sun shine.
Common failure
phenomenon
1.Check whether the batter y is installed upside down
Cant not turn it on
2.Check whether the boot button is valid
Whether the rear shell installation is
LCD garbled code
deformed, it can be loosened and reinstalled.
1.Check whether the connection between the main control board
Show normal and
and the power board is damaged
no output
2.Check if the output has the wrong connection.
There is an error in
Display through the first calibration panel
the temperature of the advanced option.
Treatment method
