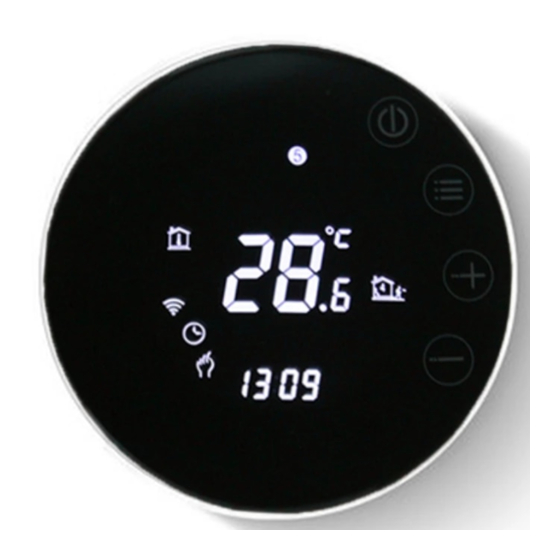

- Page 1 TGR-86 WIFI THERMOSTAT USER GUIDE THIS THERMOSTAT IS SUITABLE FOR WATER HEATING, ELECTRIC HEATING AND GAS BOILER...
- Page 2 TGR-86 WIFI THERMOSTAT USER GUIDE Welcome Thank you for your trust and support. By adopting higher-end technology and more perfect technology, your new thermostat will provide you with the right temperature environment every day in the future, making your life more comfortable and your living environment more stylish and beautiful.
-
Page 3: Product Packaging
TGR-86 WIFI THERMOSTAT USER GUIDE Product packaging Manual----------------- Thermostat host-----------------1 PC 1 PC Qualification certificate------- 1 PC Screw------------------- 2PCS Sensing line (optional)-------- 1 PC Product Model WP Plumbing 3A EP Electric Heating 16A WPB linkage, gas boiler 3A... -
Page 4: User Notes
TGR-86 WIFI THERMOSTAT USER GUIDE User Notes 1. Please read this manual carefully. Improper operation may damage the product or cause dangerous conditions. 2. The installation personnel must be well-trained and experienced service technicians. 3. After installation, please read this manual carefully and operate the product according to the instructions. -
Page 5: Installation Procedure

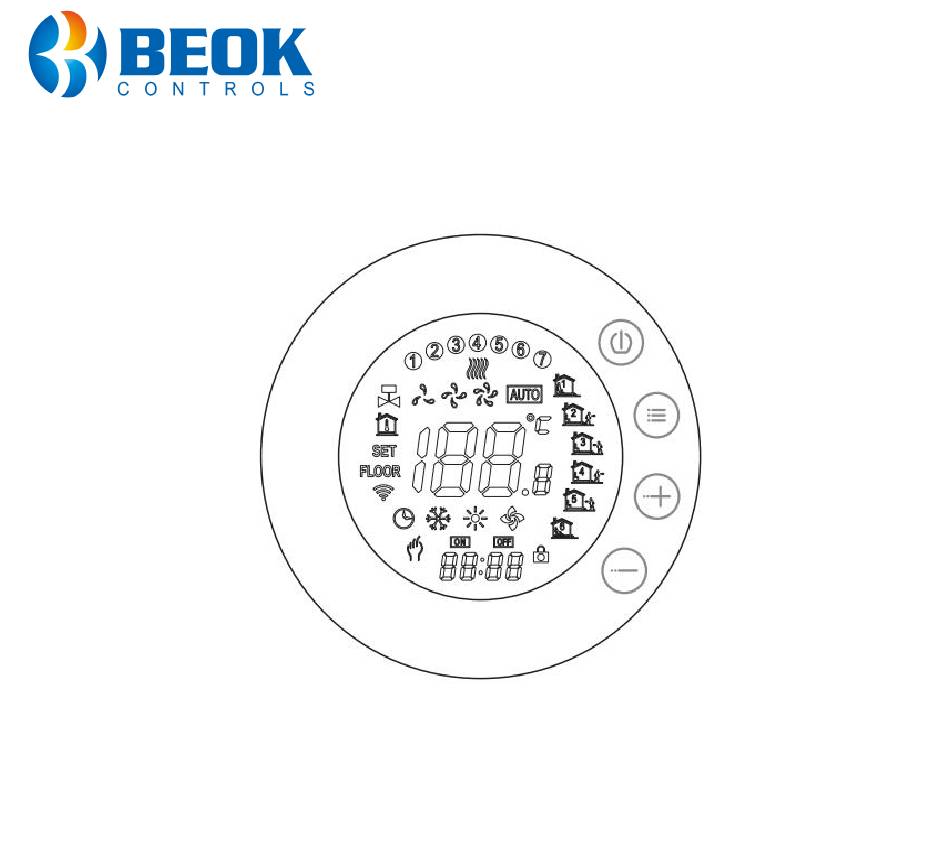

TGR-86 WIFI THERMOSTAT USER GUIDE Installation procedure This product is installed with a standard 86 control switch (in compliance with European regulations) 2. Remove the mounting plate in this direction 1. Slide the mounting plate upward in this direction 3.Fix mounting plate to cassette with 4. - Page 6 TGR-86 WIFI THERMOSTAT USER GUIDE Description of display & Icon...
- Page 7 TGR-86 WIFI THERMOSTAT USER GUIDE Operating Instruction 1. Power on/off: press to turn on/off the thermostat. 2. Press the key to switch between manual and automatic modes. 3. In the automatic mode, press to adjust the temperature to enter the automatic temporary mode.
- Page 8 TGR-86 WIFI THERMOSTAT USER GUIDE Time programming instructions Press and hold the key to enter the programming setting, short press the key to switch the option, press the key or key to adjust each option parameter, and press key to exit and save.
-
Page 9: Advanced Options
TGR-86 WIFI THERMOSTAT USER GUIDE Advanced options When POWER OFF, press the key and the key for 5 seconds to enter the advanced option setting. Press to enter the next option, press to adjust, and press to exit the height Level option. - Page 10 TGR-86 WIFI THERMOSTAT USER GUIDE About WIFI connection Before using the WIFI thermostat for the first time, you should set the WIFI signal and configuration through your smart phone or tablet to allow communication between your connected devices. 1. Download the APP...
- Page 11 TGR-86 WIFI THERMOSTAT USER GUIDE 2.Register Account If you don't have an APP account yet, you can choose to register or log in via SMS verification code. Click "Create a new account", you will enter the Tuya Smart Platform Privacy Policy page. After you click Agree, you will officially enter the...
- Page 12 TGR-86 WIFI THERMOSTAT USER GUIDE The system automatically determines the current country/region. You can also select the country/region manually. After entering your mobile phone number or email address, click "get verification code" . Enter the received verification code, then enter the...
- Page 13 TGR-86 WIFI THERMOSTAT USER GUIDE 3. Add device Click "add device" or"+" on the top right of the APP homepage to enter the "add device" page. Currently, there are two ways to manually add device and search device.
- Page 14 TGR-86 WIFI THERMOSTAT USER GUIDE Find the thermostat product (WIFI model) in the device list. In the specified network mode, the indicator flashes (slowly flashes) and then click the confirm button on the page. Select the device's work area to connect to the WIFI of the Internet and enter the WIFI password.
- Page 15 TGR-86 WIFI THERMOSTAT USER GUIDE If the default mode distribution network is selected, the distribution process APP is shown in figure 1 below, and the distribution network successfully displays the interface shown in figure 2. The name of the device can be...
- Page 16 TGR-86 WIFI THERMOSTAT USER GUIDE If the distribution network fails, the APP will display the page shown in the figure below. You can choose to add or view the help again. Note: if the connection fails, please confirm whether the temperature control device has...
- Page 17 TGR-86 WIFI THERMOSTAT USER GUIDE 4. Display of temperature controller APP interface...
