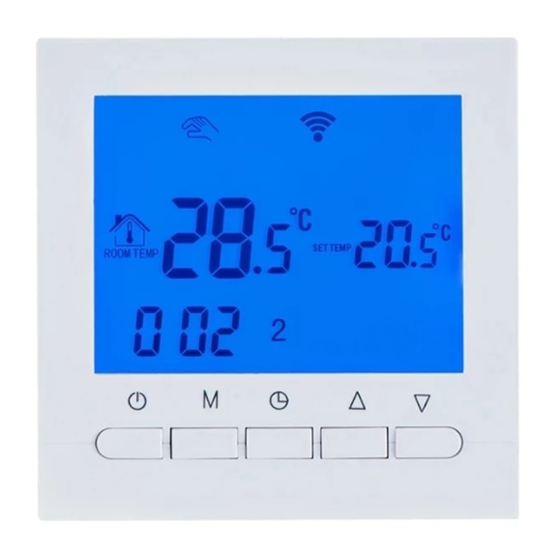

Beok Controls BOT-313 Manual

20
Menu Time setting
Press M to switch operation between manual mode and programmable
mode.
Period Period Icon Defaulted Time Defaulted Temp.
1
2
3
Week
blue
4
5
6
1
Weekend
2
Remark:
(1) The defaulted temperature of period3 and period4 is the same as
period2. Please change it according to the request.
(2) When setting temperature is 00, this period is power off.
7. Advanced Setting
In the state of power-off, long press and hold
advanced setting mode. Then press M to set relative item.
Display Code Function
High limit temp.
SVH
for internal sensor
Low limit temp.
SVL
for internal sensor
Temp.calibration
ADJ
FRE Frost-protection
PON Power memory
Precision
DFI
for room temp.
Linkage terminal
Opt
output direction
WIFI setting
FAC
For Opt:
When the thermostat connect with gas boiler, the terminal short circuit
is extinguished, the open circuit is ignition. Then Turn to the reverse output '01'.
When the Opt is adjusted to 00, thermostat can also be used in the
water floor heating system, the water temperature is too low will prohibit the output
(relay output 3A/200W), this function only suits for wifi linkage function thermostat.
DFI:
Explanation:
For example,If Room temp is 22℃,Hysteresis'DFI'=1.
when room temp rise to 23℃,the relay will stop outputting;
when room temp down to 21℃, the relay will output again and start heating.
DFI is hysteresis for room temp, factory set is 1,if 1 is too big for you,
it can be adjusted to 0.5.
IX. Phone Port Operation Instruction
1. Install APP on phone
For iOS system: Login in App Store, search " Beok Home", you can
download it on your iphone.
Or scan below code to download:
6:00 20℃
8:00 15℃
11:30 15℃
12:30 15℃
17:30
22℃
22:00
15℃
For Android System: Login in Google Play, search "Beok Home", you can
8:00 22℃ download it on your phone.
Or scan below code to download:
23:00
15℃
then press into
Setting And Options Factory Defult
2. Connection Thermostat with Phone
5-99℃ 35℃
Thermostat Setting
5-99℃ 5℃
0.5℃accuracy
Check and calibrate the
actual room temp. calibrate
00：Close
00
Powered off state
01：Open
00：Off
00
01：On
0.5-3℃ 1℃
00:Set temp>Room temp,
relay close 00:
01:Set temp<Room temp, Positive output
relay close
10 or 32: Wifi mode open
In the power off state, long press the up button for 10 seconds
08
08: just display
00: factory reset
At this time, wifi symbol will be twinkling quickly and frequently. It means, you can
connect thermostat with phone now.
When wifi symbol stop twinkling, it means thermostat is successfully connected with
phone.
Connection with Phone
Open Beok Home APP on your phone, you can see APP welcome page
Twinkling Quickly and Frequently:
Connection can start
Twinkling slowly:
Off Line
Twinkling Stops:
Successful Connection
