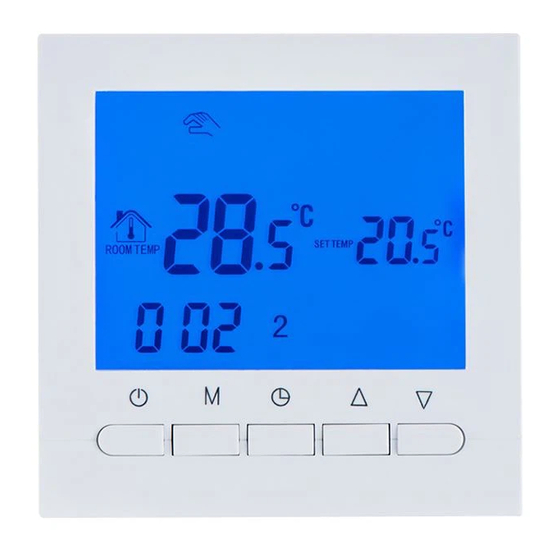

Beok Controls BOT-205 User Manual

BOT-205-X Wireless Heating Thermostat User Manual
Product Specifications
☆ Power Supply: Receiver:230Vac 50/60HZ
Transmitter: 2AA* 1.5V alkaline batteries
☆ Display accuracy: 0.5°C
☆ Probe sensor: NTC(10k)1%
☆ Contact capacity: 5A/250V(BW;WW);16A/250V(WE)☆ Output: Switch relay
☆ Working environment temperature: 0~70°C
☆ Range of temperature adjustment: 5~35°C
Operation Key
NO symbols represent
A
Turn ON/OFF: Short press to turn on/ turn off
B
1 Short press to switch automatic mode and manual mode
2 Turn on thermostat, long press
setting
3. Turn off thermostat, long press
C
1 Confirm key: use it with
2 Only short press it to set time
3 Turn on thermostat, long press it for 3-5seconds to holiday mode setting
B
1 Decrease key
2 Long press to lock /unlock
D 1 Increase key :
2 Under auto mode state, press ,
3 Long press to check external sensor temperature(only used for the receiver with
external sensor)
Icon Instruction
☆ Range of temperature display: 0~40°C
☆ Insulating condition: Normal environment
☆ Running program: Set per 1 week as a cycle
☆ Installation: Wall mounted or on battery seat
☆ Size(mm)：86*86*27
for 3-5 seconds to enter into programmable
for 3-5 seconds to enter into advanced setting
key
to enter into temporary manual mode
Programmable Mode Setting
Power on state, long press " " enter into first time period (hour setting), press "
adjust value, short press " " enter into minute setting, press " " and " " to adjust value, then short
press " " enter into temperature setting, press " " and " " to adjust value, successively short press
" " to set second time period, thirdly time period ......
Wake up Out door Back home
6： 00 20℃ 8： 00 15℃
11： 30
Advanced options
Power off state, long press for 3-5 seconds to access advanced setting.
From A1 to Ao, short press to choose the option, and adjust data by
about 5 seconds ,it will save setting and exit advanced setting automatically .
NO Setting Options
Measure Temperature
A1
Calibration
Temperature control return
A2
difference setting
A3 Children lock setting
A4 Power off Memory
A5
Weekly programming selection
A6 Setting temperature lowest limit
A7 Setting temperature highest Limit
A8 Anti-freezing function
Highest temperature protection
A9
function
Return different temperature of
AA
external sensor
Ao Restore factory defaults
Power off state, long press for 3-5 seconds to access advanced setting.
From B1 to B5, short press to choose the option, and adjust data by
Out door Back home
15℃ 15℃ 20℃
13： 30 17： 00
, . After finish setting ,remain
Data Setting Function Factory Default
Display
-9-+9℃
measuring
press , to adjust.
temperature
0.5-2.5℃ 1℃
0:half lock 1:full lock 0
0: Last State 0
1: Electricity turn off
2: Electricity turn on
P1: 5+2 P1
P2: 6+1
P3: 7
1-10℃ 5℃
20-70℃ 35℃
1: 1-10℃
2: more than 10℃ ,display -- ,then 5℃
mean closed this function
1: 5-35℃
--
2: less than 35℃,display --,then mean
closed this function
1-9℃ 2
Display A o, long press until show
the whole screen
, . After finish setting ,remain
" and " " to
Sleep
15℃
22： 00
