Summary of Contents for Beok Controls BOT-R6X

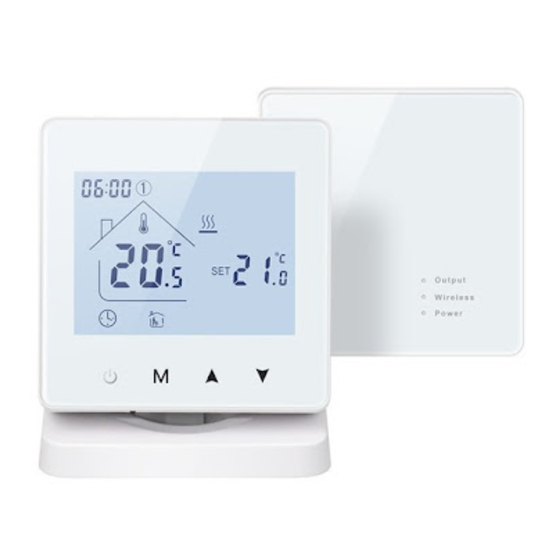

- Page 1 BOT- R6X Wireless Gas Boiler Thermostat...

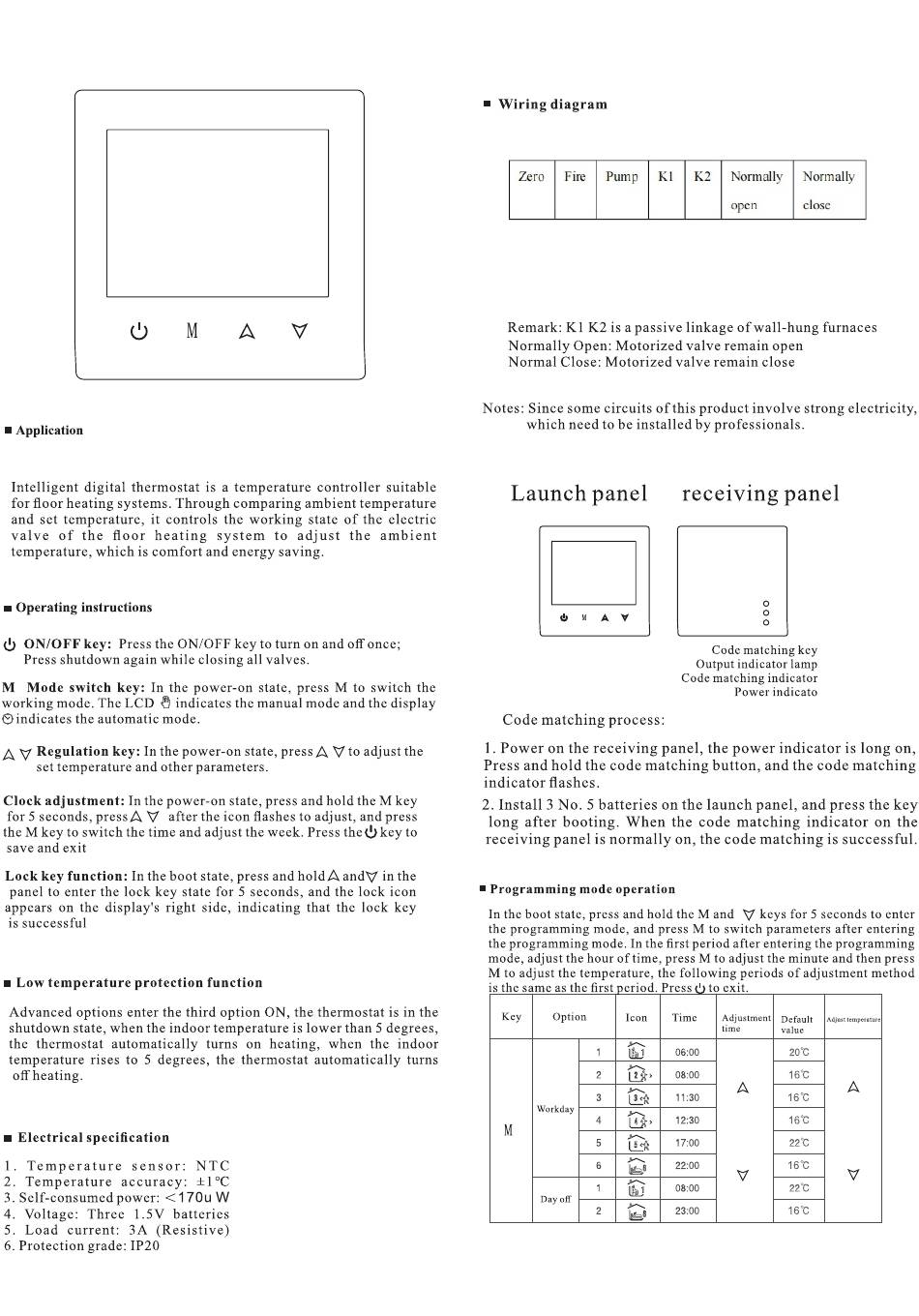

- Page 3 BOT-R6W Wired Gas Boiler Thermostat Wiring diagram Note:Passive linkage of wall-mounted furnace com and no Note:due to the strong power design of some circuits of this product it needs to be installed by professionals. Apply Programming mode operation Intelligent digital thermostat is a temperature controller,which In the case of power on,press M and key for 5 seconds to suitable for the floor heating system.
- Page 4 Installation method 1.Install expansion screw sleeve with pitch 59mm on the wall. 2.Separate the upper cover and the lower cover with a screwdriver,according to the direction of the alignment. The wire passes through the back cover to the slot and leaves about 20cm long according to the actual situation 3.Fix the bottom shell to the wal,and finally fix the wire.Cover the front shell on the bottom...
