BOT-R6W Wired Gas Boiler Thermostat
Apply
Intelligent digital thermostat is a temperature controller,which
suitable for the floor heating system. Through the comparison
of the ambient temperature and the set temperature,the
working state of the electric valve of the floor heating system
is controlled in order to adjust the ambient temperature,
comfort and energy-saving.

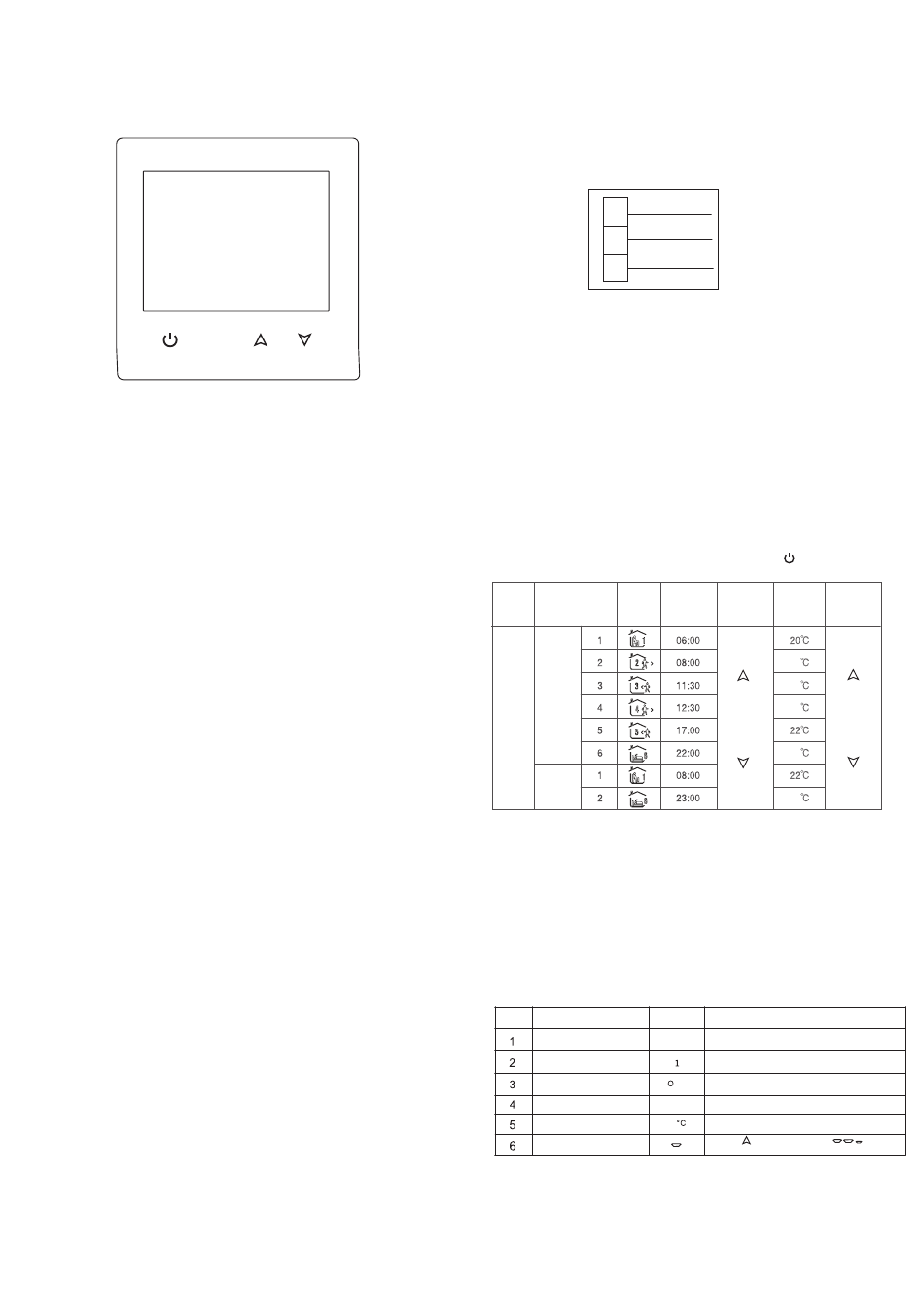

Operation instruction
Turn on / off key press the switch key to turn on once; press to
shut down again and close all valves at the same time.
M mode conversion key in the power-on state, press M to
switch the working mode, The liquld crystal display represents
the manual mode and the display represents the automatic
mode .
When the adjustment key is turned on,press adjustment of the
number
Clock adjustment:in the power-on state,press the M key for 5
seconds,press the Mkey to switch the time and week after the
icon flashes.press power or to save exit
Lock button function:long press in boot state and 5 seconds
panel enter lock kay state right side of display screen.the icon
of the lock indicates that the lock key was successful.
Cryogenic protection function Advanced options enter the
third option,select ON,the thermostat is turned off,when the
room temperature is below 5
The thermostat automatically turns on heating,and when the
indoortemperature rises to 5 degrees,the thermostat
automatically turns off the heating
Electrical specification
1.Temperature sensor NTC
3.Self- consumed:<170uW
5.Load current:3A (negative) 6.Protection grade:H20
M
2.Temperature precision: ±1
4.Voltage:three 1.5V batteries
Wiring diagram
Note:Passive linkage of wall-mounted
furnace com and no
Note:due to the strong power design of some circuits of this
product it needs to be installed by professionals.
Programming mode operation
In the case of power on,press M and key for 5 seconds to
enter programming mode,then press M to switch parameters.
the first time to enter the programming mode is to adjust the
hour of time,press M to adjust for minutes,and then press M to
adjust the temperature.The adjustment method of each period
is the same as that of the first period.press
Press the
Option
button
Weekdays
M
Day Off
Parameters setting
In the shutdown state,press M and for 5 seconds at the same
time to enter the parameter setting interface,at this time:
press M cycle to select the parameters you need to set,
and press key to adjust the parameters.Press chase out.
The schedule of parameters is as follows:
Parameter
Parameter name
term
Temperature compensation
Switch deviation setting
Turn off anti-freezing
function start and stop
°
Choose a day off
Set the upper limit
of the temperature
Restore factor y settings
NC
COM
NO
Adjust
The default
Icon time
the time
The default
Functional meaning
value
0 The temperature compensation range is
The Starting range of temperature difference
is 0.5~9.5℃
OFF:Turn off antifreeze function
FF
ON:Turn on antifreezing function
2
0:Non-stop 01: Take a break 02:Weekends
Set the upper temperature range
60
Long press three seconds，display
restore factor y setting
exit.
Adjust the
value temperature
1 6
1 6
1 6
1 6
1 6
-9.9~9.9℃
35~95℃
