Beok Controls BOT-R7X Manual

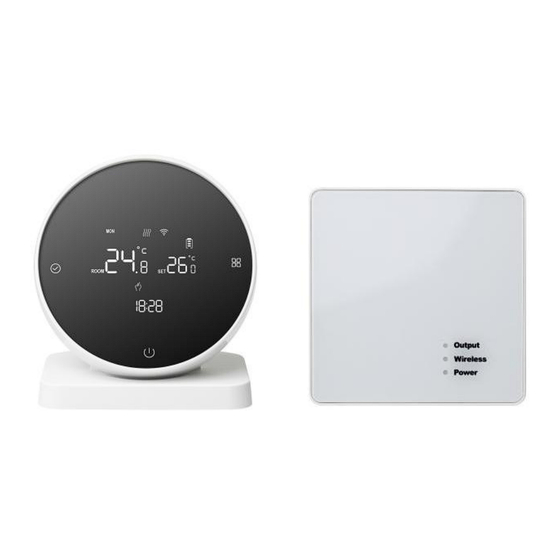

BOT-R7X Wireless Gas Boiler Heating Thermostat
Application
Intelligent digital thermostat is a temperature controller suitable
for floor heating systems. Through comparing ambient temperature
and set temperature, it controls the working state of the electric
valve of the floor heating system to adjust the ambient
temperature, which is comfort and energy saving.
Operating Instructions
ON/OFF key: Press the ON/OFF key to turn on and off once;
Press shutdown again while closing all valves.
Mode switch key: In the power-on state, press
working mode. The LCD
display indicates the automatic mode.
Regulation key: In the startup state, press the
temperature will flash, then rotate the outer frame to adjust the
temperature setting.
Clock adjustment: In the power on state, press and hold the ***
button for 5 seconds. After the icon flashes, rotate the outer frame to
adjust. Press the button to switch between time and week
adjustments, and press the
Lock key function: In the power on state, press and hold the
button for 5 seconds to enter the lock button state on the panel.
A lock icon appears at the bottom of the display screen, indicating
successful lock button locking
to switch the
indicates the manual mode and the
button and the
button to save and exit.
Low Temperature Protection Function
Advanced options enter the third option ON, the thermostat is in the
shutdown state, when the indoor temperature is lower than 5 degrees,
the thermostat automatically turns on heating. when the indoor
temperature rises to 5 degrees, the thermostat automatically turns
off heating.
Electrical Specification
1. Temperature sensor: NTC
2. Temperature precision: +0.5°C
3. Self- consumed: < 170uW
4. Voltage: 3pcs 1.5V batteries
5. Load current: 3A(negative)
6. Protection grade: IP20

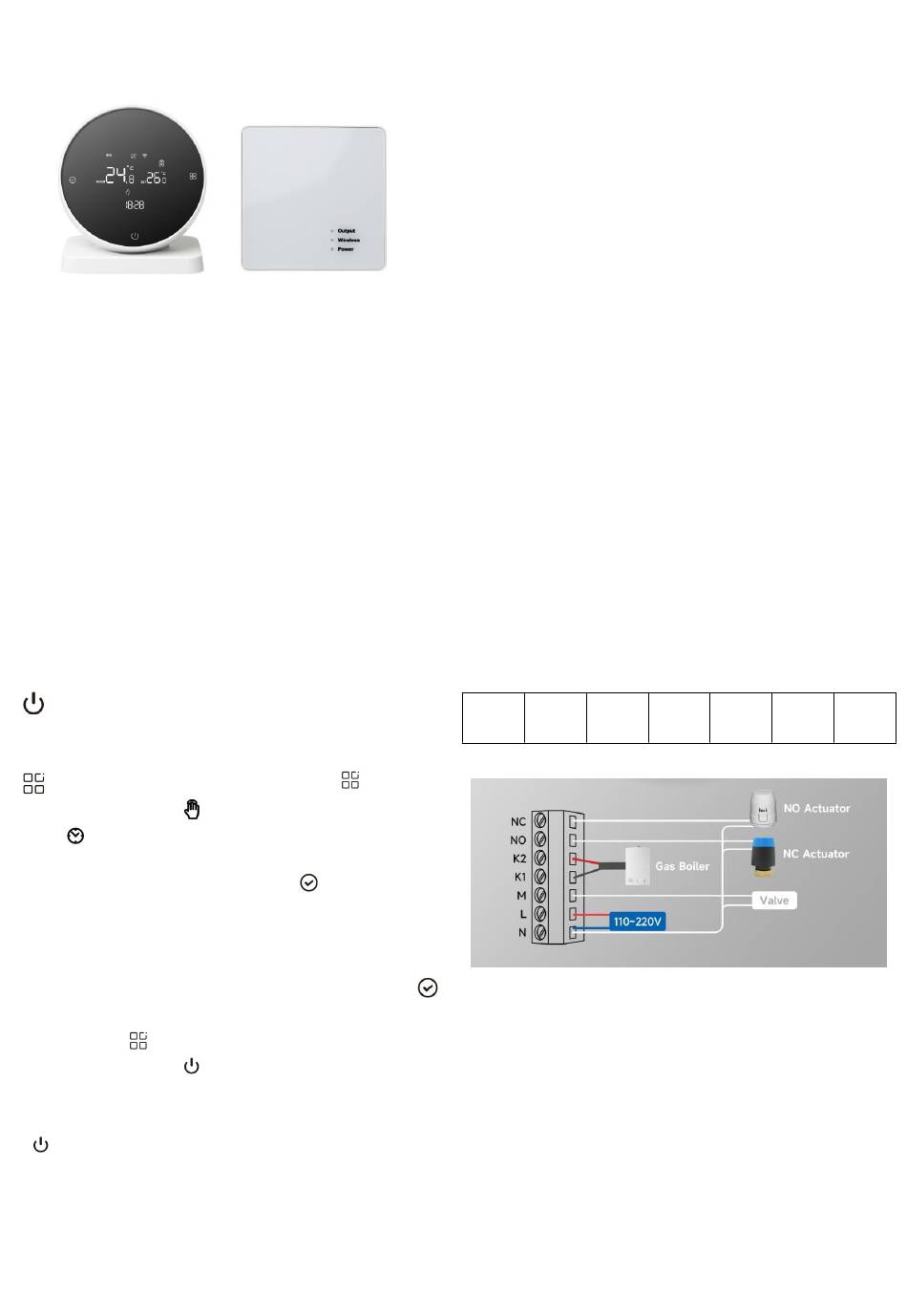

Wiring Diagram
N L M
Remark:
N & L: 110~220Vac input
K1 & K2(dry contact): boiler / heater
N & NO: normally close (NC) actuator
N & NC: normally open (NO) actuator
N & M: Valve
Notes: since some circuits of this product involve strong electricity,
which need to be installed by professionals.
K1 K2 NO NC
