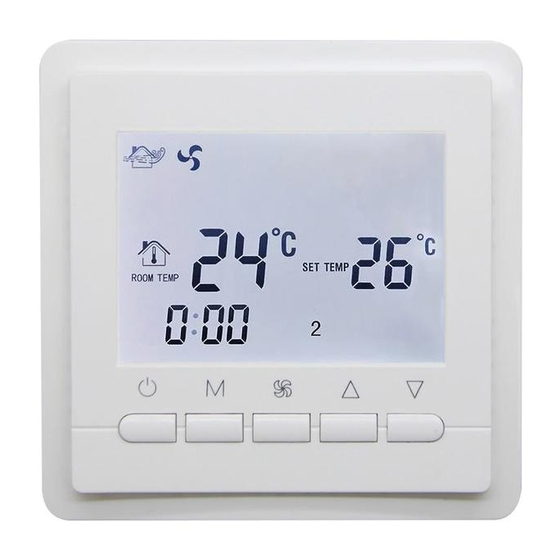

TOL43-AC LCD SCREEN THERMOSTAT
I. Product Summary:
TOL43-AC Series thermostats are designed to control the fans and valves
in air conditioner applications via comparison of the room temperature and
setting temperature as reaching the aim of comfort and saving energy.
II. Technical Parameter:
Power Supply
Current Load
Power Consumption
External Material
Sensing Element
Set Temp. Range
Accuracy
Dimension
Ambient Temp.
Storage Temp.
Installation Box
III. Main Functions and Characteristics
1.Square LCD display, more clear to see.
2.Blue or white back light for customer choose.
3.Two pipe or four pipe for choice.
4.3 Fan speed+auto, timer switch for daily or week.
. 5 With daily programmable function, 4 period settings.
6.Selectable 80mmx80mm hidden box.
7.Precise comfort control keeps temperature within1°C of the level you set.
IV. User Interface Explanation
V. Model Definition
AC 2: Two pipe, for air conditioning
AC 4: Four pipe, for air conditioning
For example: TOL43-AC2
VI. Model Spec
Spec
Fan Speed
TOL43-AC2
2 Pipe
3 Fan speed+Auto
TOL43-AC4
4 Pipe
3 Fan speed+Auto
AC85~260V, 50/60HZ
3A
<0.5W
PC+ABS (flame retardant）
NTC
10℃ - 40℃
±1℃
86x86x13.3mm
0-45℃,5-95％RH(Non-condensing）
℃
-5~55
80x80mm
Daily
Timer Switch
Programmable
√ √
√ √

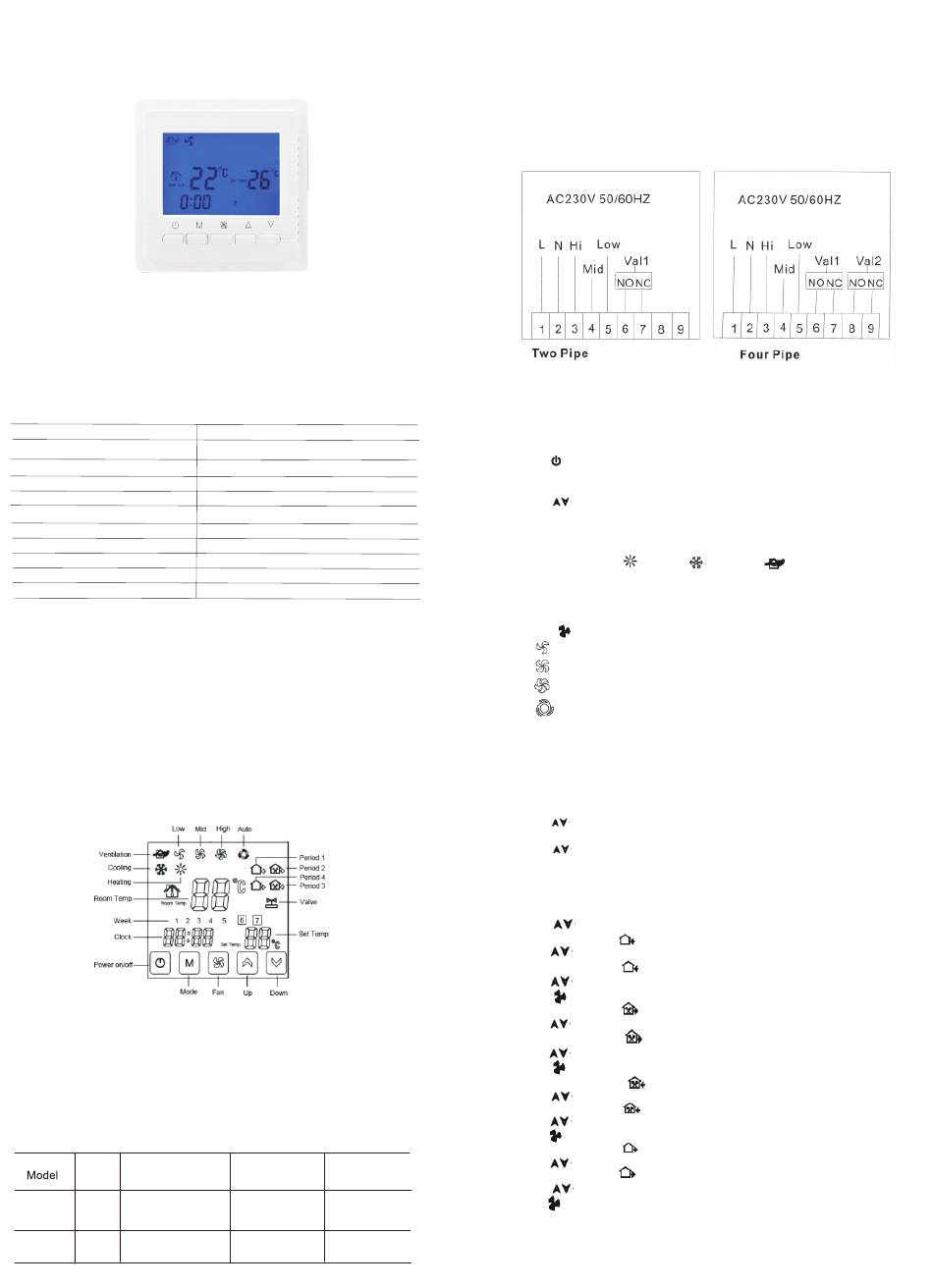

VII.Wiring Digram
VIII. Operation Instruction
1. Setting Power on/off
Press to turn on/off the power.
2. Setting Temperature
Press to set the temperature.
Factory default is 26 ℃.
3. Setting the System Mode
Press M to select heating,
Factory Default is ventilation.
4. Setting the Fan Speed
Press to select the fan speed.
is Low speed(Factory default);
is Mid speed;
is High speed;
is Auto speed.
In auto mode, the fan will run according to the comparison of room
temperature and set temperature.
5. Setting the Day Program Schedules.
Press and hold M for 3 sec., hh will flash in the position of hh: mm.
Press to adjust the hour.
Press M , mm will flash in the position of hh: mm.
Press to adjust the minute.
The above is the steps to set real time.
Then go into day programmable setting.
Press M , 1 (for example) will flash in the position of 1234567.
Press to adjust the week.
Press M , period 1 and hh will flash.
Press to adjust the hour.
Press M , period 1 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press M , period 2 and hh will flash.
Press to adjust the hour.
Press M , period 2 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press M , period 3 and hh will flash.
Press to adjust the hour.
Press M , period 3 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press M , period 4 and hh will flash.
Press to adjust the hour.
Press M , period 4 and mm will flash.
Press to adjust the minute.
Press to confirm the setting;
Press M , loop will display in the screen.
One day programmable setting is finished.
cooling or ventilation.
