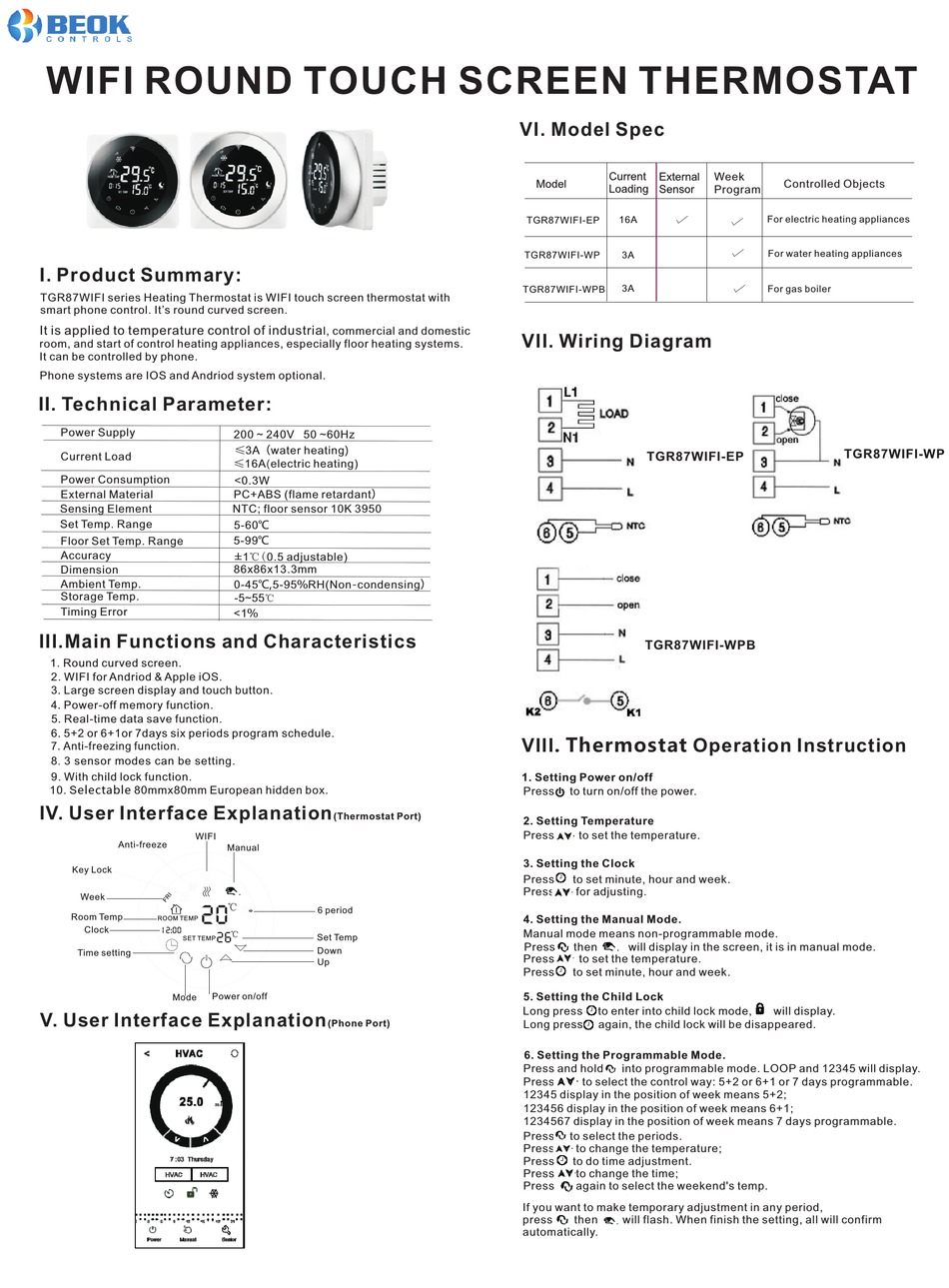

Beok Controls TGR87WIFI-WP Manual

WIFI ROUND TOUCH SCREEN THERMOSTAT

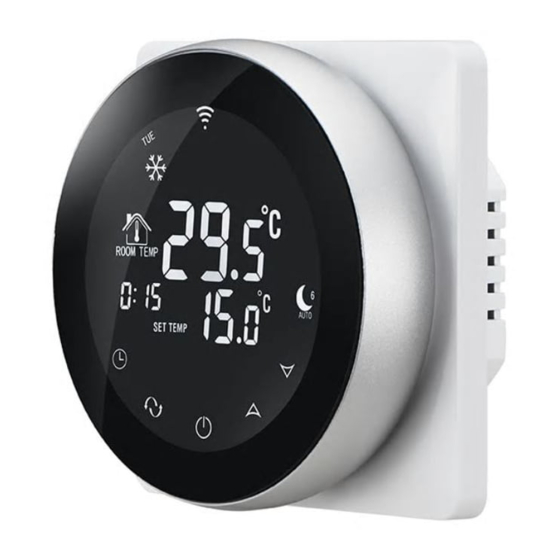

I. Product Summary:
TGR87WIFI series Heating Thermostat is WIFI touch screen thermostat with
smart phone control. It's round curved screen.
It is applied to temperature control of industria
room, and start of control heating appliances, especially floor heating systems.
It can be controlled by phone.
Phone systems are IOS and Andriod system optional.
II. Technical Parameter:
Power Supply
Current Load
Power Consumption
External Material
Sensing Element
Set Temp. Range
Floor Set Temp. Range
Accuracy
Dimension
Ambient Temp.
Storage Temp.
Timing Error
III.Main Functions and Characteristics
1. Round curved screen.
2. WIFI for Andriod & Apple iOS.
3. Large screen display and touch button.
4. Power-off memory function.
5. Real-time data save function.
6. 5+2 or 6+1or 7days six periods program schedule.
7. Anti-freezing function.
8. 3 sensor modes can be setting.
9. With child lock function.
10. Selectable 80mmx80mm European hidden box.
IV. User Interface Explanation
WIFI
Anti-freeze
Key Lock
Week
20
Room Temp
ROOM TEMP
12:00
Clock
26
SET TEMP
Time setting
Mode Power on/off
V. User Interface Explanation
l, commercial and domestic
200 ~ 240V 50 ~60Hz
≤3A（water heating)
≤16A(electric heating)
<0.3W
PC+ABS (flame retardant）
NTC; floor sensor 10K 3950
5-60℃
5-99℃
±1℃(0.5 adjustable)
86x86x13.3mm
0-45℃,5-95％RH(Non-condensing）
℃
-5~55
<1％
(Thermostat Port)
Manual
℃
6 period
℃
Set Temp
Down
Up
(Phone Port)
VI. Model Spec
16A
TGR87WIFI-EP
TGR87WIFI-WP 3A
3A
TGR87WIFI-WPB
VII. Wiring Diagram
TGR87WIFI-EP
TGR87WIFI-WPB
VIII. Thermostat Operation Instruction
1. Setting Power on/off
Press to turn on/off the power.
2. Setting Temperature
Press to set the temperature.
3. Setting the Clock
Press to set minute, hour and week.
Press for adjusting.
4. Setting the Manual Mode.
Manual mode means non-programmable mode.
Press then will display in the screen, it is in manual mode.
Press to set the temperature.
Press to set minute, hour and week.
5. Setting the Child Lock
Long press to enter into child lock mode,
Long press again, the child lock will be disappeared.
6. Setting the Programmable Mode.
Press and hold into programmable mode. LOOP and 12345 will display.
Press to select the control way: 5+2 or 6+1 or 7 days programmable.
12345 display in the position of week means 5+2;
123456 display in the position of week means 6+1;
1234567 display in the position of week means 7 days programmable.
Press to select the periods.
Press to change the temperature;
Press to do time adjustment.
Press to change the time;
Press again to select the weekend's temp.
If you want to make temporary adjustment in any period,
press then will flash. When finish the setting, all will confirm
automatically.
Week
Controlled Objects
Program
For electric heating appliances
For water heating appliances
For gas boiler
TGR87WIFI-WP
will display.
