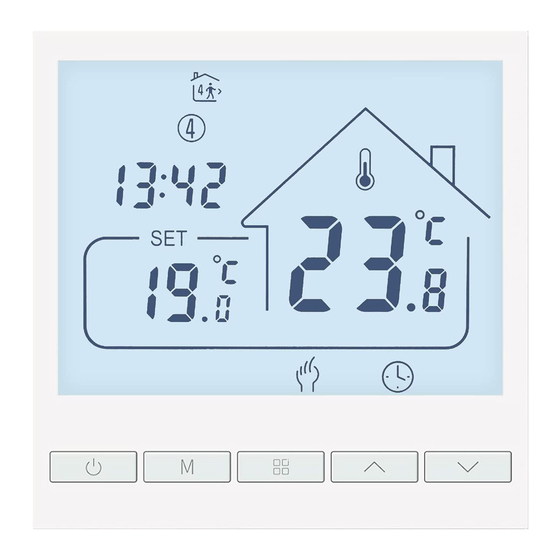

Beok Controls TOL47 Series User Manual

This thermostat is used for water heating,
electric heating, or gas boiler.
Welcome
Thank you for your trust and support!
We have adopted advanced technology and perfect craftsmanship so that your new
thermostat will provide you with a sutable temperature environment every day in the
future. It makes your life more pleasant and artistic and making your living environment
more fashionable aesthetic.
For detailed instructions on installing and using this thermostat, please read this manual
carefully.
Please get in touch with a professional to install the thermostat for you. Besides, please
install and use this product within the scope of the law.
Application
The intelligent digital humidity controller is a floor heating system suitable for room
temperature control and household temperature control. It controls the operating status
of the floor heating equipment by sensing the comparison between the ambient
temperature and the set temperature. While improving comfort, it achieves the purpose
of energy saving.
The digital thermostat adopts microcomputer control technology and has an elegant
design, and is easy to use. Moreover, it has manual and automatic functions,
programmable functions, and state memory functions.
Product packaging
Thermostat host 1 PC
Certificate of conformity 2PCS
Sensing line (optional) 1PC
Product parameters
WP : Water heating 3A;
EP : Electric heating 16A
WPB : Linkage; M:Gas boiler 3A
Electrical Specifications:
1.Temperature Sensor: NTC
3. Display screen: LCD
5.Self-consumption power: <1W
7. Display range: 0-51℃
9. Voltage: AC95- 220V, 50/60Hz
2.Temperature accuracy: ±1℃
4. Working environment: -5-50℃
6.Temperature setting: 5 ~60℃
8. Load current: water heater 3A
electric heater 16A
gas boiler heater 3A

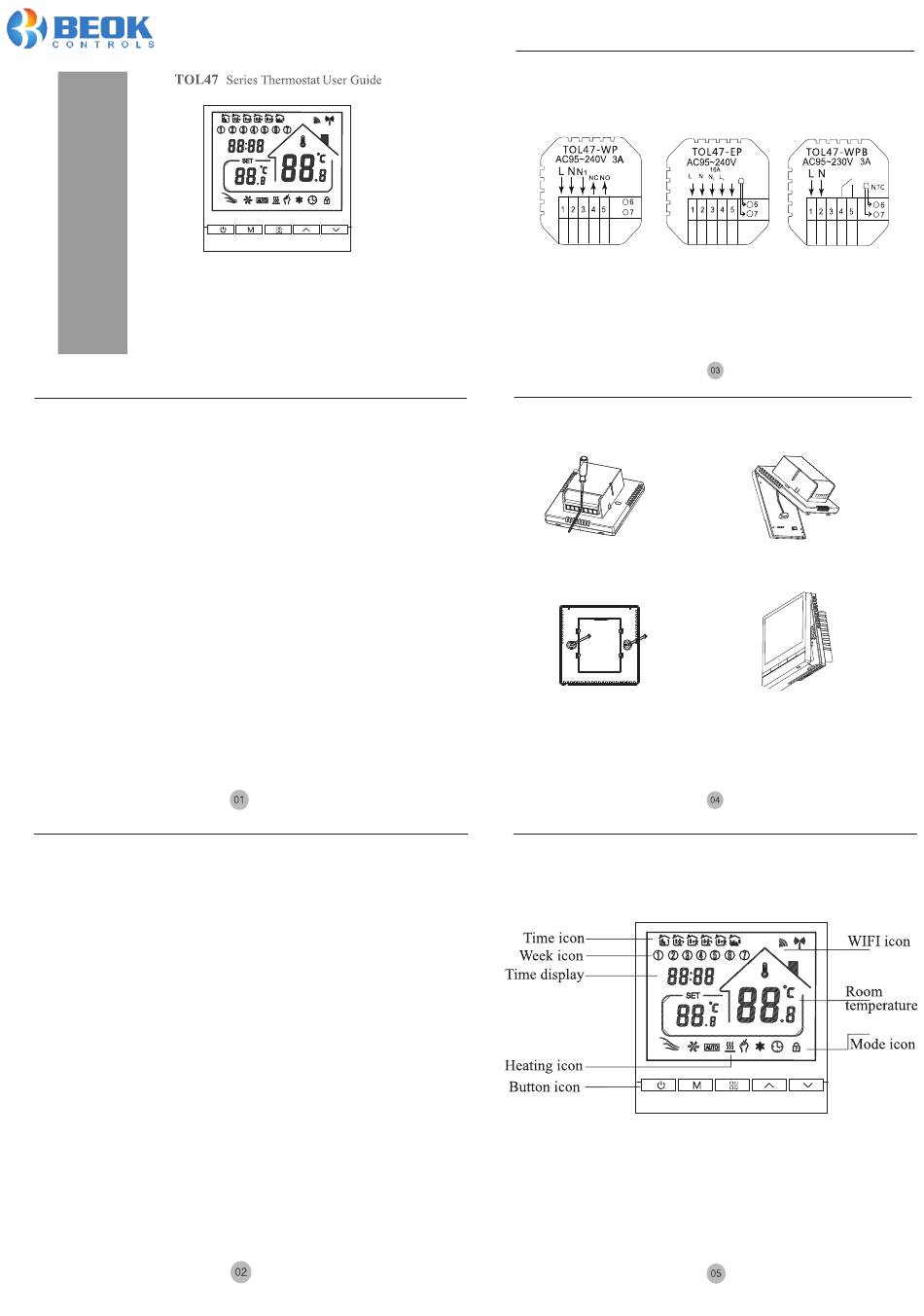

Wiring Diagram
EP: Electric heating
WP: Water heating
Mounting steps
1. Connect the power box
according to the wiring diagram
3. Screw the power supply
into the box of 86
Icon description
WPB: Gas boiler heating
2. Separate the power supply
from the control board cable
4. Connect the power board to the
control board line, and align the
buckle at 30 degrees to complete
the installation.
