Beok Controls TOL313WIFI Series Quick Start Manual

I. Product Summary:

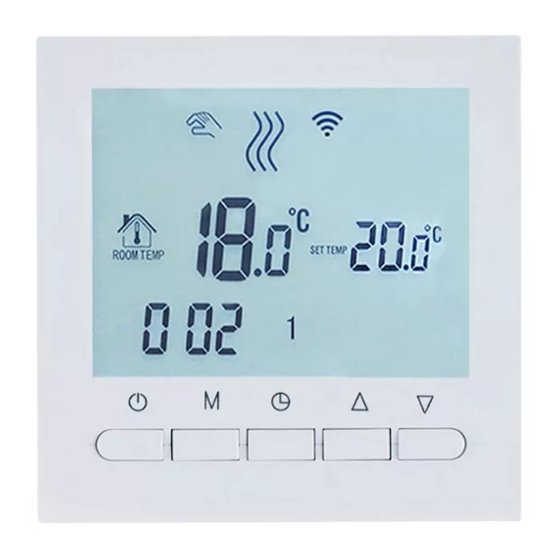

TOL313WIFI series thermostats are
It is with LCD digital display, and i
industrial, commercial and domestic room, and start of control heating
appliances, especially floor heating systems. It can be controlled by phone.
Phone systems are IOS and Andriod system optional.
II. Technical Parameter:
Power Supply
Current Load
Power Consumption
External Material
Sensing Element
Set Temp. Range
Floor Set Temp. Range
Accuracy
Dimension
Ambient Temp.
Storage Temp.
Timing Error
III. Main Button Instruction
ON/OFF Switch;
M
Mode Button: Switch between manual mode and program mode
Long press to enter period setting.
Time set: Hour, minute and week setting.
Up button: To increase temperature.
Down button: To reduce temperature.
IV. User Interface Explanation
V. User Interface Explanation
TOL313 WIFI THERMOSTAT
heating thermostats with phone control.
t is applied to temperature control of
200 ~ 240V 50 ~60Hz
≤3A（water heating)
≤16A(electric heating)
<0.3W
PC+ABS (flame retardant）
NTC
5-60℃
5-99℃
±1℃
86x86x13.3mm
0-45℃,5-95％RH(Non-condensing）
℃
-5~55
<1％
(Thermostat Port)
(Phone Port)
VI. Model Spec
TOL313WIFI-EP
16A
TOL313WIFI-WP
3A
BOT-313WIFI
3A
VII.Wiring Diagram
TOL313WIFI-EP
BOT-313WIFI
VIII. Thermostat Operation Instruction
1. Setting Power on/off
Press to turn on/off the power.
2. Setting Temperature
Press to set the temperature.
3. Setting the Clock
Press to set minute, hour and week.
Press for adjusting.
4. Setting the Manual Mode.
Manual mode means non-programmable mode.
Press M then will display in the screen, it is in manual mode.
Press to set the temperature.
Press to set minute, hour and week.
5. Setting the Child Lock
Long press to enter into child lock mode,
Long press again, the child lock will be disappeared.
6. Setting the Programmable Mode.
Press and hold M into programmable mode. LOOP and 12345 will display.
Press to select the control way: 5+2 or 6+1 or 7 days programmable.
12345 display in the position of week means 5+2;
123456 display in the position of week means 6+1;
1234567 display in the position of week means 7 days programmable.
Press M to select the periods.
Press to change the temperature;
Press to do time adjustment.
Press to change the time;
Press M again to select the weekend's temp.
If you want to make temporary adjustment in any period,
press M then will flash. When finish the setting, all will confirm
automatically.
Week
Controlled Objects
Program
For electric heating appliances
For water heating appliances
For gas boiler
TOL313WIFI-WP
will display.
