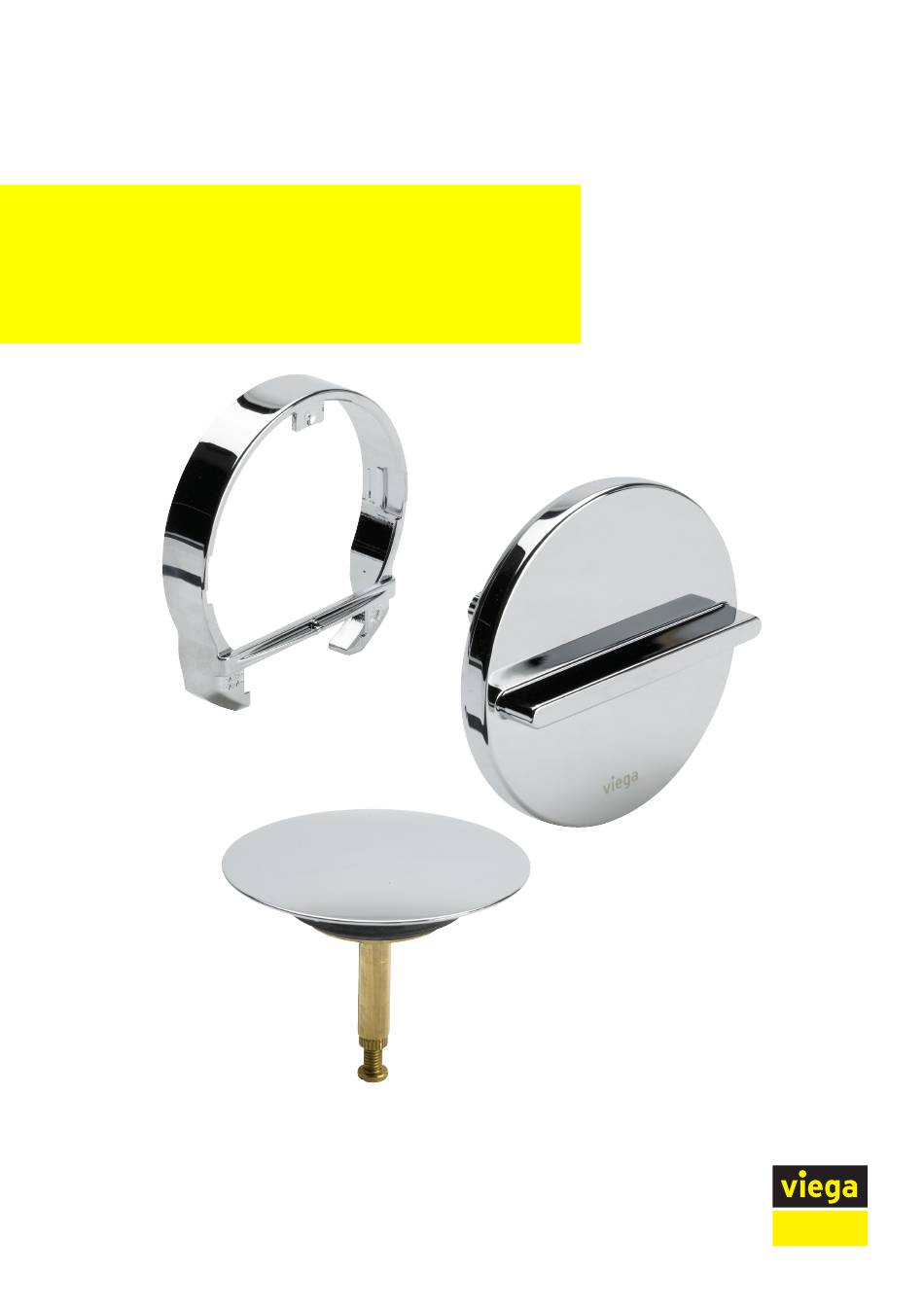

- Page 1 Multiplex Trio equipment set Visign MT3 Instructions for Use for drain/overflow functional unit Model Year built: 6161.13 from 06/2015 en_INT...
- Page 2 Multiplex Trio equipment set Visign MT3 2 from 10...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Intended use 2.1.1 Areas of use Product description 2.2.1 Overview 2.2.2 Equipment versions Handling Assembly information 3.1.1 Mounting conditions 3.1.2 Required tools and materials Assembly... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e. -
Page 6: Product Information
Product information 2 Product information Intended use 2.1.1 Areas of use The equipment set is exclusively suitable for use with a Multiplex Trio inlet / drain / overflow for bathtubs with a 52 mm drain hole. The model described here cannot be combined with Multi- plex products. -
Page 7: Handling
Handling 3 Handling Assembly information 3.1.1 Mounting conditions The following requirements exist for the mounting of the equipment set: The bathtub is fully installed. A Multiplex Trio drain and overflow is installed. All other tasks on the building site have been completed. 3.1.2 Required tools and materials Tool... -
Page 8: Demounting Rotatable Rosette
Handling Set the valve cone with the help of the adjusting screw and counter with union nut. 3.2.2 Demounting rotatable rosette If the rotatable rosette on the overflow is to be removed, proceed as fol- lows to prevent damaging the rosette and the flange cover: Remove the rotatable rosette in the axial direction. - Page 9 Handling Turn rotatable rosette to the left. ð The drain closes itself. Turn rotatable rosette to the right. ð The drain opens itself. Setting the water inlet direction There is a regulator for the water jet on the underside of the rotatable rosette.
-
Page 10: Maintenance
Handling Maintenance NOTICE! Risk of damage due to unsuitable cleaning agent. The following cleaning agents can damage chrome-plated surfaces and therefore may not be used: – scouring agent – abrasive sponges – lime, plaster or cement dissolver – solvents or other acidic cleaning agents Normal soap or a mild cleaning agent can be used for regular care and prevention of lime scale on the rotatable rosette and valve cone.
