ADURO Hybrid Replacement

Replacement of the control board on stoves

Revision date: 18.10.2023

Replacement of the control board on Aduro Hybrid stoves

Difficulty: Intermediate

Time consumption: 45 minutes

Tools: TORX 15 screwdriver, PH2 Screwdriver, cable ties (Optional)

Components:

Control board (aduroshop.com)

NB: All changes and adjustments must be conducted when the stove is cold and disconnected from

the power supply.

Checking the function of the control board

To check the function of the control board and whether it needs to be replaced, it is important to make sure

that the cables are placed and attached correctly.

Try activating different functions like the augers, fan, and ignitor, to see if the lights on the board change. If

not, the board must be replaced.

It is important that the control board is handled with care, and that it is not exposed to static electricity when

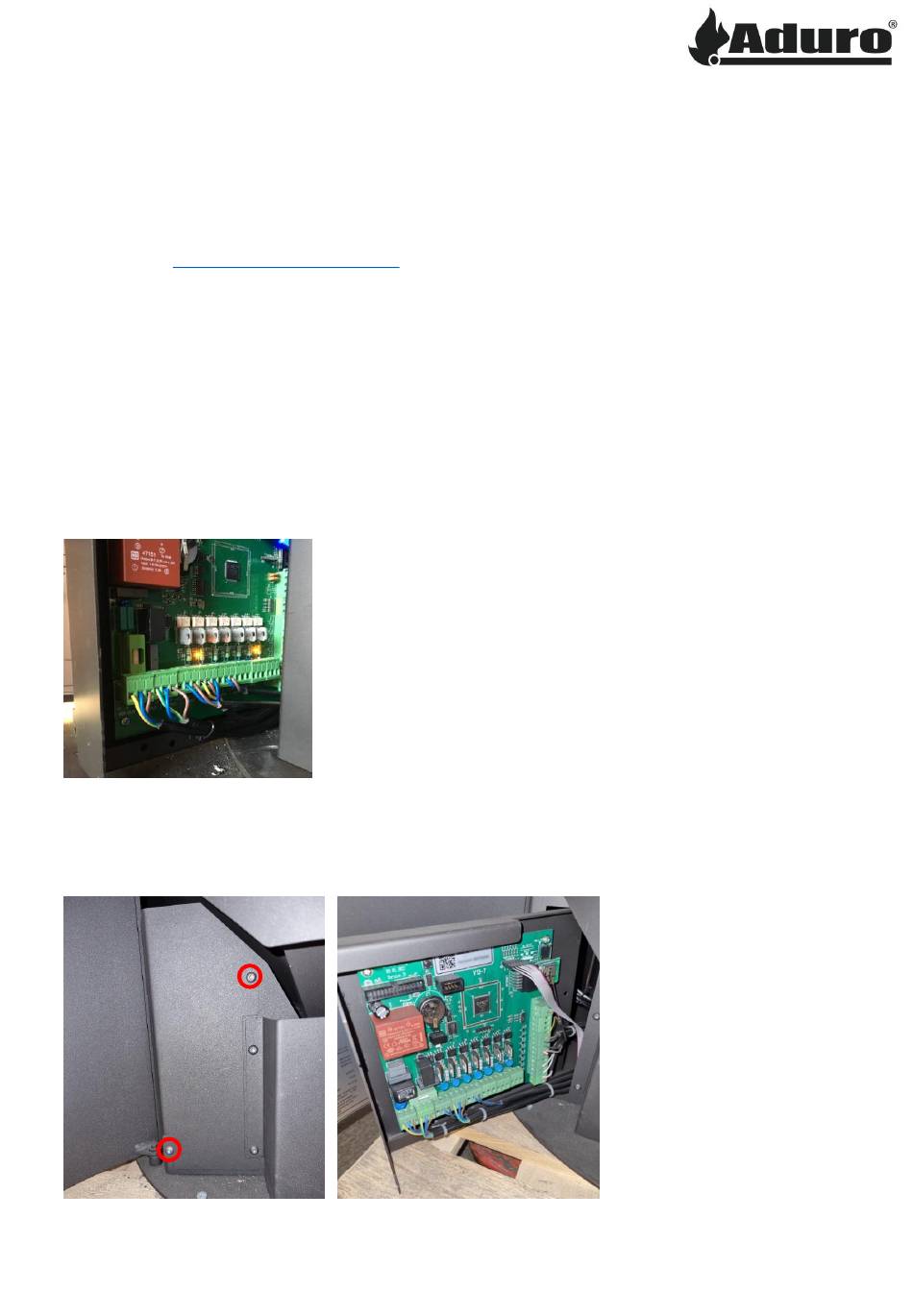

being replaced. To replace the control board, open the stove's lower door and unscrew the plate on the

lower left side. Gently pull out the board while making sure not to damage the board and cables:

Table of Contents

Do you have a question about the Hybrid and is the answer not in the manual?

Page 1 Revision date: 18.10.2023 Replacement of the control board on Aduro Hybrid stoves Difficulty: Intermediate Time consumption: 45 minutes Tools: TORX 15 screwdriver, PH2 Screwdriver, cable ties (Optional) Components: Control board (aduroshop.com) NB: All changes and adjustments must be conducted when the stove is cold and disconnected from the power supply.
Page 2 Revision date: 18.10.2023 Place the board with the bottom on the floor. Make sure to take a picture or label each cable to make sure they go back to the right slot when replacing the board. Cut the cable ties and unplug the cables by tugging on the green connectors. Be very careful when removing the Wi-Fi cable (shown in picture 3 below), as this is very brittle: Unscrew the four screws (marked in the picture below), remove the board from the metal plate, and replace it with the new board:...
Page 3 A new serial number and password are associated with the new board. Please use these when connecting: You should also replace the sticker on the inside of the stove’s lower front door with the new one. Keywords: Motherboard, control board, board, replace, replacing, replacement, guide, electronics, hybrid, hybrid stove...
