How to replace the Hybrid stove's control board
1. Before you start replacing the control board, it is important to check if the cables are inserted correctly (not
loose). Check if input L1-L4 are glowing when you choose manual mode in the H1 app (turning on
gearmotor, igniter, fan). If you confirm that the control board is not reacting to any commands, please follow
these steps:
a) Disconnect the stove from all electricity by unplugging the power plug.
b) Locate the control board. The entrance for the control board can be found in the stove's bottom left corner.

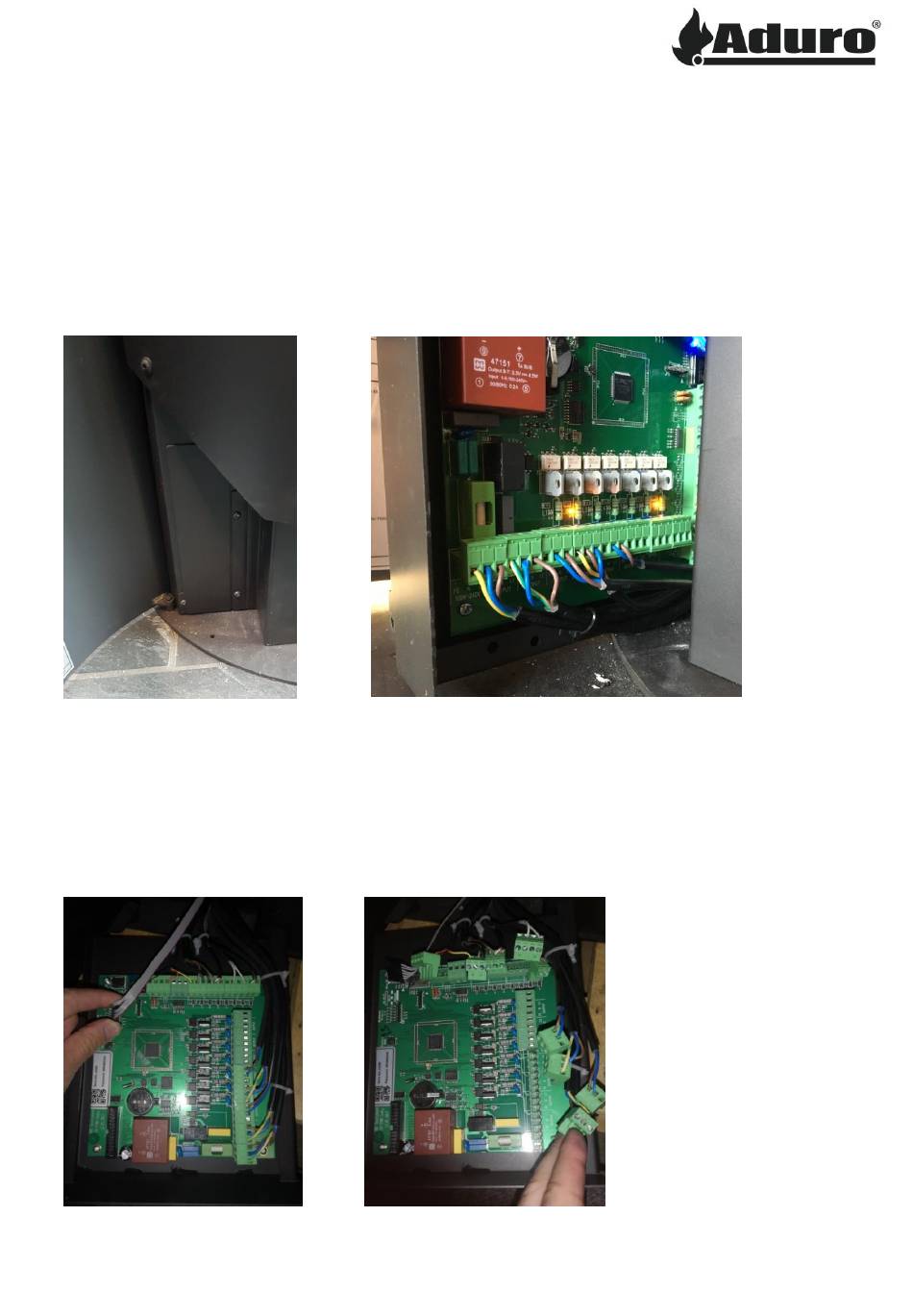

See pictures below. Unscrew the two screws and pull the control board slowly out.
2. Once you have taken the control board out:
a) Take a picture of the whole control board for you to remember how it looks and how the different inputs
are connected. Start unplugging the display cable on the control board. See step 4 for illustrations regarding
how the connections should look like.
b) Unplug the rest "Green bricks", which are input for the different electronical parts of the stove (sensors,
gearmotor, igniter etc. This is done by pulling the brick up without removing the cables itself. See pictures
below.
