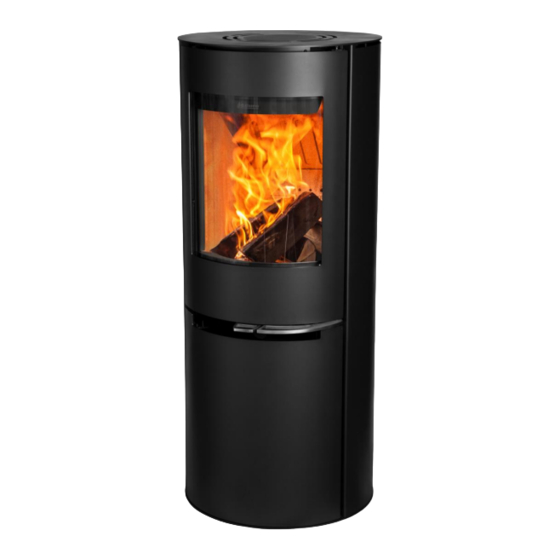

Congratulations on your new Aduro H2 Stove!
To get the best possible experience and benefit from your new Aduro H2, it is important that you read the
user manual thoroughly before you install your Aduro H2 and start using it. Errors or incorrect settings can
cause hazardous conditions and/or poor operation.
For further information, please go to www.adurofire.com.
At the inside of the bottom front door you can find the production number, the serial number, and the code
for the Aduro Hybrid App. We recommend that you note down these numbers in the box below before
mounting the stove. For the purposes of the guarantee and for other enquiries, it is important that you are
able to quote the production number as well as the serial number.
Production number:
Serial number:
Code for the Aduro Hybrid App:
HOW TO SUCCEED WITH YOUR NEW HYBRID STOVE
In our customer service center
find tips and tricks on how to succeed with your new Aduro Hybrid
stove. Find us
here
and make the most of your Aduro stove.
Moreover, we recommend registering your Aduro Hybrid in
Cloud
so you do not miss important information and alarms
regarding your stove.
Enjoy!
Aduro Customer Service
you will
Aduro
EN
51

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADURO H2

Summary of Contents for ADURO H2

  • Page 1 Congratulations on your new Aduro H2 Stove! To get the best possible experience and benefit from your new Aduro H2, it is important that you read the user manual thoroughly before you install your Aduro H2 and start using it. Errors or incorrect settings can cause hazardous conditions and/or poor operation.

  • Page 2: Warnings And Safety Precautions

    Performance) and DoC (Declaration of Conformity) can be downloaded at www.adurofire.com/download. Aduro H2 adheres to the following directives: EMC DIRECTIVE 2014 30 EU, LVD DIRECTIVE 2014 35 EU, 2006 42 Machinery Directive. The Wi-Fi module has been approved according to CMIIT ID: 2016DP3252. All local regulations including those referring to national and European standards must be complied when installing the stove.

  • Page 3: Technical Data

    Any flammable objects must be kept at a safe distance from the product due to fire hazard in accordance to the product manual. • Use only the fuel recommended by Aduro A/S. It is forbidden to use any liquid fuels and bioethanol fluids for lighting/ rekindle charcoal or pellets. •...
  • Page 4 2.1 Position of the hybrid stove/distance requirements The new Aduro H2 must be installed in a suitable and physically possible position. You need to be sure that the position complies with local regulations. Distance requirements will only apply if the Aduro H2 is to be...

  • Page 5: Pipe Connection

    If the Aduro H2 is to be placed close to flammable material such as a wooden floor or carpet it must be placed on a non-flammable base. The floor plate should extend for at least 30 cm in front of the Aduro H2 and 15 cm on each side –...

  • Page 6: Supply Of Combustion Air

    In warm rooms the channel should be insulated with 30 mm mineral wool covered with a damp-proof course (plastic). It is important that the lead-in between the pipe and the wall (or floor) is sealed with jointing compound. You can eventually use the complete Aduro fresh air kit.
  • Page 7 2. Through the app Aduro Hybrid and the Wi-Fi module “Aduro” in the near of the stove 3. Through the app Aduro Hybrid when the Wi-Fi module is connected to the router and connected to Aduro Cloud. When your stove is connected to Aduro Cloud, it can be controlled remotely.

  • Page 8: Electrical Connection

    2.6 Electrical connection Aduro H2 comes with approx. 1.5 meter of cord with an Euro-plug, that should be connected to a 230V / 50Hz outlet. Power consumption during operation is approx. 33 watts. The cord must be positioned so it is not in contact with hot surfaces or pointed objects.
  • Page 9 • Never empty the ash pan when the Aduro H2 is warm. Embers may still be found in the ash pan for up to 24 hours after the fire has gone out. Please wait to empty the ash pan until you are sure that there are no embers in the ash.
  • Page 10 3.1.1 Secondary air supply In normal circumstances, the Aduro H2 should be working with this damper between 60 % and 100 % open (the damper is placed between position 2 and 3). You should never close the air intake so far that the flames are extinguished.
  • Page 11 What’s more important is that the primary air is not allowed in for too long. This is to ensure optimum combustion. The Aduro-tronic control will ensure intake of primary air at the right tempo. The automatic is activated by pulling the primary damper out each time fresh wood is put in the stove.
  • Page 12 The first few times the Aduro H2 is used, there may be some smoke and unpleasant odours from the Aduro H2, which is fairly normal. This is caused by the heat-resistant paint hardening. Make sure there is sufficient ventilation during this stage.
  • Page 13 Brazier 3.3.4 Lighting the fire with pellets Before the pellet function of the stove is turned on, you should ensure that there are enough pellets underneath the brazier. You can do this by moving the brazier to the side. If there are pellets up to around 1 cm under the edge of the auger tube, there are enough pellets.
  • Page 14 ON mode automatically. 3.4 How should I use my Aduro H2? The Aduro H2 is intended for intermittent combustion. This means that each stoking should burn down to embers before new logs are added. In order to obtain the best possible combustion, you should regulate the effect/heat output with the fuel.
  • Page 15 Burning varnished wood, impregnated wood, chipboard, paper and other waste is strictly forbidden. Burning these materials will damage the environment, the Aduro H2 and your own health. Fossil fuels must not be used.
  • Page 16 - this can sometimes remove pockets of air in the chimney. If it is impossible to establish a sufficiently natural chimney draft, the chimney can be fitted with a smoke exhauster, e.g. Aduro DraftOptimizer.
  • Page 17 Aduro Hybrid has certain standard settings when it comes to the speed of the auger and the fan, and in order to achieve the most efficient / clean pellet combustion, it may sometimes be necessary for the user to adjust these settings to customize the stove to their own installation such as chimney, smoke pipe, external factors from the outside etc.
  • Page 18 You can partly compensate for an inadequate chimney draft by increasing the fan speed on the hybrid stove. This is done in the service menu of the app. 5. Control of Aduro H2 Aduro H2 has the following ALARM modes where pellet delivery must be stopped immediately: • SMOKE SENSOR: smoke sensor defect.

  • Page 19: Maintenance Of The Stove

    When you add pellets, you should brush the brazier free from of ashes and cinders. Open the door to the combustion chamber and lift the front of the brazier (the black cast iron cone with the Aduro logo). Brush the ashes and the cinders through the grate to the ash pan.

  • Page 20: Yearly Maintenance

    They can easily be removed using a damp cloth that you dip in cold ash and rub on the sooty glass. Special cleaning agents are also available to remove soot from glass, e.g. the Aduro Easy Clean pad. The pad neither scratches nor damages the glass, and it can be used multiple times.

  • Page 21: Other Maintenance

    To allow free access to the top of the Aduro H2 and the flue pipe, remove the exhaust deflector in steel. Cleaning of the inside of the Aduro H2 and the flue pipe should be undertaken at least once a year, or more...

  • Page 22: Right Of Complaint

    Aduro H2 is used. This work can also be carried out by the chimney sweep or your local Aduro GO partner. Repairing the surface Aduro stoves are painted with a heat-resistant paint that can withstand temperatures up to 500 degrees. If the surface of the stove gets scratched or worn, it can easily be renewed using this type of paint.
  • Page 23 Damages to the stove caused by external influences or damages caused by the stove on other objects. 9. Disposal of your Aduro stove When disposing your stove, metal, vermiculite, ceramic glass, and electronics must be sorted separately. Dispose hereafter the materials according to the regulations at your nearest recycling depot.
