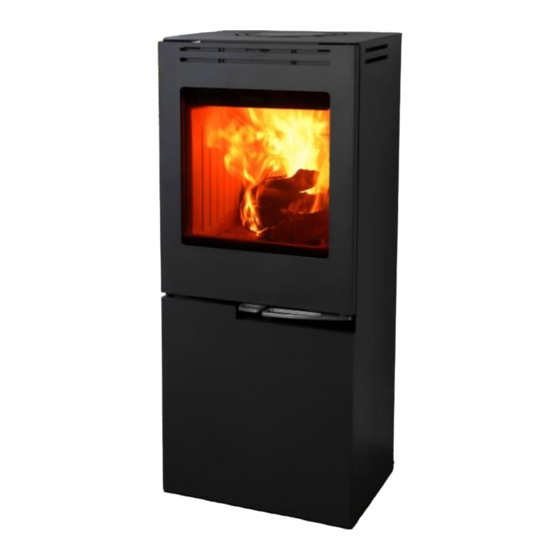

Congratulations on your new Aduro H5 Stove!
To get the best possible experience and benefit from your new Aduro H5, it is important that you read the
user manual thoroughly before you install your Aduro H5 and start using it. Errors or incorrect settings can
cause hazardous conditions and/or poor operation.
For further information, please go to www.adurofire.com.
At the inside of the bottom front door you can find the production number, the serial number, and the code
for the Aduro Hybrid App. We recommend that you note down these numbers in the box below before
mounting the stove. For the purposes of the guarantee and for other enquiries, it is important that you are
able to quote the production number as well as the serial number.
Production number:
Serial number:
Code for the Aduro Hybrid App:
HOW TO SUCCEED WITH YOUR NEW HYBRID STOVE
In our customer service center
find tips and tricks on how to succeed with your new Aduro Hybrid
stove. Find us
here
and make the most of your stove. Moreover,
we recommend registering your Aduro Hybrid in
you do not miss important information and alarms regarding your
stove.
Enjoy!
Aduro Customer Service
you will
Aduro Cloud
so
EN
51

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H5 and is the answer not in the manual?

Questions and answers

Related Manuals for ADURO H5

Summary of Contents for ADURO H5

  • Page 1 Congratulations on your new Aduro H5 Stove! To get the best possible experience and benefit from your new Aduro H5, it is important that you read the user manual thoroughly before you install your Aduro H5 and start using it. Errors or incorrect settings can cause hazardous conditions and/or poor operation.

  • Page 2: Warnings And Safety Precautions

    Performance) and DoC (Declaration of Conformity) can be downloaded at www.adurofire.com/download. Aduro H5 adheres to the following directives: EMC DIRECTIVE 2014 30 EU, LVD DIRECTIVE 2014 35 EU, 2006 42 Machinery Directive. The Wi-Fi module has been approved according to CMIIT ID: 2016DP3252. All local regulations including those referring to national and European standards must be complied when installing the stove.

  • Page 3: Technical Data

    Any flammable objects must be kept at a safe distance from the product due to fire hazard in accordance to the product manual. • Use only the fuel recommended by Aduro A/S. It is forbidden to use any liquid fuels and bioethanol fluids for lighting/ rekindle charcoal or pellets. •...
  • Page 4 2.1 Position of the hybrid stove/distance requirements The new Aduro H5 must be installed in a suitable and physically possible position. You need to be sure that the position complies with local regulations. Distance requirements will only apply if the Aduro H5 is to be...
  • Page 5 If the Aduro H5 is to be placed close to flammable material such as a wooden floor or carpet it must be placed on a non-flammable base. The floor plate should extend for at least 30 cm in front of the Aduro H5 and 15 cm on each side –...

  • Page 6: Pipe Connection

    2.2 Pipe connection Aduro H5 leaves the factory with the flue outlet mounted on the top. If you require the flue outlet on the back, remove the round circle from the rear cover at the upper rear of the stove and then exchange the exhaust connector (located on the top outlet above the stove) with the cover plate (that covers the rear outlet).
  • Page 7 2. Through the app Aduro Hybrid and the Wi-Fi module “Aduro” in the near of the stove 3. Through the app Aduro Hybrid when the Wi-Fi module is connected to the router and connected to Aduro Cloud. When your stove is connected to Aduro Cloud, it can be controlled remotely.
  • Page 8 5. Software and app are now updated to the newest version. 6. Now you are connected and able to operate using the app. App features The app has several features to choose from; heat level, desired room temperature, and timer/week program.

  • Page 9: Electrical Connection

    2.6 Electrical connection Aduro H5 comes with approx. 1.5 meter of cord with an Euro-plug, that should be connected to a 230V / 50Hz outlet. Power consumption during operation is approx. 33 watts. The cord must be positioned so it is not in contact with hot surfaces or pointed objects.
  • Page 10 • Never empty the ash pan when the Aduro H5 is warm. Embers may still be found in the ash pan for up to 24 hours after the fire has gone out. Please wait to empty the ash pan until you are sure that there are no embers in the ash.
  • Page 11 What’s more important is that the primary air is not allowed in for too long. This is to ensure optimum combustion. The Aduro-tronic control will ensure intake of primary air at the right tempo. The automatic is activated by pulling the primary damper out each...
  • Page 12 The first few times the Aduro H5 is used, there may be some smoke and unpleasant odours from the Aduro H5, which is fairly normal. This is caused by the heat-resistant paint hardening. Make sure there is sufficient ventilation during this stage.
  • Page 13 3. Keep the door approx. 1 cm ajar, until the glass is too hot to touch. Then close the door. When there are distinct, visible flames and the fire has taken hold, close the primary air intake. The control handle will get warm when the Aduro H5 is in use. Please use the glove provided when you operate the Aduro H5.
  • Page 14 ON mode automatically. 3.4 How should I use my Aduro H5? The Aduro H5 is intended for intermittent combustion. This means that each stoking should burn down to embers before new logs are added. In order to obtain the best possible combustion, you should regulate the effect/heat output with the fuel.
  • Page 15 Burning varnished wood, impregnated wood, chipboard, paper and other waste is strictly forbidden. Burning these materials will damage the environment, the Aduro H5 and your own health. Fossil fuels must not be used.
  • Page 16 If you don't do this, material damage can occur when you start using the stove again. At our website you can find more information. Go to www.adurofire.com/aduro-hybrid. 4. The chimney The optimum combustion is achieved at a constant chimney draft of 10-14 Pascal (Pa) measured in the flue pipe above the stove (when having a smoke exhauster).
  • Page 17 Aduro Hybrid has certain standard settings when it comes to the speed of the auger and the fan, and in order to achieve the most efficient / clean pellet combustion, it may sometimes be necessary for the user to adjust these settings to customize the stove to their own installation such as chimney, smoke pipe, external factors from the outside etc.
  • Page 18 You can partly compensate for an inadequate chimney draft by increasing the fan speed on the hybrid stove. This is done in the service menu of the app. 5. Control of Aduro H5 Aduro H5 has the following ALARM modes where pellet delivery must be stopped immediately: • SMOKE SENSOR: smoke sensor defect.

  • Page 19: Maintenance Of The Stove

    The development within phones and electronics continuously provides new possibilities and demands for updates and developments of the app. When you buy an Aduro Hybrid stove, updates of the app and control system are included 5 years after purchase. After this, charges may apply for updates.
  • Page 20 When you add pellets, you should brush the brazier free from of ashes and cinders. Open the door to the combustion chamber and lift the front of the brazier (the black cast iron cone with the Aduro logo). Brush the ashes and the cinders through the grate to the ash pan.

  • Page 21: Yearly Maintenance

    How do I remove the Bauart spring? All Aduro stoves are fitted with a “Bauart” safety spring. The mechanism ensures that the door of the stove closes automatically. The “Bauart” spring is only a law requirement in Germany. How to remove it: •...
  • Page 22 To allow free access to the top of the Aduro H5 and the flue pipe, remove the exhaust deflector in steel. Cleaning of the inside of the Aduro H5 and the flue pipe should be undertaken at least once a year, or more frequently if necessary, depending on how often the Aduro H5 is used.

  • Page 23: Right Of Complaint

    Aduro AS and service partners can monitor and adjust stoves on the Aduro cloud. However, it is only possible if the stove is connected to the cloud via Wi-Fi. Aduro AS can therefore not treat complaints regarding function and combustion if the stove is not online.
