2.2
GPIO connector
The on-board devices are controlled through the main board using various peripheral pins available on the GPIO
connector. The series resistors are used to isolate the pins of the GPIO connector.
UM3260 - Rev 1

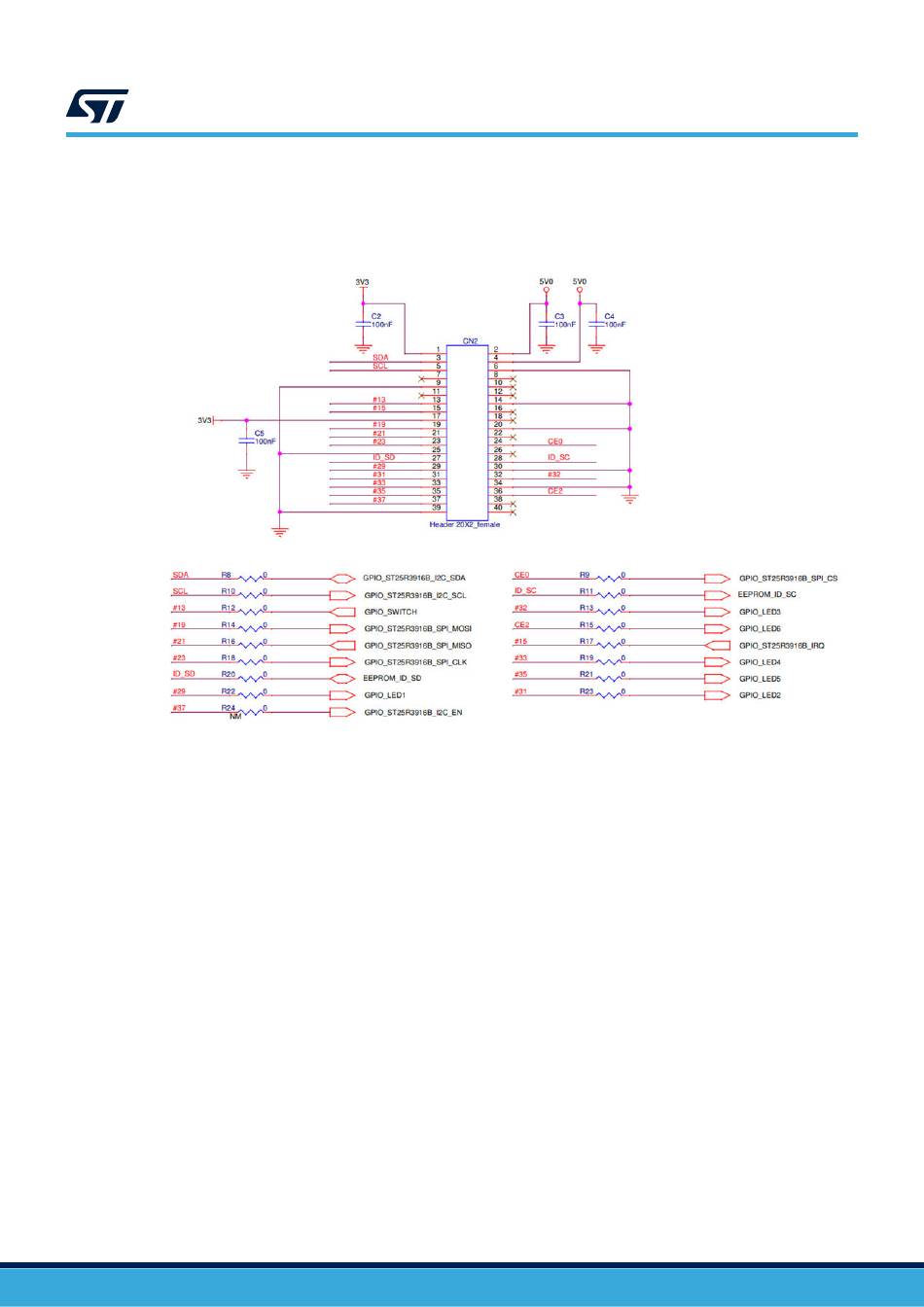

Figure 5.
GPIO connector section
UM3260
Overview
page 6/27
