Figure 14. X-Stm32Mp-Nfc08 Circuit Schematics (6 Of 6) - ST X-STM32MP-NFC08 User Manual

Figure 14.
TX
GPIO_LED6
AP2P
GPIO_LED5
TV
GPIO_LED4
TA
GPIO_LED3
TB
GPIO_LED2
3V3 TF
GPIO_LED1
PWR
Ok
R34
680R
D2
Green LED
GPIO_SWITCH

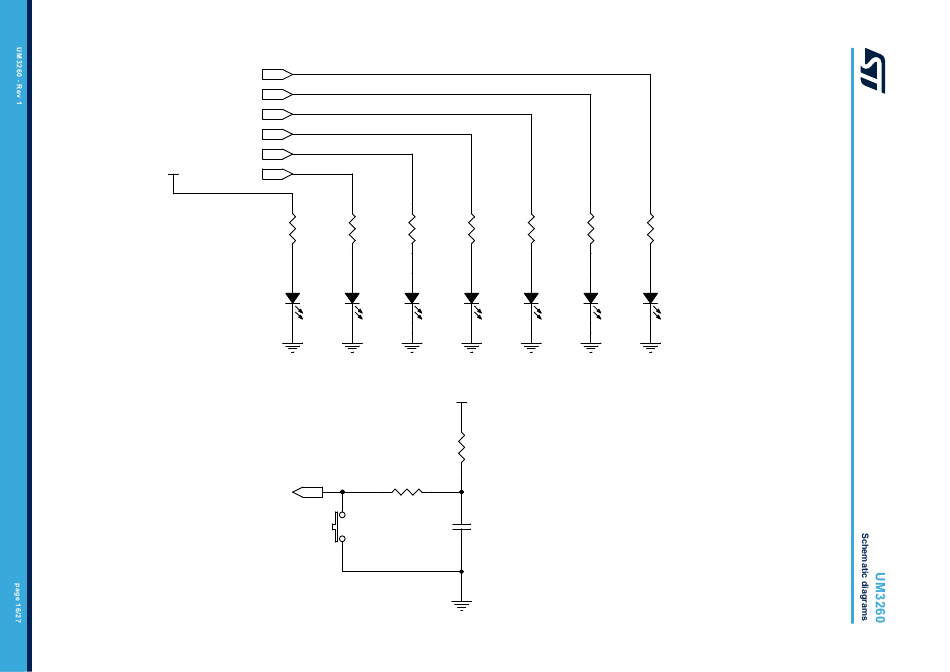

X-STM32MP-NFC08 circuit schematics (6 of 6)
R35 R36 R37 R38
1K 1K 1K 1K
D3 D4 D5 D6
Blue LED Blue LED Blue LED
3V3
R41
4.7K
R42 1K
SW1 C41
100nF
SPST SW
R39 R40
1K 1K
D7 D8
Blue LED Blue LED Blue LED
Switch
LEDs
