RF parameters are: RF power 1.6 W, operating band 13.56 MHz, channel spacing N/A.
2.4
LEDs and switches
LEDs are used as an output to detect several types of tags. The push button switch is used to take input from the
user.
UM3260 - Rev 1

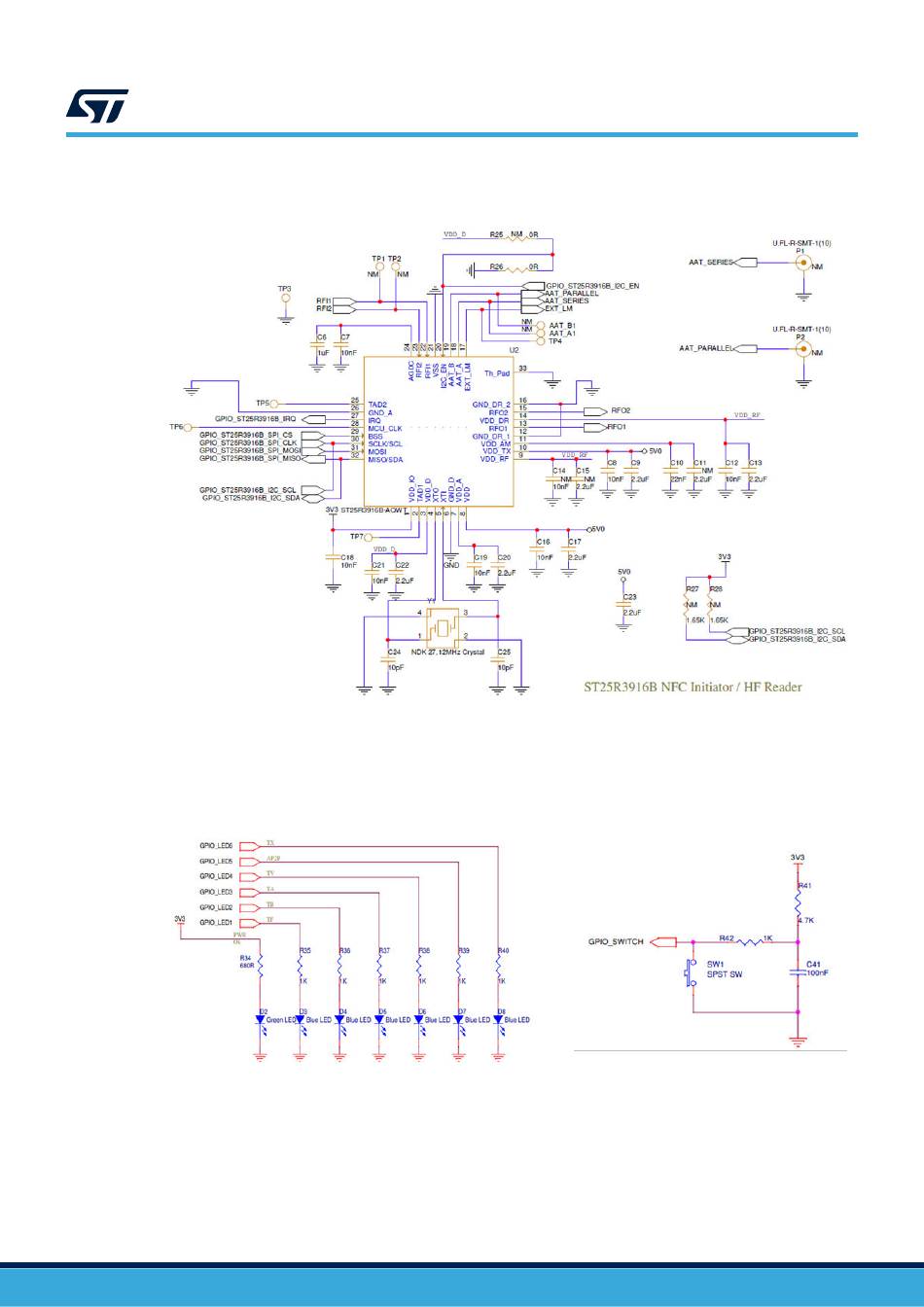

Figure 6.
ST25R3916B circuit
Figure 7.
LEDs and switch circuit
UM3260
Overview
page 8/27
