3.4 Mounting Procedure

After Installation, you are suggested to tick in the right box (□) on the system label according to the number
of battery modules.

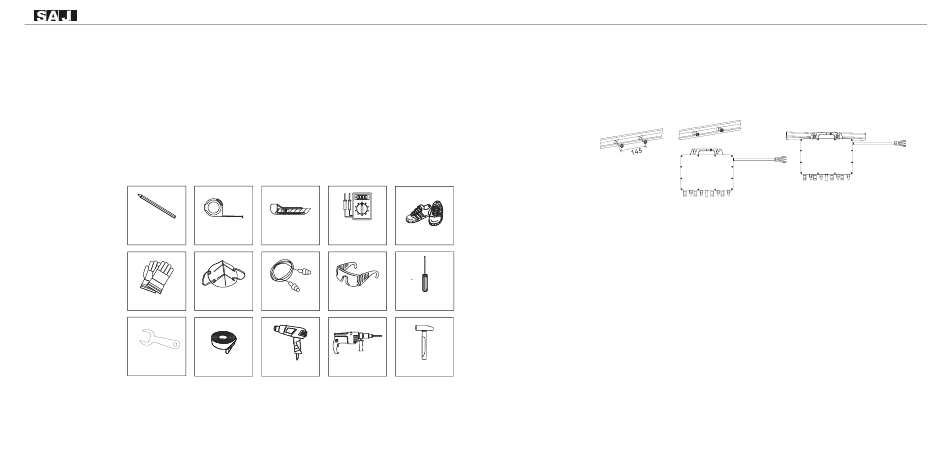

3.4.1 Installation Tools

Installation tools include but are not limited to the following recommended ones. Please use other auxiliary
tools on site if necessary.
Marker Measuring tape
Protective gloves
Wrench Heat shrink tubing
15
Multimeter
Measurement
Utility knife
range: 1100Vdc
Dust mask Earplugs Goggles
Hammer drill Drill
Heat gun
bit: Φ10
3.4.2 Mounting Procedures
Figure 3.2
Micro-inverter installation
Insulated shoes
Phillips screwdriver
Rubber mallet
Step 1: Plan and install the microinverter
Mark the position of each microinverter on the rail. Secure the screws on the marks to the rail. Face the cover
toward the photovoltaic module. Hang the microinverter on the screws and tighten the screws.
Note: If external grounding is required, use a grounding screw (M6) to install it to the grounding hole on the
microinverter handle.
M2 Series Micro-inverter
Mounting Torque: 9 N· m
