sufficient air exchange. Ensure additional ventilation, when necessary.

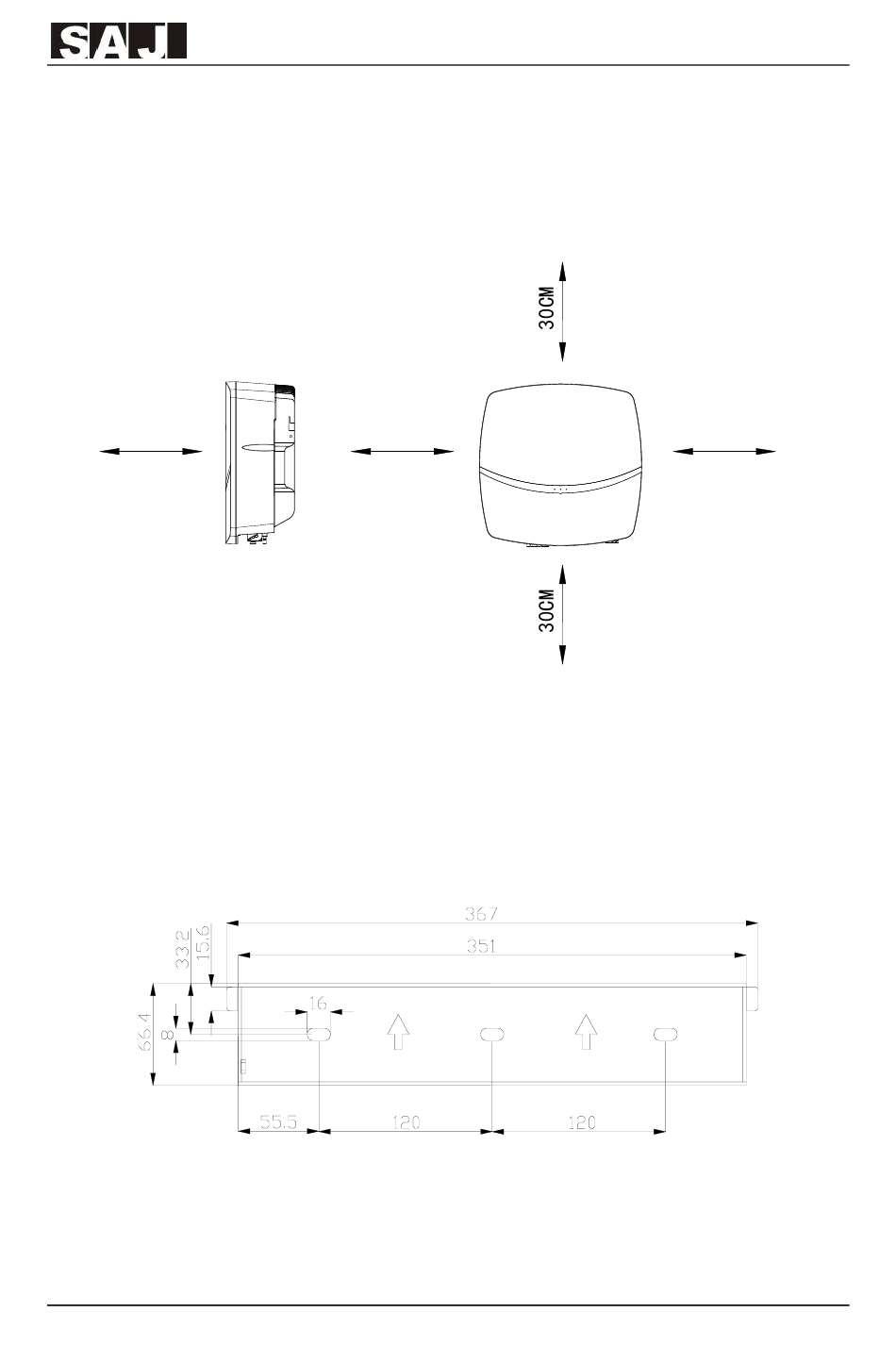

To make sure the installation spot is suitably ventilated, if multiple SAJ on-grid
solar inverters are installed together, the following safety clearance in Figure 4.2
shall be followed for proper ventilation conditions.
30CM 50CM 50CM
4.2 Installation position

4.4 Mounting Procedure

4.4.1 Mark the Positions of the Drill Holes of the Rear Panel
The mounting position should be marked as shown in Figure 4.3 and 4.4.
Figure 4.3 Dimensions of rear panel of R5-3K/4K/5K/6K/8K/9K/10K-T2-AUS
- 18 -
