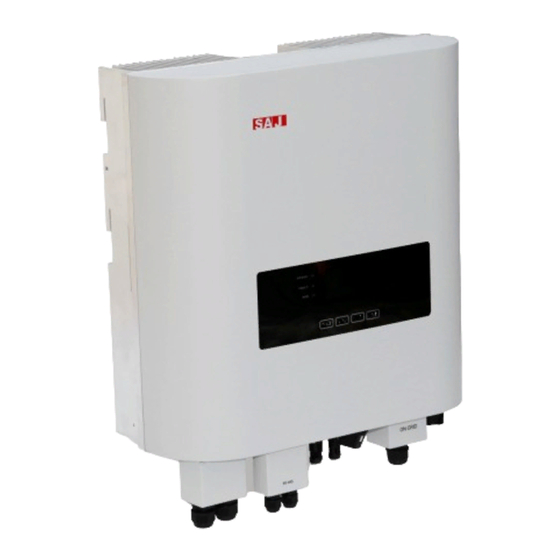

SAJ Sunfree 4K User Manual

Sunfree series hybrid solar inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Sunfree Series
User Manual
SAJ Hybrid Solar Inverter
Sunfree Series
www.saj-electric.com
- 0 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sunfree 4K and is the answer not in the manual?

Questions and answers

Related Manuals for SAJ Sunfree 4K

Summary of Contents for SAJ Sunfree 4K

  • Page 1 Sunfree Series User Manual SAJ Hybrid Solar Inverter Sunfree Series www.saj-electric.com - 0 -...

  • Page 2: Preface

    Sunfree Series Preface Thank you for choosing an SAJ hybrid solar inverter. We are pleased to provide you with first-class products and exceptional service. This manual includes information for installation, operation, maintenance, trouble shooting and safety. Please follow the instructions of this manual so that we can ensure delivery of our professional guidance and wholehearted service.

  • Page 3: Table Of Contents

    Sunfree Series Content Preface ....................- 1 - Chapter 1 Safety Precautions .............. - 4 - 1.1 Scope of Application ................- 4 - 1.2 Safety Instructions ................... - 4 - 1.3 Target Group .................... - 5 - Chapter 2 Preparation ................- 6 - 2.1 Safety Instructions ...................
  • Page 4 Chapter 7 Fault Code and Troubleshooting ........- 56 - Chapter 8 Recycling and Disposal ............ - 60 - Chapter 9 Guarantee Service ............. - 61 - Chapter 10 Contact SAJ ..............- 62 - SAJ Warranty Policy ................- 63 - Warranty Card ..................- 67 -...

  • Page 5: Chapter 1 Safety Precautions

    Sunfree Series Chapter 1 Safety Precautions 1.1 Scope of Application This User Manual describes instructions and detailed procedures for installing, operating, maintaining, and troubleshooting of the following SAJ hybrid solar inverters: Sunfree 5K, Sunfree 4K, Sunfree 5K-HC, Sunfree 4K-HC, Please keep this manual all time available in case of emergency.

  • Page 6: Target Group

    Sunfree Series 1.3 Target Group Only qualified electricians who have read and fully understood all safety regulations contained in this manual can install, maintain and repair the inverter. Operators must be aware of the high-voltage device. - 5 -...

  • Page 7: Chapter 2 Preparation

    · Do not stay close to the inverter while there are severe weather conditions including storm, lighting, etc. · Before opening the housing, the SAJ inverter must be disconnected from the grid and PV generator; you must wait at least five minutes to let the energy storage capacitors fully discharged after disconnecting from power source.
  • Page 8 Sunfree Series NOTICE ·Public utility only. ·The PV inverter is designed to feed AC power directly to the public utility power grid; do not connect AC output of the inverter to any private AC equipment. - 7 -...

  • Page 9: Explanations Of Symbols

    Sunfree Series 2.2 Explanations of Symbols Symbol Description Dangerous electrical voltage This device is directly connected to public grid, thus all work to the inverter shall only be carried out by qualified personnel. DANGER to life due to high electrical voltage! There might be residual currents in inverter because of large capacitors.
  • Page 10 Equipment standard with China Quality Inspection Center safety directive. No unauthorized perforations or modifications Any unauthorized perforations or modifications are strictly forbidden, if any defect or damage(device/person) is occurred, SAJ shall not take any responsibility for it. - 9 -...

  • Page 11: Chapter 3 Product Information

    Sunfree Series Chapter 3 Product Information 3.1 Application Scope of Products Sunfree series products are hybrid solar inverters without transformers, and the inverters are important components of energy storage systems. The Sunfree inverters change the DC generated by solar panels into AC which is in accordance with the requirements of public grid and send the AC into the grid, Reduce the load pressure of the grid.

  • Page 12: Specification For Product Model

    ③ HC represents the inverter has the function of high charge current. 3.3 Overview and Dimensions of products The dimensions of Sununo Plus series products is shown in Figure 3.2. Sunfree 4K/5K/4K-HC/5K-HC Figure 3.2 Dim sions of Sunfree series Products...

  • Page 13: Datasheet

    Sunfree Series 3.4 Datasheet Sunfree 4K/5K specification sheet MODEL Sunfree 4K Sunfree 5K DC Input Data Max. PV Array Power [W] 4200 5200 Maximum PV Array Open Circuit Voltage [v] MPPT Range @ Operating Voltage [v] 90～550 Start Voltage [v] Min.
  • Page 14 Sunfree Series Efficiency Max. Efficiency 97.60% Euro Efficiency 97.00% MPPT Adaptation Efficiency >99.5% Protection AC Short Circuit Protection Integrated Overload Protection Integrated DC Voltage High/Low Protection Integrated AC Voltage High/Low Protection Integrated AC Frequency High/Low Protection Integrated High Temperature Protection Integrated Anti-islanding protection Integrated...

  • Page 15: Chapter 4 Instructions For Installation

    4.2 Pre-installation Check 4.2.1 Check the Package Although SAJ’s inverters have surpassed stringent testing and are checked before they leave the factory, it is uncertain that the inverters may suffer damages during transportation. Please check the package for any obvious signs of damage, and if...
  • Page 16 Sunfree Series Table 4.1 Assembly Parts List Object Name Number Unit Remarks Inverter Rear Panel Piece DC Connector Pair M6×50 hex head screw Piece Expansion tube Piece M5×12 hex head screw Piece and gasket AC connector Piece H4 Splitter Piece User Manual Copy Table 4.2 Quantity of Assembly Parts and Instructions...

  • Page 17: The Determination Of The Installation Method And Position

    Sunfree Series 4.3 The Determination of the Installation Method and Position 4.3.1 Mounting Method Figure 4.1 Mounting Method (1) The equipment employs natural convection cooling, and it can be installed indoor or outdoor. (2) Please install the equipment under the guidance of Figure4.1. Vertical installation on floor level is recommended.
  • Page 18 Choose locations with sufficient air exchange. Ensure additional ventilation, when necessary. To make sure the installation spot is suitably ventilated, if multiple SAJ grid-tie hybrid solar inverters are installed same area, the following safety clearance in Figure 4.2 shall be followed for proper ventilation conditions.

  • Page 19: Mounting Procedure

    Sunfree Series 4.4 Mounting Procedure 4.4.1 Mark the Positions of the Drill Holes of the Rear Panel The mounting position should be marked as shown in Figure 4.3. Figure 4.3 Dimensions of rear panel of Sunfree inverter 4.4.2 Drill Holes and Place the Expansion Tubes According to the guides, drill 4 holes in the wall (in conformity with position marked in Figure 4.4, and then place expansion tubes in the holes using a rubber mallet.
  • Page 20 Sunfree Series 4.4.3 Mount the Screws and the Rear Panel The panels should be mounted in the mounting position by screws as shown in Figure 4.5. Figure 4.5 Mount the Rear Panel of Sunfree inverter 4.4.4 Mount the Inverter Carefully mount the inverter to the rear panel as shown in Figure 4.6, Make sure that the rear part of the equipment is closely mounted to the rear panel.

  • Page 21: Chapter 5 Electrical Connection

    Sunfree Series Chapter 5 Electrical Connection 5.1 Safety Instruction for Hot-line Job Electrical connection must only be operated on by professional technicians. Please keep in mind that the inverter is a bi-power supply equipment. Before connection, necessary protective equipment must be employed by technicians including insulating gloves, insulating shoes and safety helmet.

  • Page 22: Specifications For Electrical Interface

    Sunfree Series 5.2 Specifications for Electrical Interface Figure 5.1 Electrical Interface of Sunfree inverter Code Name Battery Plug Terminal RS485 & DRM Port RS232 /Wi-Fi Port DC Input DC Switch AC Output Backup Plug Terminal Table 5.1 Specifications for Interface - 21 -...

  • Page 23: Ac Input Wire Connection

    Sunfree Series 5.3 AC input wire Connection Caution：For safety operation and regulation compliance, it`s requested to install a breaker (600V/60A) between grid and inverter. Cable Cross-sectional area（mm²） External diameter（mm） Range Recommend 4.0-6.0 4.2~5.3 Table 5.2 Recommended Specifications of AC Cables 5.3.1 Open the waterproof cover, feed the AC cable through the AC waterproof hole.

  • Page 24: Backup Output Connection

    Sunfree Series 5.3.2 Connect the cables according to connection marks of L, N and PE. Figure 5.3 Connect the Cables 5.3.3 Secure all parts of the AC connector tightly. Figure 5.4 Screw the Connector 5.4 Backup Output Connection Cable Cross-sectional area（mm²） External diameter（mm）...
  • Page 25 Sunfree Series 5.4.1 Feed the AC cable through the AC waterproof hole. Figure 5.5 Feed cable 5.4.2 Connect the cables according to connection marks of L, N and PE. Figure 5.6 Connect cable 5.4.3 Screw all parts of the AC connector. Figure 5.7 Screw the connector - 24 -...

  • Page 26: Pv Connection

    Sunfree Series 5.4.4 Connect the AC connector to the equipment securely, ensuring the pins are connected directly. Then the connection of AC cable is completed. Figure5.8 Connect the Inverter 5.5 PV Connection Outside Diameter of the Cross-sectional Area of Cables（mm²） Cables（mm）...
  • Page 27 Sunfree Series NOTICE · Please place the connector separately after unpacking in order to avoid confusion for connection of cables. · Please connect the positive connector to the positive side of the solar panels, and connect the cathode connector to the cathode side of the solar side. Be sure to connect them in right position. Connecting Procedures: （1）Tighten the lock screws on positive and cathode connector.
  • Page 28 Sunfree Series a“click” should be heard or felt when the contact cable assembly is seated correctly. （6）Fasten the lock screws on positive and negative connectors into corresponding insulated enclosure and make them tight. （7）Connect the positive and cathode connectors into positive and negative DC input terminals of the inverter, a “click”...

  • Page 29: Battery Connection

    Sunfree Series 5.6 Battery connection Caution：For safety operation and regulation compliance, it`s requested to install a breaker (600V/150A) between battery and inverter. Outside Diameter of the Cross-sectional Area of Cables（mm²） Cables（mm） Scope Recommended Value 22-25 25~30 Table5.4 Recommended Specifications of DC Cables 5.6.1 Open the waterproof cover, then feed the battery cable through the AC waterproof hole.

  • Page 30: Communication Connection

    Sunfree Series 5.7 Communication Connection 5.7.1 Serial Port Definition Sunfree Series Hybrid Inverter has a RS232 communication port Integrated . Figure 5.15 9-Pin serial port Pin Number Description Effect DCD（Data Carrier Detect） Data carrier detection RxD（Received Data） Serial data input TxD（Transmitted Ready）...
  • Page 31 Sunfree Series 5.7.2 RJ45 Pin Port Definition. Left Right EXT SYNC DRM 1/5 DRM 2/6 NONE DRM 3/7 CANH DRM 4/8 CANL RefGen Com/DRM 0 RS485-A+ RS485-B- Table 5.6 RJ45 pin port definition 5.7.3 Open the waterproof cover, pass the prepared communication cable through each component, insert corresponding communication port, then tighten the screws.

  • Page 32: Chapter 6 Debugging Instructions

    Sunfree Series Chapter 6 Debugging Instructions 6.1 Introduction of Human-computer Interface POWER FAULT POWER FAULT Figure 6.1 Human-computer Interface Object Description Yellow LED light = Power - After the equipment is powered on, the yellow LED light will go on Red LED light = Error - The red LED light will go on when an Error occurs, it will go off automatically after Errors are resolved Green LED light = operation - The green LED light will flash when the equipment...

  • Page 33: First Run Setup

    Sunfree Series The inverter provides two buttons for inquiry of operational information and parameters, these two buttons can be used repeatedly. Name of the button Operation Description Press time shorter Return to parent menu or cancel the demand than 2 second Press time longer Cut off output to load than 2 second...
  • Page 34 Sunfree Series Operating and interface description： With user selected the edit box of Date, edit the system date by pressing ENT, and switch to the setting of M/D/Y, set the target value by pressing drop out of edit status by pressing ESC. Same operation as edit system time.
  • Page 35 Sunfree Series Operating and interface description： With user selected the edit box of Battery Type, edit the battery species by pressing ENT, switch the selected object by pressing drop out of edit status by pressing ESC; Selected the edit box of Battery Capacity, set the battery capacity, selected the edit box of Discharge, set the Battery discharge depth.
  • Page 36 Sunfree Series Operating and interface description： Users can press "▼ " or"▲ " to select the correct country and press "ENT" button to confirm the selection. While a country contain several compliances, they will occur the next to this country, as shown below： Figure 6.2.3-2 Country setting（Country with several compliances）...
  • Page 37 Sunfree Series 6.2.4 Inverter System Main Interface After the country has been set, system will reset and show main interface, as show below. ( Standby mode ). Figure 6.2.4-1 Main Interface If system running normally, main screen will show the power flowing illustration, as show below.
  • Page 38 Sunfree Series Figure 6.2.4-3 PV power and daily generation Figure 6.2.4-4 Power Trading of Grid and daily generation Figure 6.2.4-5 Load power and daily generation As above three figures, the power and daily generation, the figure show the PV, loads or trading of Grid in all day long. E-Today representative the daily power generation. ...
  • Page 39 Sunfree Series Figure 6.2.4-6 Daily generation in this month In the figure above, show the PV input all days in this month. Figure 6.2.4-7 Daily sell to Grid in this month. In the figure above, show the daily output all days in this month. Figure 6.2.4-8 Daily buy from Grid in this month In the figure above, show the daily input from Grid all days in this month.
  • Page 40 Sunfree Series Figure 6.2.4-9 Daily load consumption in this month In the figure above, show the daily output from load all days in this month. Figure 6.2.4-10 Monthly PV, trading with Grid, load consumption in this year In the figure above, as show monthly power of PV, Grid(Trading power), and load output.
  • Page 41 Sunfree Series In the figure above, it shows the annual power of PV, Grid(trading power) and load output in recent 6 years. It also show the finally accumulate power of PV, Grid, and load power in this year in the right of figure. With system interface status, user can back to system power flow main screen by pressing ESC button.
  • Page 42 Sunfree Series Figure 6.2.4-14 Main edit interface If the menu option has the second menu interface, it will appear by press the ENT button. The figure below shows the second menu of “Setting”: Figure 6.2.4-15 The second menu of “Setting” The figure below shows the second menu of “Run-Info”: Figure 6.2.4-16 The second menu of “Run-Info”...
  • Page 43 Sunfree Series The figure below shows the interface of “About” by pressing ENT. Figure 6.2.4-17 The interface of“About” The main edit interface, press or to select menu icon, as shown below: Figure 6.2.4-18 Menu icon selected By the main edit interface, press ESC button to back menu option selected status; press ENT button to enter the subinterface of main menu icon.
  • Page 44 Sunfree Series In the main edit interface, by selected inverter icon, press ENT button to show the parameter of inverter’s running information: Figure 6.2.4-20 Information of inverter’s running In main edit interface, by selected Grid icon, press ENT button to show the parameter of inverter’s output information: Figure 6.2.4-21 Information of inverter’s output In main edit interface, by selected battery icon, press ENT button to show the...
  • Page 45 Sunfree Series Figure 6.2.4-22 Information of Li-ion battery Figure 6.2.4-23 Information of Lead-acid battery In main edit interface, by selected load icon, press ENT button to show the parameter of load’s output information. Figure 6.2.4-24 Information of load’s output - 44 -...
  • Page 46 Sunfree Series Selected the “Run-Info” in menu, press ENT to the second menu, then select “Error Records”, press ENT to enter error and warning, as shown below: Figure 6.2.4-25 Error and warning Selected the “Setting” in menu, press ENT to the second menu, then select “Mode Setting”, press ENT to enter the interface of choosing running mode, as shown below: Figure 6.2.4-26 Parameter setting of Smart Home Mode...
  • Page 47 Sunfree Series Figure 6.2.4-27 Sell Energy Setup To set up “AC Charge Setup” and “AC DisCharge Setup”, if not to add parameter, the default will show no parameter, as shown below: Figure 6.2.4-28 Add AC Charge/Discharge Setup To set up AC Charge/Discharge parameter, in the interface of add “AC Charge/Discharge Setup”, press to select different edit box, press ENT to enter edit status, press ESC to out edit status.
  • Page 48 Sunfree Series In the alone parameter selected records, select “Workday” to choose working date, press ENT to select or cancel, press ESC to return to previous interface, as shown below: Figure 6.2.4-30 Select WorkDay’s interface Seting prevent revense folw, as shown below: Graph Setting Run-Info...
  • Page 49 Sunfree Series Figure 6.2.4-32 Interface of Battery parameter setup Select “Setting” in menu, press ENT button to pull out the second menu, select “System Setting” and press ENT button to enter system parameter setup interface, as shown below: Figure 6.2.4-33 Interface of system parameter setup With the interface of system parameter setup, press to select corresponding parameter, For example the option of “Language Setting”.
  • Page 50 Sunfree Series E.g select option of“Date&Time Setting”。 Figure 6.2.4-35 System date and time setup E.g select option of “Display Setting” Figure 6.2.4-36 Parameter of display setup E.g select option of “Factory Setting” Figure 6.2.4-37 Factory setting - 49 -...
  • Page 51 Sunfree Series E.g select option of “Clear Energy” Figure 6.2.4-38 Clear Energy E.g select option of “Clear Error Records” Figure 6.2.4-39 Clear Error Records E.g select option of “Grid Compliance” Figure 6.2.4-40 Grid Compliance setup - 50 -...
  • Page 52 Sunfree Series E.g select option of “Communication Set” Figure 6.2.4-41 Communication Set E.g select option of “Change Password” Figure 6.2.4-42 Change Password To change system password, enter the interface of changing system password, input a new password, then can be changing the general admin’s password. System super admin’s password is “658513”, can not be changed.
  • Page 53 Sunfree Series Figure 6.2.4-43 Setup of Beep and Led While occur error or warning in system, LCD will appear prompt box to show the information about the error or warning. As shown below: Figure 6.2.4-44 Interface of warning While occur error or warning, LCD will display the prompt box above, if system has error alarm, the prompt box will appear and system beep will work, the status light will become red all the time.
  • Page 54 Sunfree Series Figure 6.2.4-45 The prompt interface of input password In the interface of password input, press to edit the password. ENT button for entering edit status, press again to input the password. ESC button for out of edit status, select “OK” to enter next interface. ENT button pressing time longer than 2s, LCD will appear prompt box of input load, press ENT to confirm, inverter begin to enter loading status.
  • Page 55 Sunfree Series ESC button pressing time longer than 2s, LCD will appear prompt box of cutoff load, press ENT to confirm, inverter begin to out of load. As shown below: Figure 6.2.4-48 Process of cutoff load - 54 -...

  • Page 56: Monitoring Operation And Battery Manage System

    APP (please download the mobile APP from SAJ’s official website) remotely. By connecting the internet through a Ethernet module and uploading the data of the...

  • Page 57: Chapter 7 Fault Code And Troubleshooting

    Sunfree Series Chapter 7 Fault Code and Troubleshooting Fault Information Explanation Fault type Code Relay Relay Error Error GFCI Device GFCI Devices Error Error Fan Error Error Eeprom Storer Error Error Lost Com.M<->S Interior Communication Error Insulation Error Error Temp.High High Temperature Error Temp.Low...
  • Page 58 Sunfree Series Grid Loss Warn Grid Lost Alarm Grid Volt.10min Warn Average voltage of 10 minutes Alarm PV Low Warn PV Voltage Low Alarm Bat Volt.High Warn Battery voltage high Alarm Bus SoftTimeOut Bus soft start time out Error Lost Com.M<->S Lost interior communication Error GND Loss...
  • Page 59 If the voltage of the grid is in regulated range as allowed and LCD still in this error, please contact your distributor or phone SAJ. Check the set of country and check the frequency of the local grid,...
  • Page 60 Current High mentioned are in normal, please contact your distributor or phone SAJ. Check the settings of the solar panel. SAJ designer can help you. Bus Voltage High If the above mentioned are in normal, please contact your distributor or phone SAJ.

  • Page 61: Chapter 8 Recycling And Disposal

    Sunfree Series Chapter 8 Recycling and Disposal This device should not be disposed as residential waste. An Inverter that has reached the end of its life and is not required is to be returned to your dealer or you must find an approved collection and recycling facility in your area.

  • Page 62: Chapter 9 Guarantee Service

    Sunfree Series Chapter 9 Guarantee Service Please refer to the warranty card. - 61 -...

  • Page 63: Chapter 10 Contact Saj

    Sunfree Series Chapter 10 Contact SAJ Guangzhou Sanjing Electric Co., Ltd. SAJ Innovation Park, No.9, Lizhishan Road, Guangzhou Science City, Guangdong, P.R.China. Postcode: 510663 Web: http: //www.saj-electric.com Technical Support & Service Tel: +86 20 6660 0082 Fax: +86 20 6660 8589 E-mail: service@saj-electric.com...

  • Page 64: Saj Warranty Policy

    Sunfree Series inverters) should extend the warranty period in 18 months from the date of settlement or 30 months from the date of shipment from SAJ by providing the serial number of the unit and purchased receipt (whichever is shorter). You can...
  • Page 65 During the Warranty Period, SAJ covers all costs for replacing any product or parts of the product proved to be defective in design or manufacture. To claim the warranty under the warranty policy of SAJ, you need to supply us with the following information and documentation regarding the faulty inverter: 1.Product...
  • Page 66 (hardware or software) and debugging the faulty product. ■ Logistic fee: Cost of delivery, tariff and other derived expense when defective products are sent from user to SAJ or/and repaired products are sent from SAJ to user. Exclusion of Liability Any defect caused by the following circumstances will not be covered by the manufacturer’s warranty (the Dealers or Distributors are responsible and authorized...
  • Page 67 ◆ Improper use or misuse of the inverter; ◆ Insufficient ventilation of the inverter; ◆ Influence of foreign objects and force majeure (lightning, grid overvoltage, severe weather, fire, etc.) ◆ For further information on SAJ warranty regulation and reliability, please visit our website: www.saj-solar.com. - 66 -...

  • Page 68: Warranty Card

    Sunfree Series Warranty Card The installer should fill in the second form while installing the inverter. For warranty claim, please complete the below forms and send this page to SAJ attached with the Customer’s invoice. For Customer to fill in...
  • Page 69 Sunfree Series For Installer to fill in Modules Used: Modules Per String: No. of String: Installation Company: Contractor License Number: Company: City: Country: Zip: Tel: Fax: E-mail: Signature: Date: - 68 -...
  • Page 70 Sunfree Series Guangzhou Sanjing Electric CO., LTD. ADD: SAJ Innovation Park, No.9, Lizhishan Road, Science City, Guangzhou High-tech Zone, Guangdong, P.R.China Zip: 510663 Tel: +86 20 6660 0082 Fax: 020-6660 8589 Web: http: //www.saj-electric.com Edition No: V1.0 - 69 -...
