· If there are more than one installation site, please make the installation map separately and give a clear
description about the installation site.
· The row of the table corresponds the shorter side of PV module and the column of the table corresponds
the longer side of PV module. The direction on the upper left corner means the actual installation orientation.
· The micro-inverter SN label start with "T". The monitor SN label start with "R".

4.4 DC Side Cable Connection

Install the PV modules and connect the DC cable to the micro-inverter.

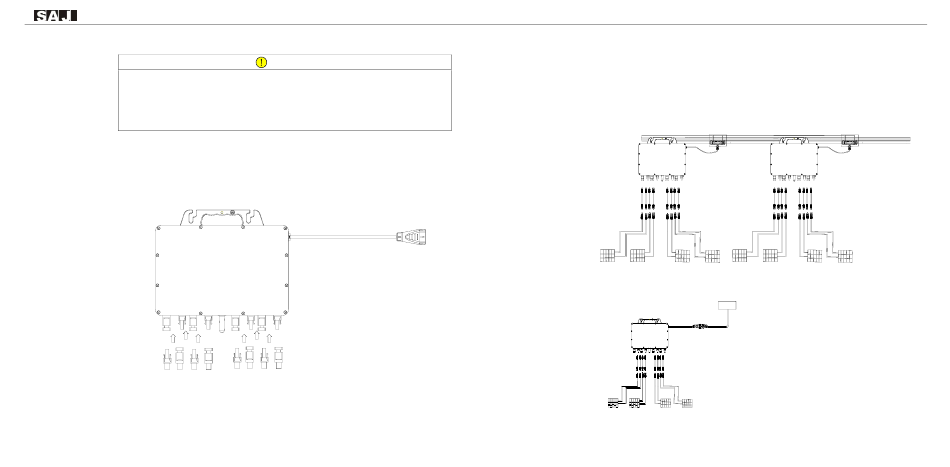

Figure 4.18
DC cable connection
25
NOTICE

4.5 PV Module Connection

Connecting the PV Modules
Install PV modules above microinverters. Connect DC output cable of PV modules to the DC input side of
microinverters.
Figure 4.19
Multi-machine PV connection
Figure 4.20
Single-machine PV connection
M2 Series Micro-inverter
Grid
26
